WIRELESS DOOR LOCK
89741RECEIVER, DOOR CONTROL
main89740-42050iALA49,ASA4#,ZSA4#..M..(GEN,SA); ASA44,ZSA42..LHD..(6FC,B)..M..GEN; AVA4#;ASA44..M..GCC;ASA42..(G,M)..GCC;ASA44..G..(GCC,GEN,SA);ALA49,ASA42,ZSA4#..G..(GEN,SA); ZSA44..LHD..(6F,B)..M201510-201608
ARGENTINA SPEC&KEY PLATE-MASTER 2 FOR SMART; ARGENTINA SPEC&POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)+POWER BACK DOOR)&KEY PLATE-MASTER 2 FOR SMART; KEY PLATE-MASTER 2 FOR SMART; POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)+POWER BACK DOOR)&KEY PLATE-MASTER 2 FOR SMART; SUDAN,S.SUDAN SPEC&KEY PLATE-MASTER 2 FOR SMART; SUDAN,S.SUDAN SPEC&POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)+POWER BACK DOOR)&KEY PLATE-MASTER 2 FOR SMART
BRAZIL SPEC&ANTI-THEFT SYSTEM-WITH(*IM & *SEH & TRACKING&BLOCKING SYS); BRAZIL SPEC&ANTI-THEFT SYSTEM-WITH(*IM & *SEH)
main89740-42190supersedes 89741-42261iASA44,ZSA42..LHD..(6FC,B)..M..GEN; ASA44..M..SA;ZSA44..LHD..M;ASA44..6F..M..GEN;ASA44,ZSA42..LHD..(6FC,B)..M..GEN;ALA49,ASA42,ZSA42..(6F,6FC,A)..M..(GEN,SA); AVA4#;ASA44..M..GCC;ASA42..(G,M)..GCC;ASA44..G..(GCC,GEN,SA);ALA49,ASA42,ZSA4#..G..(GEN,SA); ZSA42..LHD..B..M;ZSA42..(6F,A)..M..GEN;ALA49,ASA4#,ZSA44..M..(GEN,SA)201608-201812
ARGENTINA SPEC&KEY PLATE-MASTER 2 FOR SMART; ARGENTINA SPEC&POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)+POWER BACK DOOR)&KEY PLATE-MASTER 2 FOR SMART; KEY PLATE-MASTER 2 FOR SMART; POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)+POWER BACK DOOR)&KEY PLATE-MASTER 2 FOR SMART
main89741-42260supersedes 89741-42300iASA4#,ZSA4#..LHD..X; ASA44,ZSA4#..G..GEN; ASA44,ZSA42..G..GEN; ASA44,ZSA42..X..ARL; ASA44..G..GEN; ZSA42..X..ARL201212-201510
*334&WIRELESS DOOR LOCK-WITH(2 BUTTON); KENYA,ZIMBABWE,MOZAMBIQUE,MAURITIUS SPEC; RUSSIA SPEC&WIRELESS DOOR LOCK-WITH(2 BUTTON); SOUTH AFRICA SPEC; UKURAINE SPEC&WIRELESS DOOR LOCK-WITH(2 BUTTON); WIRELESS DOOR LOCK-WITH(2 BUTTON)
main89741-42261iASA4#..X..GCC;ZSA42..LHD..B..M;ZSA42..X..(GEN,SA);ZSA42..(6F,A)..M..GEN;ALA49,ASA4#,ZSA44..(M,X)..(GEN,SA)201608-201812
main89741-42300iALA49,ASA44,ZSA42..X..ARL; ASA4#,ZSA4#..LHD..(6FC,B)..M..GEN; ASA4#,ZSA42..LHD..(6FC,A)..M..GEN; ASA4#..LHD..6FC..M..GEN; ASA42,ZSA42..LHD..(6F,B)..X..GEN;ASA44,ZSA42..LHD..(6FC,B)..M..GEN;ASA44,ZSA44..LHD..(6F,6FC)..X..GEN;ASA42,ZSA44..LHD..(6FC,B)..(M,X)..GEN; ASA42..6FC..(M,X)..GEN;ASA44..LHD..6FC..M..GEN;ASA42,ZSA42..LHD..(6F,A)..X..GEN;ASA44,ZSA44..LHD..(6F,6FC)..X..GEN; ASA44..LHD..X..GEN;ASA44..LHD..6FC..M..GEN;ASA42,ZSA4#..LHD..6F..X..GEN;ASA42,ZSA42..(6FC,A)..(M,X)..GEN; ASA44..RHD..6FC..X..GEN; ZSA4#..A..M..GEN; ZSA42..RHD..B..X..GEN;ASA44..RHD..6F..M..GEN; ZSA42..RHD..X..GEN;ASA44..RHD..(M,X)..GEN;ZSA42..RHD..6F..M..GEN; ZSA42..RHD..X..GEN;ZSA42..RHD..6F..M..GEN;ASA44,ZSA44..RHD..(M,X)..GEN; ZSA44..A..M;ZSA42..A..(M,X)..GEN201510-201812
BERMUDA SPEC; BRAZIL SPEC; BRAZIL SPEC&POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)+POWER BACK DOOR); BRUNEI SPEC; CHILE SPEC; CHILE SPEC&POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)+POWER BACK DOOR); ECUADOR SPEC; ECUADOR SPEC&POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)+POWER BACK DOOR); JAMAICA SPEC; PANAMA SPEC; PANAMA SPEC&POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)+POWER BACK DOOR); SRI LANKA SPEC; TRINIDAD-TOBAGO SPEC
CHILE SPEC
TAIWAN SPEC; TAIWAN SPEC&POWER DOOR LOCK-WITH(POWER BACK DOOR); TAIWAN SPEC&POWER DOOR LOCK-WITH(POWER BACK DOOR)&WIRELESS DOOR LOCK-SMART ENTRY+POWER BACK DOOR
QATAR SPEC&POWER DOOR LOCK-WITH(POWER BACK DOOR)
JORDAN SPEC
89747BUZZER, WIRELESS DOOR LOCK
897A0RECEIVER ASSY,DOOR CONTROL & TIRE PRESSURE MONITORING SYSTEM
TAIWAN SPEC
TAIWAN SPEC&SPARE TIRE-165/80D17(REINFORCED TEMPORARY); TAIWAN SPEC&SPARE TIRE-165/80D17ST(TEMPORARY)
897B0RECEIVER ASSY, ELECTRICAL KEY & TPMS
main897B0-42010iASA4#,AVA4#,ZSA4#..LHD..G..GEN; ASA4#,ZSA4#..LHD..(6FC,B)..M..GEN; ASA4#,ZSA4#..LHD..(ATM,CVT)..M..GEN; AVA4#..M; ZSA4#..LHD..B..G;ASA4#,AVA4#..LHD..G..GEN201608-201610
PANAMA SPEC&POWER DOOR LOCK-W/(AUTO LOCK(SPEED)&HANSFREE BACK DOOR)&TIRE INFLATIONPRESS WRNG-WITH(315MHZ) W/RESET SW; PANAMA SPEC&POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)+POWER BACK DOOR)&TIRE INFLATIONPRESS WRNG-WITH(315MHZ) W/RESET SW; PANAMA SPEC&SPARE TIRE-165/80D17(REINFORCED TEMPORARY)&KEY PLATE-MASTER 2 FOR SMART&TIRE INFLATION PRESS WRNG-WITH(315MHZ) W/RESET SW; PANAMA SPEC&SPARE TIRE-165/80D17(REINFORCED TEMPORARY)&POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)+POWER BACK DOOR)&KEY PLATE-MASTER 2 FOR SMART&TIRE INFLATION PRESS WRNG-WITH(315MHZ) W/RESET SW; PANAMA SPEC&SPARE TIRE-165/80D17(REINFORCED TEMPORARY)&POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)+POWER BACK DOOR)&TIRE INFLATION PRESS WRNG-WITH(315MHZ) W/RESET SW; PANAMA SPEC&SPARE TIRE-165/80D17(REINFORCED TEMPORARY)&TIRE INFLATION PRESS WRNG-WITH(315MHZ) W/RESET SW; PANAMA SPEC&TIRE INFLATION PRESS WRNG-WITH(315MHZ) W/RESET SW; POWER DOOR LOCK-W/(AUTO LOCK(SPEED)&HANSFREE BACK DOOR)&TIRE INFLATION PRESS WRNG-WITH(315MHZ) W/RESET SW; POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)+POWER BACK DOOR)&TIRE INFLATION PRESS WRNG-WITH(315MHZ) W/RESET SW; SPARE TIRE-165/80D17(REINFORCED TEMPORARY)&KEY PLATE-MASTER 2 FOR SMART&TIRE INFLATION PRESS WRNG-WITH(315MHZ) W/RESET SW; SPARE TIRE-165/80D17(REINFORCED TEMPORARY)&POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)+POWER BACK DOOR)&KEY PLATE-MASTER 2 FOR SMART&TIRE INFLATION PRESS WRNG-WITH(315MHZ) W/RESET SW; SPARE TIRE-165/80D17(REINFORCED TEMPORARY)&POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)+POWER BACK DOOR)&TIRE INFLATION PRESS WRNG-WITH(315MHZ) W/RESET SW; SPARE TIRE-165/80D17(REINFORCED TEMPORARY)&TIRE INFLATION PRESS WRNG-WITH(315MHZ)W/RESET SW; TIRE INFLATION PRESS WRNG-WITH(315MHZ) W/RESET SW
main897B0-42011iASA4#,ZSA4#..LHD..(6FC,B)..G..GEN; ASA4#,ZSA4#..LHD..(6FC,B)..M..GEN; ASA4#,ZSA4#..LHD..(ATM,CVT)..M..GEN; ASA4#,ZSA4#..LHD..G..GEN201611-201812
PANAMA SPEC&POWER DOOR LOCK-W/(AUTO LOCK(SPEED)&HANSFREE BACK DOOR)&TIRE INFLATIONPRESS WRNG-WITH(315MHZ) W/RESET SW; PANAMA SPEC&POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)+POWER BACK DOOR)&TIRE INFLATIONPRESS WRNG-WITH(315MHZ) W/RESET SW; PANAMA SPEC&SPARE TIRE-165/80D17(REINFORCED TEMPORARY)&KEY PLATE-MASTER 2 FOR SMART&TIRE INFLATION PRESS WRNG-WITH(315MHZ) W/RESET SW; PANAMA SPEC&SPARE TIRE-165/80D17(REINFORCED TEMPORARY)&POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)+POWER BACK DOOR)&KEY PLATE-MASTER 2 FOR SMART&TIRE INFLATION PRESS WRNG-WITH(315MHZ) W/RESET SW; PANAMA SPEC&TIRE INFLATION PRESS WRNG-WITH(315MHZ) W/RESET SW; POWER DOOR LOCK-W/(AUTO LOCK(SPEED)&HANSFREE BACK DOOR)&TIRE INFLATION PRESS WRNG-WITH(315MHZ) W/RESET SW; POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)+POWER BACK DOOR)&TIRE INFLATION PRESS WRNG-WITH(315MHZ) W/RESET SW; SPARE TIRE-165/80D17(REINFORCED TEMPORARY)&KEY PLATE-MASTER 2 FOR SMART&TIRE INFLATION PRESS WRNG-WITH(315MHZ) W/RESET SW; SPARE TIRE-165/80D17(REINFORCED TEMPORARY)&POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)+POWER BACK DOOR)&KEY PLATE-MASTER 2 FOR SMART&TIRE INFLATION PRESS WRNG-WITH(315MHZ) W/RESET SW; TIRE INFLATION PRESS WRNG-WITH(315MHZ) W/RESET SW
main897B0-42040iASA4#,AVA4#,ZSA4#..LHD..G..GEN; ASA4#,ZSA4#..LHD..(6FC,B)..M..GEN; ASA4#,ZSA4#..LHD..(ATM,CVT)..M..GEN; AVA4#..M; ZSA4#..LHD..B..G;ASA4#,AVA4#..LHD..G..GEN201608-201610
KEY PLATE-MASTER 2 FOR SMART&TIRE INFLATION PRESS WRNG-WITH(315MHZ) W/RESET SW; PANAMA SPEC&KEY PLATE-MASTER 2 FOR SMART&TIRE INFLATION PRESS WRNG-WITH(315MHZ) W/RESET SW; PANAMA SPEC&POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)+POWER BACK DOOR)&KEY PLATE-MASTER 2 FOR SMART&TIRE INFLATION PRESS WRNG-WITH(315MHZ) W/RESET SW; PANAMA SPEC&POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)+POWER BACK DOOR)&TIRE INFLATIONPRESS WRNG-WITH(315MHZ) W/RESET SW; PANAMA SPEC&SPARE TIRE-GROUND TIRE&POWER DOOR LOCK-W/(AUTO LOCK(SPEED)&HANSFREE BACK DOOR)&TIRE INFLATION PRESS WRNG-WITH(315MHZ) W/RESET SW; PANAMA SPEC&SPARE TIRE-GROUND TIRE&POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)+POWER BACK DOOR)&TIRE INFLATION PRESS WRNG-WITH(315MHZ) W/RESET SW; PANAMA SPEC&SPARE TIRE-GROUND TIRE&TIRE INFLATION PRESS WRNG-WITH(315MHZ) W/RESETSW; PANAMA SPEC&TIRE INFLATION PRESS WRNG-WITH(315MHZ) W/RESET SW; POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)+POWER BACK DOOR)&KEY PLATE-MASTER 2 FOR SMART&TIRE INFLATION PRESS WRNG-WITH(315MHZ) W/RESET SW; POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)+POWER BACK DOOR)&TIRE INFLATION PRESS WRNG-WITH(315MHZ) W/RESET SW; SPARE TIRE-GROUND TIRE&POWER DOOR LOCK-W/(AUTO LOCK(SPEED)&HANSFREE BACK DOOR)&TIRE INFLATION PRESS WRNG-WITH(315MHZ) W/RESET SW; SPARE TIRE-GROUND TIRE&POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)+POWER BACK DOOR)&TIREINFLATION PRESS WRNG-WITH(315MHZ) W/RESET SW; SPARE TIRE-GROUND TIRE&TIRE INFLATION PRESS WRNG-WITH(315MHZ) W/RESET SW; TIRE INFLATION PRESS WRNG-WITH(315MHZ) W/RESET SW
PANAMA SPEC&POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)+POWER BACK DOOR)&TIRE INFLATIONPRESS WRNG-WITH(315MHZ) W/RESET SW; PANAMA SPEC&SPARE TIRE-GROUND TIRE&POWER DOOR LOCK-W/(AUTO LOCK(SPEED)&HANSFREE BACK DOOR)&TIRE INFLATION PRESS WRNG-WITH(315MHZ) W/RESET SW; PANAMA SPEC&SPARE TIRE-GROUND TIRE&POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)+POWER BACK DOOR)&TIRE INFLATION PRESS WRNG-WITH(315MHZ) W/RESET SW; PANAMA SPEC&SPARE TIRE-GROUND TIRE&TIRE INFLATION PRESS WRNG-WITH(315MHZ) W/RESETSW; PANAMA SPEC&TIRE INFLATION PRESS WRNG-WITH(315MHZ) W/RESET SW; POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)+POWER BACK DOOR)&TIRE INFLATION PRESS WRNG-WITH(315MHZ) W/RESET SW; SPARE TIRE-GROUND TIRE&POWER DOOR LOCK-W/(AUTO LOCK(SPEED)&HANSFREE BACK DOOR)&TIRE INFLATION PRESS WRNG-WITH(315MHZ) W/RESET SW; SPARE TIRE-GROUND TIRE&POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)+POWER BACK DOOR)&TIREINFLATION PRESS WRNG-WITH(315MHZ) W/RESET SW; SPARE TIRE-GROUND TIRE&TIRE INFLATION PRESS WRNG-WITH(315MHZ) W/RESET SW; TIRE INFLATION PRESS WRNG-WITH(315MHZ) W/RESET SW
TAIWAN SPEC&SPARE TIRE-GROUND TIRE&POWER DOOR LOCK-W/(AUTO LOCK(SPEED)&HANSFREE BACK DOOR)&TIRE INFLATION PRESS WRNG-WITH(315MHZ) W/RESET SW; TAIWAN SPEC&SPARE TIRE-GROUND TIRE&POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)+POWER BACK DOOR)&TIRE INFLATION PRESS WRNG-WITH(315MHZ) W/RESET SW; TAIWAN SPEC&SPARE TIRE-GROUND TIRE&TIRE INFLATION PRESS WRNG-WITH(315MHZ) W/RESETSW
TAIWAN SPEC&SPARE TIRE-GROUND TIRE&POWER DOOR LOCK-W/(AUTO LOCK(SPEED)&HANSFREE BACK DOOR)&TIRE INFLATION PRESS WRNG-WITH(315MHZ) W/RESET SW; TAIWAN SPEC&SPARE TIRE-GROUND TIRE&POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)+POWER BACK DOOR)&TIRE INFLATION PRESS WRNG-WITH(315MHZ) W/RESET SW; TAIWAN SPEC&SPARE TIRE-GROUND TIRE&TIRE INFLATION PRESS WRNG-WITH(315MHZ) W/RESETSW
TAIWAN SPEC&POWER DOOR LOCK-W/(AUTO LOCK(SPEED)&HANSFREE BACK DOOR)&TIRE INFLATIONPRESS WRNG-WITH(315MHZ) W/RESET SW; TAIWAN SPEC&POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)+POWER BACK DOOR)&TIRE INFLATIONPRESS WRNG-WITH(315MHZ) W/RESET SW; TAIWAN SPEC&TIRE INFLATION PRESS WRNG-WITH(315MHZ) W/RESET SW
TAIWAN SPEC&POWER DOOR LOCK-W/(AUTO LOCK(SPEED)&HANSFREE BACK DOOR)&TIRE INFLATIONPRESS WRNG-WITH(315MHZ) W/RESET SW; TAIWAN SPEC&POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)+POWER BACK DOOR)&TIRE INFLATIONPRESS WRNG-WITH(315MHZ) W/RESET SW; TAIWAN SPEC&TIRE INFLATION PRESS WRNG-WITH(315MHZ) W/RESET SW
89990ACOMPUTER ASSY, SMART KEY
*334&WIRELESS DOOR LOCK-WITH(3 BUTTON),P/N LABEL=8999042070; P/N LABEL=8999042070; RUSSIA SPEC&WIRELESS DOOR LOCK-WITH(3 BUTTON),P/N LABEL=8999042070; UKURAINE SPEC&WIRELESS DOOR LOCK-WITH(3 BUTTON),P/N LABEL=8999042070; WIRELESS DOOR LOCK-WITH(2 BUTTON),P/N LABEL=8999042070
*334&WIRELESS DOOR LOCK-WITH(3 BUTTON),P/N LABEL=8999042071; P/N LABEL=8999042071; RUSSIA SPEC&WIRELESS DOOR LOCK-WITH(3 BUTTON),P/N LABEL=8999042071; UKURAINE SPEC&WIRELESS DOOR LOCK-WITH(3 BUTTON),P/N LABEL=8999042071; WIRELESS DOOR LOCK-WITH(2 BUTTON),P/N LABEL=8999042071
main89990-42110iALA49,ASA4#,ZSA4#..M..(GEN,SA); ASA44..G;ASA44..M..(ARL,GCC);ALA49,ASA42,ZSA4#..G..(GEN,SA);ALA49,ASA42,ZSA42..(G,M)..(ARL,GCC)201510-201608
KEY PLATE-MASTER 2 FOR SMART
main89990-42111iALA49,ASA4#,ZSA4#..M..(GEN,SA); ASA44..G;ASA44..M..(ARL,GCC);ALA49,ASA42,ZSA4#..G..(GEN,SA);ALA49,ASA42,ZSA42..(G,M)..(ARL,GCC)201608-201707
KEY PLATE-MASTER 2 FOR SMART
JORDAN SPEC,P/N LABEL=8999042080
JORDAN SPEC,P/N LABEL=8999042081
89997ANTENNA, ELECTRICAL KEY
LUGGAGE
899A0ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1
KEY PLATE-MASTER 2 FOR SMART
899A0AANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2
KEY PLATE-MASTER 2 FOR SMART
899A0BANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.3
KEY PLATE-MASTER 2 FOR SMART
9011906915
main90119-06915
9017906274
main90179-06274

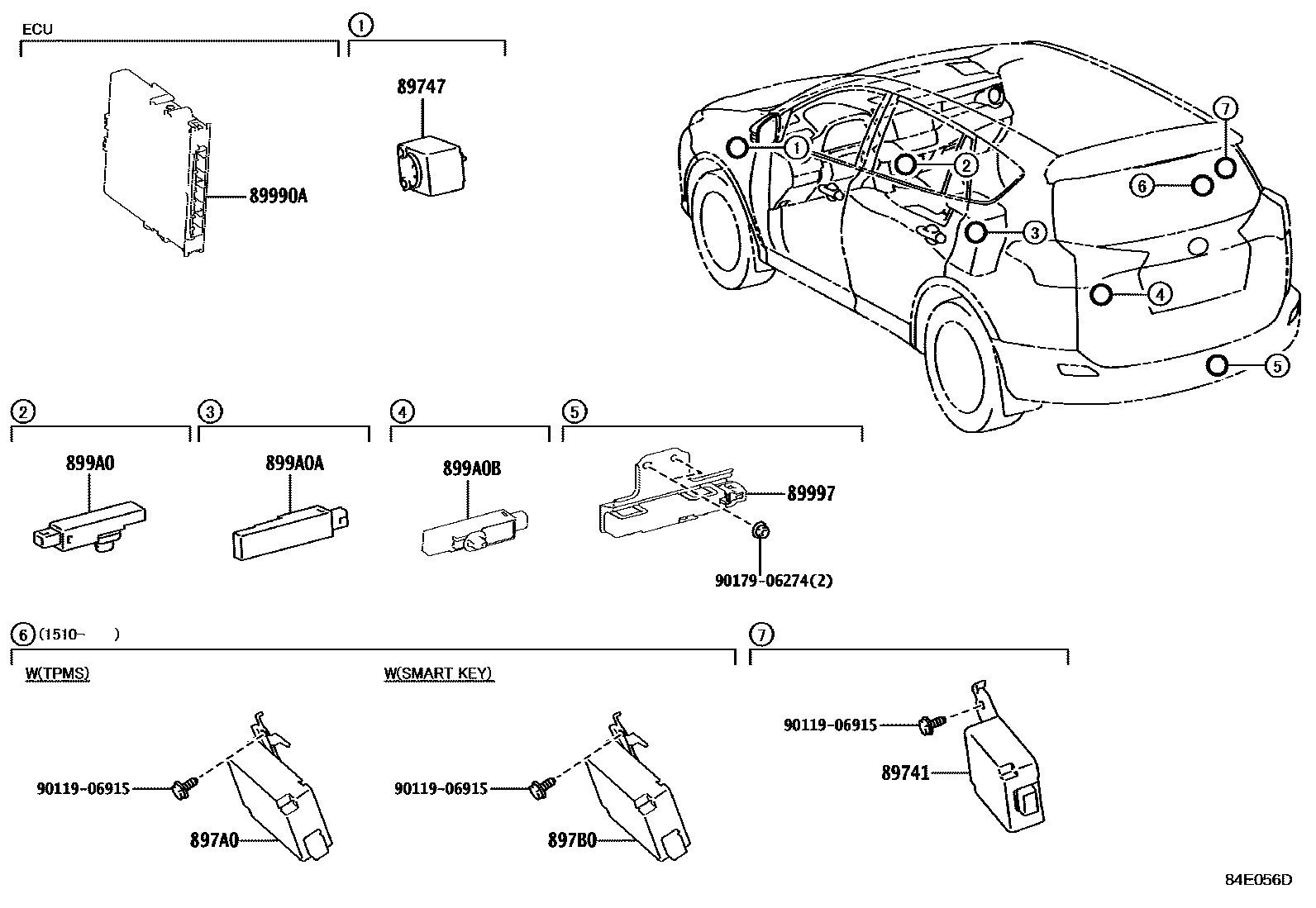

11 parts on this diagram · 2 diagrams in section
