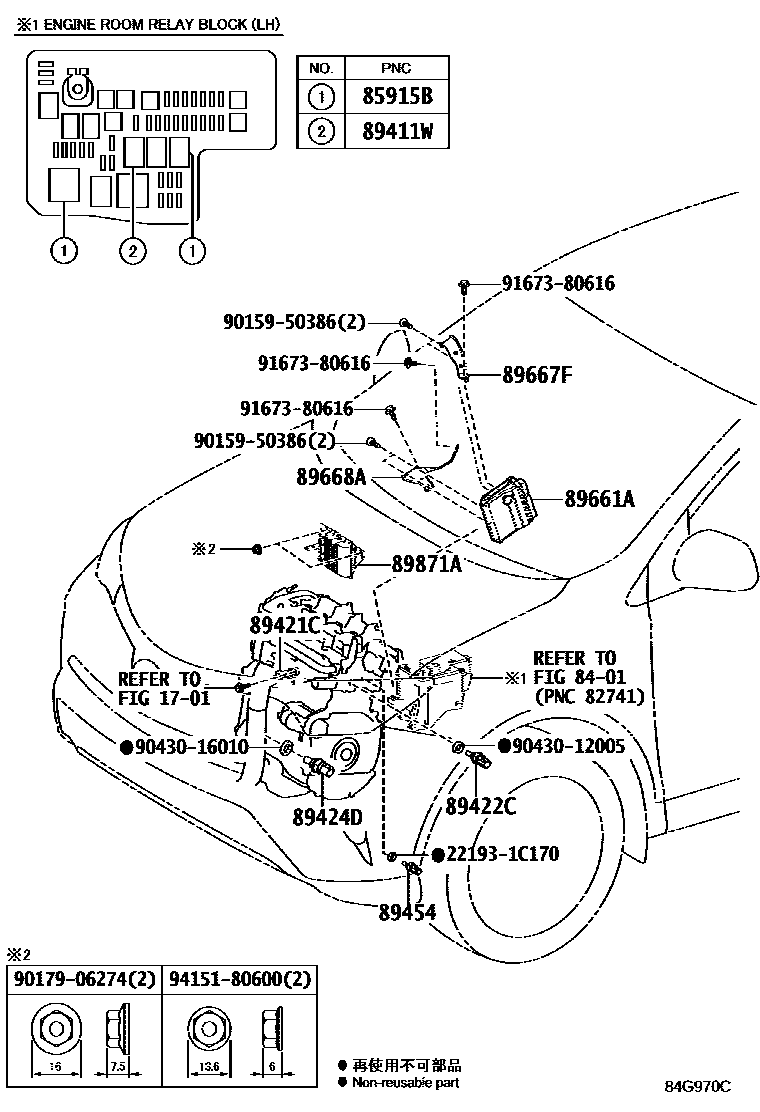

ELECTRONIC CONTROLED DIESEL (ECD)

1701MANIFOLD

→ Go to FIG 17-01

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

85915BRELAY, MAIN (FOR DIESEL TURBO)

main90987-02027×2iALA49201510-201810

89411WRELAY, ELECTRONIC DRIVER UNIT

main90987-02027iALA49201510-201810

89421CSENSOR, TURBO PRESSURE (FOR DIESEL TURBO)

main89421-20200iALA49201510-201810

89422CSENSOR, DIESEL ENGINE WATER TEMPERATURE

main89422-33030iALA49201510-201810

89424DSENSOR, INLET AIR TEMPERATURE

main89424-60010iALA49201510-201810

89454SENSOR, FUEL TEMPERATURE

main89454-60020iALA49..6FC;ALA49..6F..X;ALA49..6F..(G,M)..GEN201510-201810

89661ACOMPUTER, ENGINE CONTROL

main89661-42X30iALA49..DCRE201510-201810

main89661-42X50iALA49..6F..DCR201510-201810

main89661-42Y30iALA49..6FC..DCR201510-201810

main89661-42X20supersedes 89661-42X10iALA49..DCRL201510-201810

TOWING PACKAGE-WITH

main89661-42X40iALA49..G..DCRE201510-201608

TOWING PACKAGE-WITH

89667FBRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-42070iALA49201510-201810

89668ABRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-42070iALA49201510-201810

89871ADRIVER, INJECTOR

main89870-42070iALA49201510-201810

221931C170RING, O(FOR LEVER CONNECTING PIN)

main22193-1C170

9015950386

main90159-50386

9017906274

main90179-06274

9043012005

main90430-12005

9043016010

main90430-16010

9167380616

main91673-80616

9415180600

main94151-80600

19 parts on this diagram · 1 diagram in section
