FUEL TANK & TUBE

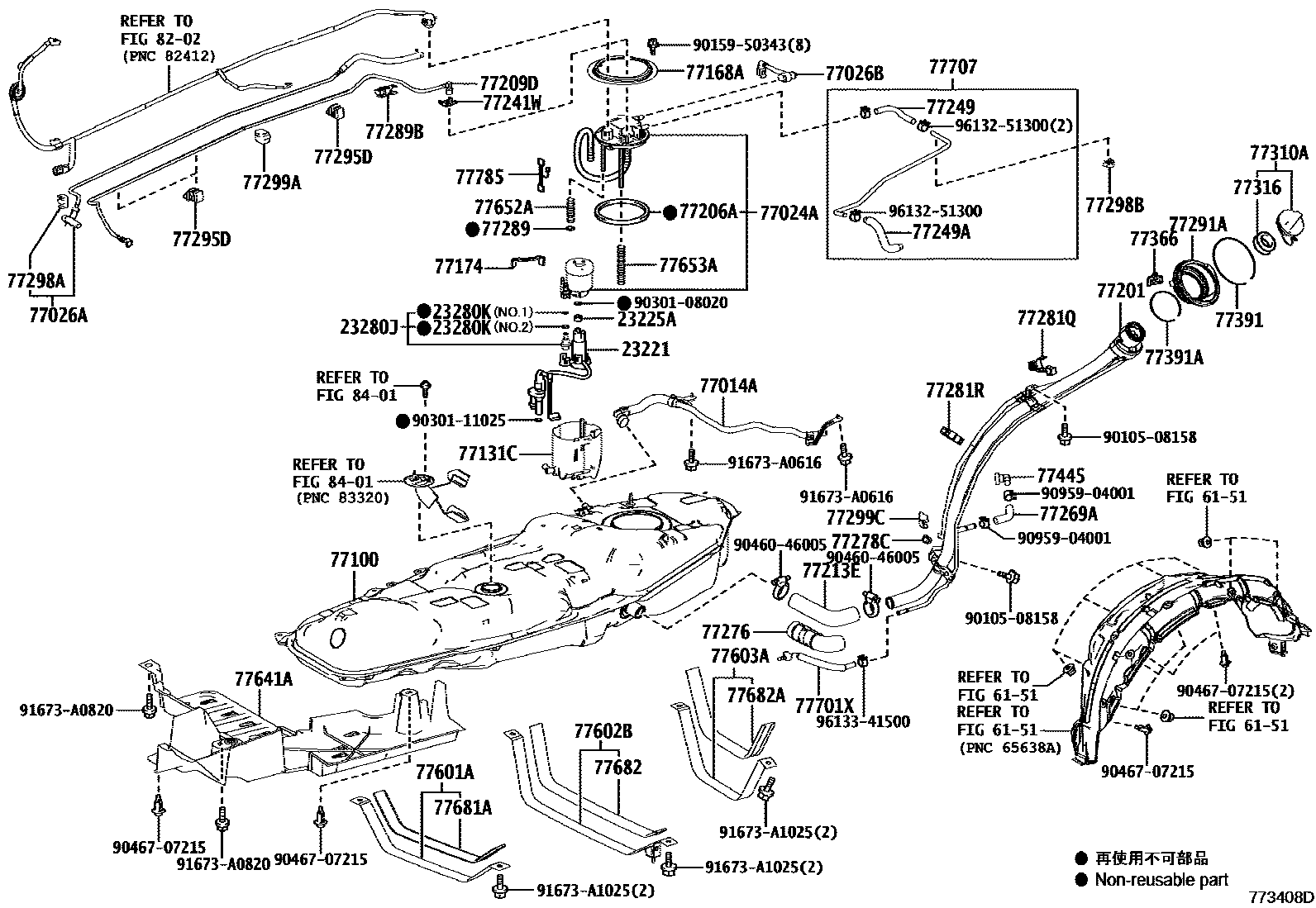

0001 1FUEL TANK 0002 1FUEL TANK 0003 1FUEL TANK(RUSSIA SPEC) 0004 1FUEL TANK 0005 1FUEL TANK 0006 1FUEL TANK 0007 1FUEL TANK 0008 1FUEL TANK 0009 1FUEL TUBE 0010 1FUEL TUBE 0011 1FUEL TUBE 0012 1FUEL TUBE 0013 1FUEL LID OPENER 0014 1FUEL LID OPENER

23221PUMP, FUEL

main23220-36011i2ARFE,3ZRFE..ASA4#,ZSA4#201212-201510

23225ASPACER, FUEL PUMP

main23225-21020i2ARFE,3ZRFE..ASA4#,ZSA4#201510-201812

23280JREGULATOR ASSY, FUEL PRESSURE

main23280-21010i2ARFE,3ZRFE..ASA4#,ZSA4#201212-201510

23280KRING, O(FOR FUEL PRESSURE REGULATOR)

main90301-04013i2ARFE,3ZRFE..ASA4#,ZSA4#201212-201510

NO.1

main90301-15024i2ARFXE..AVA4#201510-201810

NO.2

6151SIDE MEMBER

→ Go to FIG 61-51

77014ATUBE SUB-ASSY, FUEL TANK BREATHER, NO.3

main77014-42010iASA4#,ZSA4#201212-201405

main77014-42020iALA49..6FC;ALA49..6F..X201510-201810

main77014-48011iAVA4#201510-201810

77024APLATE SUB-ASSY, FUEL SUCTION

main77024-42110iAVA4#201510-201810

77026ATUBE SUB-ASSY, FUEL EVAPORATION, NO.1

main77026-42040iASA4#,ZSA4#201212-201510

main77026-48030iAVA4#201510-201810

77026BTUBE SUB-ASSY, FUEL EVAPORATION, NO.1

main77026-42030iASA4#,ZSA4#201510-201812

main77026-48020iAVA4#201510-201810

77100TANK ASSY, FUEL

main77001-42221iASA4#,ZSA4#201212-201401

main77001-42231iALA49201510-201809

main77001-42250iASA4#,ZSA4#201401-201510

main77001-42290iAVA4#201510-201810

main77001-42370iASA4#,ZSA4#201809-201812

main77001-42380iALA49201809-201810

77131CSUB-TANK, FUEL, NO.1

main77131-52082iASA4#,ZSA4#201212-201510

77168APLATE, FUEL TANK VENT TUBE SET

main77168-52020iASA4#,ZSA4#;ALA49..6F..(G,M)201510-201812

77174SUPPORT, FUEL SUCTION, NO.1

main77174-52070iAVA4#201510-201810

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-42200iASA4#,ZSA4#201212-201510

main77201-42212iALA49201510-201810

main77201-42220iASA44..G..GEN; ZSA4#..GEN;ASA44..G..GEN; ZSA42..GEN;ASA44..G..GEN201212-201310

*334; RUSSIA SPEC; UKURAINE SPEC

main77201-42221iASA44..G..GEN; ZSA4#..GEN;ASA44..G..GEN; ZSA42..GEN;ASA44..G..GEN201311-201510

*334; RUSSIA SPEC; UKURAINE SPEC

77206AGASKET (FOR FUEL TANK SUCTION TUBE)

main77169-52010iASA4#,ZSA4#201212-201510

77209DTUBE SUB-ASSY, FUEL TANK MAIN

main77209-42170iASA4#,ZSA4#201212-201510

main77209-42180iALA49201510-201810

main77209-48110iAVA4#201510-201810

77213EHOSE, FUEL TANK TO FILLER PIPE

main77213-42080iASA4#,ZSA4#201212-201510

main77213-42100iALA49201510-201810

77241WCLIP, TUBE JOINT

main77241-33011iASA4#,ZSA4#201212-201510

77249HOSE, FUEL EMISSION

main77249-42050iASA4#,ZSA4#201212-201510

main77249-48090iAVA4#201510-201810

77249AHOSE, FUEL EMISSION

main77249-42070iASA4#,ZSA4#201212-201510

77269AHOSE, FUEL TANK BREATHER

main77269-42030iASA4#,ZSA4#201212-201510

77276PROTECTOR, FUEL HOSE

main77276-42020iASA4#,ZSA4#201212-201510

77278CPROTECTOR, FUEL TANK FILLER PIPE, NO.2

main77278-42030iASA4#,ZSA4#201212-201510

77281QCLAMP, FUEL FILLER, NO.1

main77281-42030iASA4#,ZSA4#201212-201510

77281RCLAMP, FUEL FILLER PIPE, NO.2

main77281-42040iASA4#,ZSA4#201212-201510

77289HOLDER, FUEL TANK PIPE SETTING

main77289-52110iASA4#,ZSA4#201212-201510

77289BCLAMP, FUEL TUBE, NO.3

main77289-42020iALA49..6FC;ALA49..6F..X201510-201810

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-42050iALA49..6F..X;ALA49,AVA4#..6FC,A201510-201810

77295DGROMMET, FUEL TUBE

main77295-42110×3iASA4#,ZSA4#;ALA49..6F..(G,M)201510-201812

77298ACLAMP, FUEL TUBE, NO.4

main77298-42030iASA4#,ZSA4#201212-201510

main77298-48110×3iAVA4#201510-201810

77298BCLAMP, FUEL TUBE, NO.4

main77298-30170×2iASA4#,ZSA4#201510-201812

main77298-48120×2iAVA4#201510-201810

77299ACLAMP, FUEL TUBE, NO.5

main77298-48140iAVA4#201510-201810

main77299-42010iASA4#,ZSA4#;ALA49..6F..(G,M)201510-201812

77299CCLAMP (FOR FUEL FILLER PIPE)

main89639-28130iASA4#,ZSA4#201212-201510

77310ACAP ASSY, FUEL TANK

main77300-20020iALA49201510-201810

main77300-52030iASA4#,ZSA4#201212-201510

77316GASKET, FUEL TANK CAP

main77316-52040iALA49..6F..X;ALA49,AVA4#..6FC,A201510-201810

77366SPRING, FUEL FILLER OPENING LID HINGE

main77366-52010iASA4#,ZSA4#;ALA49..6F..(G,M)201510-201812

77391RING, FUEL INLET BOX

main77391-30020iASA4#,ZSA4#;ALA49..6F..(G,M)201510-201812

77391ARING, FUEL INLET BOX

main77391-12020iALA49..6F..X;ALA49,AVA4#..6FC,A201510-201810

77445CONNECTOR, FUEL TANK VENT, NO.2

main77445-42020iASA4#,ZSA4#201212-201405

main77445-42050iASA4#,ZSA4#201406-201510

77601ABAND SUB-ASSY, FUEL TANK, NO.1

main77601-42080iASA4#,ZSA4#;ALA49..6F..(G,M)201510-201812

main77601-48130iAVA4#201510-201810

main77601-42090iASA44..G..GEN; ZSA4#..GEN;ASA44..G..GEN; ZSA42..GEN;ASA44..G..GEN201212-201409

*334; RUSSIA SPEC; UKURAINE SPEC

main77601-42091iZSA4#..GEN;ASA44..G..GEN; ZSA42..GEN;ASA44..G..GEN201410-201510

*334; RUSSIA SPEC; UKURAINE SPEC

77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH

main77602-42020iALA49..6FC;ALA49..6F..X201510-201810

main77602-42030iASA44..G..GEN; ZSA4#..GEN;ASA44..G..GEN; ZSA42..GEN;ASA44..G..GEN201212-201409

*334; RUSSIA SPEC; UKURAINE SPEC

main77602-42031iZSA4#..GEN;ASA44..G..GEN; ZSA42..GEN;ASA44..G..GEN201410-201510

*334; RUSSIA SPEC; UKURAINE SPEC

77603ABAND SUB-ASSY, FUEL TANK, NO.2

main77602-48090iAVA4#201510-201810

main77603-42020iASA4#,ZSA4#201212-201510

main77603-42030iASA44..G..GEN; ZSA4#..GEN;ASA44..G..GEN; ZSA42..GEN;ASA44..G..GEN201212-201409

*334; RUSSIA SPEC; UKURAINE SPEC

main77603-42031iZSA4#..GEN;ASA44..G..GEN; ZSA42..GEN;ASA44..G..GEN201410-201510

*334; RUSSIA SPEC; UKURAINE SPEC

77641APROTECTOR, FUEL TANK, NO.1

main77641-42040iASA4#,ZSA4#201212-201510

main77641-42060iALA49..DCRL;ALA49..X..DCRE201510-201810

77652ACUSHION, FUEL TANK, NO.2

main77652-42020iASA4#,ZSA4#201510-201812

77653ACUSHION, FUEL TANK, NO.3

main77652-42030iASA4#,ZSA4#201212-201510

77681ASEAT, FUEL TANK BAND

main77681-42020iASA4#,ZSA4#201212-201510

main77681-60210iAVA4#201510-201810

77682SEAT, FUEL TANK BAND, LH

main77681-21010iASA4#,ZSA4#;ALA49..6F..(G,M)201510-201812

77682ASEAT, FUEL TANK BAND, NO.2

main77681-21010iAVA4#201510-201810

main77681-42010iASA4#,ZSA4#201212-201510

77701XHOSE SUB-ASSY, CANISTER OUTLET, NO.1

main77701-42040iASA4#,ZSA4#201212-201510

77707TUBE SUB-ASSY, CHARCOAL CANISTER OUTLET

main77707-42030iASA4#,ZSA4#201212-201510

main77707-48070iAVA4#201510-201810

77785HARNESS, FUEL PUMP

main77785-42050iASA4#,ZSA4#201212-201510

8202WIRING & CLAMP

→ Go to FIG 82-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9010508158

main90105-08158

9015950343

main90159-50343

9030108020

main90301-08020

9030111025

main90301-11025

9046046005

main90460-46005

9046707215

main90467-07215

9095904001

main90959-04001

91673A0616

main91673-A0616

91673A0820

main91673-A0820

91673A1025

main91673-A1025

9613251300

main96132-51300

9613341500

main96133-41500
