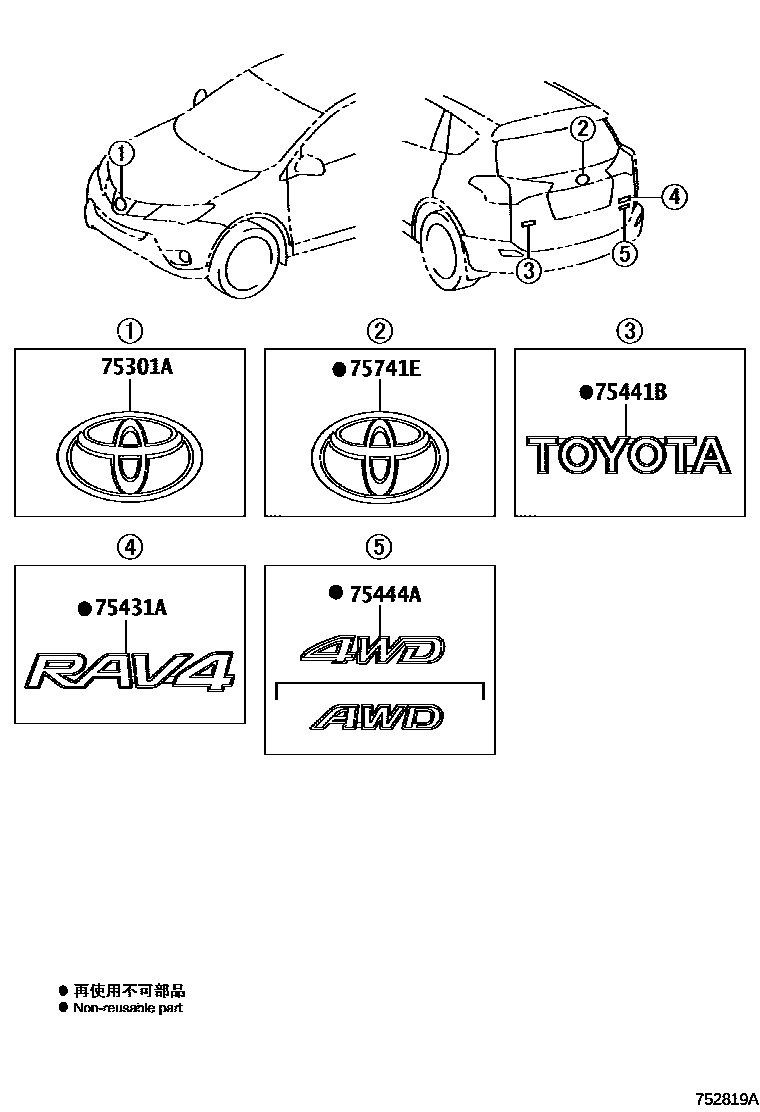

EMBLEM & NAME PLATE
75301AEMBLEM SUB-ASSY, FRONT BUMPER
main53141-33130iASA4#,ZSA42..LHD..(6FC,A)..G..GEN; ASA4#..LHD..G..GEN; ASA44,ZSA42..(6FC,A)..M..ARL; ZSA42..X..ARL;ALA49..M..DCRE;ASA44..6FC..ARL;ZSA42..A..(G,M)..ARL201608-201812
PRE-COLLISION SYSTEM-WITH; PRE-COLLISION SYSTEM-WITH&CLEARANCE & BACK SONAR-WITH(FRONT&REAR); PRE-COLLISION SYSTEM-WITH&FRONT BUMPER-WITH(2TONE COLOR); PRE-COLLISION SYSTEM-WITH&HEAD LAMP CLEANER-WITH&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)
PRE-COLLISION SYSTEM-WITH&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)
main53141-42020iASA4#,ZSA42..LHD..(6FC,A)..G..GEN; ASA4#..LHD..G..GEN; ASA44..6FC..(G,M)..ARL;ALA49,ZSA42..(G,M)..ARL201510-201608
PRE-COLLISION SYSTEM-WITH; PRE-COLLISION SYSTEM-WITH&CLEARANCE & BACK SONAR-WITH(FRONT&REAR); PRE-COLLISION SYSTEM-WITH&HEAD LAMP CLEANER-WITH&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)
PRE-COLLISION SYSTEM-WITH&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)
RUSSIA SPEC; RUSSIA SPEC&FRONT FOG LAMP-WITH; RUSSIA SPEC&FRONT FOG LAMP-WITH&AIR CONDITIONER-AUTO DUAL CONTROL; RUSSIA SPEC&HEADLAMP-DISCHARGE
HEAD LAMP CLEANER-WITH; HEAD LAMP CLEANER-WITH&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)
75431AEMBLEM, BACK DOOR, NO.1
RAV4
RAV4
RAV4
RAV4,RUSSIA SPEC
75441BPLATE, BACK DOOR NAME
TOYOTA
TOYOTA
TOYOTA,RUSSIA SPEC
75444APLATE, BACK DOOR NAME, NO.4
4WD
E-FOUR
4WD
AWD; AWD,TRANSMISSION MARK-WITHOUT
AWD,AUSTRALIA SPEC; AWD,NEW ZEALAND SPEC; AWD,SOUTH AFRICA SPEC; AWD,TRANSMISSION MARK-AWD MARK
AWD,RUSSIA SPEC&TRANSMISSION MARK-AWD MARK
75741EEMBLEM, SYMBOL
main75403-42020iZSA42..M,X;ZSA42..CVT..G;ZSA44..A..(M,X);ALA49..6F..(G,M);ZSA42..6F..G..GEN;ASA4#,ZSA44..6F,6FC,B201510-201812
RUSSIA SPEC
5 parts on this diagram · 2 diagrams in section
