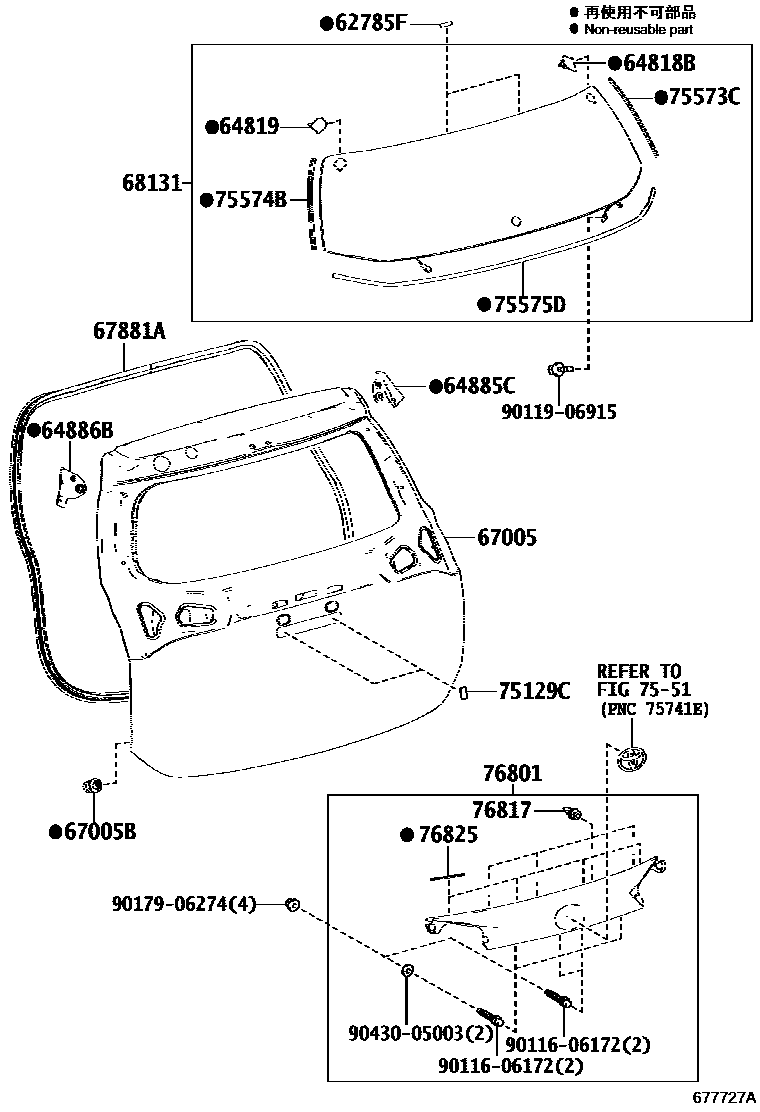

BACK DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR PANEL 0003 1DOOR TRIM

62785FSPACER, BACK DOOR GLASS

main62785-16030iALA49..6F..X;ALA49,AVA4#..6FC,A201212-201812

64818BSPACER, BACK DOOR GLASS, NO.1

main64818-42040iASA4#,ZSA4#;ALA49..6F..(G,M)201212-201812

64819SPACER, BACK WINDOW GLASS, NO.2

main64819-42040iASA4#,ZSA4#;ALA49..6F..(G,M)201212-201812

64885CCHANNEL, BACK DOOR GLASS, RH

main64885-42010iASA4#,ZSA4#;ALA49..6F..(G,M)201212-201812

64886BCHANNEL, BACK DOOR GLASS, LH

main64886-42010iASA4#,ZSA4#;ALA49..6F..(G,M)201212-201812

67005PANEL SUB-ASSY, BACK DOOR

main67005-42430iASA4#,ZSA4#201212-201504

sub67005-42431

main67005-42431iASA4#,ZSA4#201505-201510

main67005-42550iZSA44..RHD..G;ASA44..6F..M..GEN;ASA44..M..(ARL,GCC,SA);ALA49,ZSA42..(6F,6FC,A)..M;ASA42,AVA4#,ZSA44..LHD..(G,M);ALA49,ASA44,ZSA42..G..(GCC,GEN);ASA44,ZSA42..LHD..(6201510-201812

POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)+POWER BACK DOOR)

main67005-42570iALA49,ZSA42..M,X;ALA49,ZSA42..G..GEN;ASA44..(M,X)..(ARL,SA);ASA4#,AVA4#,ZSA44..GCC,GEN201510-201812

67005BCUSHION(FOR BACK DOOR PANEL)

main90541-09142iALA49..6F..X;ALA49,AVA4#..6FC,A201212-201812

67881AWEATHERSTRIP, BACK DOOR

main67881-42060iASA4#,ZSA4#201212-201812

68131GLASS, BACK DOOR

main68105-42150iZSA42..G..GEN;ASA4#,ZSA44..(6FC,A)..G..(ARL,GEN)201212-201510

*UVCEHT,T=3.1,GREEN

main68105-42150iZSA42..G..GEN;ASA4#,ZSA44..(6FC,A)..G..(ARL,GEN)201212-201510

*UVCEHT,T=3.1,GREEN,REAR SIDE GLASS-REINFORCED(GREEN)

main68105-42150iALA49..6F..X;ALA49,AVA4#..(6FC,A)..(M,X)201510-201812

REAR SIDE GLASS-REINFORCED UV-CUT(GREEN)

main68105-42160iALA49..X..GEN;ALA49,AVA4#..(6FC,A)..M201510-201812

REAR SIDE GLASS-REINFORCED(GRAY)

main68105-42160iASA4#,ZSA4#..G..(ARL,GEN)201212-201510

*EHT,T=3.1,DK.GRAY

75129CCUSHION, REAR LICENCE PLATE

main75129-30010iASA4#,ZSA4#;ALA49..6F..(G,M)201212-201812

7551

75573CMOULDING, BACK WINDOW, OUTSIDE

main75573-42050iALA49..6F..X;ALA49,AVA4#..6FC,A201212-201812

75574BMOULDING, BACK WINDOW, OUTSIDE LH

main75574-42010iASA4#,ZSA4#;ALA49..6F..(G,M)201212-201812

75575DMOULDING, BACK WINDOW, LOWER

main75575-42030iALA49..6F..X;ALA49,AVA4#..6FC,A201212-201812

76801GARNISH SUB-ASSY, BACK DOOR, OUTSIDE

main76801-42220-A0iASA4#,ZSA4#201212-201510

SUPER WHITE 2,040

main76801-42220-A1iASA4#,ZSA4#201212-201510

WHITE PEARL CS.,070

main76801-42220-B0iASA4#,ZSA4#201212-201510

SILVER ME.,1F7

main76801-42220-B1iASA4#,ZSA4#201212-201510

GRAY ME.,1G3

main76801-42220-B2iZSA4#..GEN;ASA44..G..GEN201410-201510

DK. STEEL MC.,1H2

main76801-42220-C1iASA4#,ZSA4#201212-201510

BLACK MC.,209

main76801-42220-D0iASA4#,ZSA4#201212-201510

RED M.M.,3R3

main76801-42220-E0iASA4#,ZSA4#201212-201510

BRONZE M.M.,4T3

main76801-42220-E1iASA4#,ZSA4#201311-201510

DK.BROWN ME.,4U5

main76801-42220-E2iASA4#,ZSA4#201410-201510

ORANGE ME.,4R8

main76801-42220-G0iASA4#,ZSA4#201212-201311

DK.GREEN MC.,6V4

main76801-42220-J0iASA4#,ZSA4#201212-201410

GRAYISH BLUE M.M.,8V5

main76801-42900iASA42,AVA4#,ZSA4#;ALA49,ASA44..(M,X)..SA;ALA49,ASA44..ARL,GCC,GEN201510-201608

PAINT REQ.

sub76801-42902

main76801-42900iALA49,ASA44..G..SA201510-201608

PAINT REQ.,BACK MONITOR-WITHOUT

sub76801-42902

main76801-42901iALA49,ASA42..X;ASA44,ZSA4#..LHD..X..GEN;ASA44,ZSA42..X..(ARL,GCC,SA)201510-201608

PAINT REQ.,BACK MONITOR-WITH(*DOP)

sub76801-42903

main76801-42901iAVA44..G;ZSA44..A..(G,M);ASA4#,ZSA42..LHD..(ATM,CVT)..GEN201510-201608

PAINT REQ.

sub76801-42903

main76801-42901iAVA44..G;ZSA44..A..(G,M);ASA4#,ZSA42..LHD..(ATM,CVT)..GEN201510-201608

PAINT REQ.,BACK MONITOR-WITH

sub76801-42903

main76801-42901iAVA44..G;ZSA44..A..(G,M);ASA4#,ZSA42..LHD..(ATM,CVT)..GEN201510-201608

PAINT REQ.,BACK MONITOR-WITH(*BGM)

sub76801-42903

main76801-42902iZSA44..A..G;ZSA42..6F..G..ARL201608-201812

PAINT REQ.

main76801-42902iZSA44..6F,B;ZSA44..A..(M,X);ASA42,ZSA42..M,X;ZSA42..6F..G..GEN;ALA49,ASA44,AVA4#..ARL,GEN;ALA49,ASA44..(M,X)..(GCC,SA);ASA42,ZSA42..(ATM,CVT)..G..(ARL,GEN)201608-201812

PAINT REQ.,BACK MONITOR-WITHOUT

main76801-42903iALA49,ASA4#..G..(GCC,SA)201608-201812

PAINT REQ.,BACK MONITOR-WITH

main76801-42903iALA49,ASA4#..G..(GCC,SA)201608-201812

PAINT REQ.

main76801-42903iALA49,ASA4#..G..(GCC,SA)201608-201812

PAINT REQ.,BACK MONITOR-WITH(*BGM)

main76801-42903iALA49,ASA4#..G..(GCC,SA)201608-201812

PAINT REQ.,BACK MONITOR-WITH (LESS AUDIO & CAMERA)

76817CLIP, BACK DOOR OUTSIDE GARNISH

main90467-09206iASA4#,ZSA4#201212-201510

76825PROTECTOR, BACK DOOR OUTSIDE GARNISH

main76825-42020iZSA42..M,X;ZSA42..CVT..G;ZSA44..A..(M,X);ALA49..6F..(G,M);ZSA42..6F..G..GEN;ASA4#,ZSA44..6F,6FC,B201212-201812

9011606172

main90116-06172

9011906915

main90119-06915

9017906274

main90179-06274

9043005003

main90430-05003

21 parts on this diagram · 3 diagrams in section
