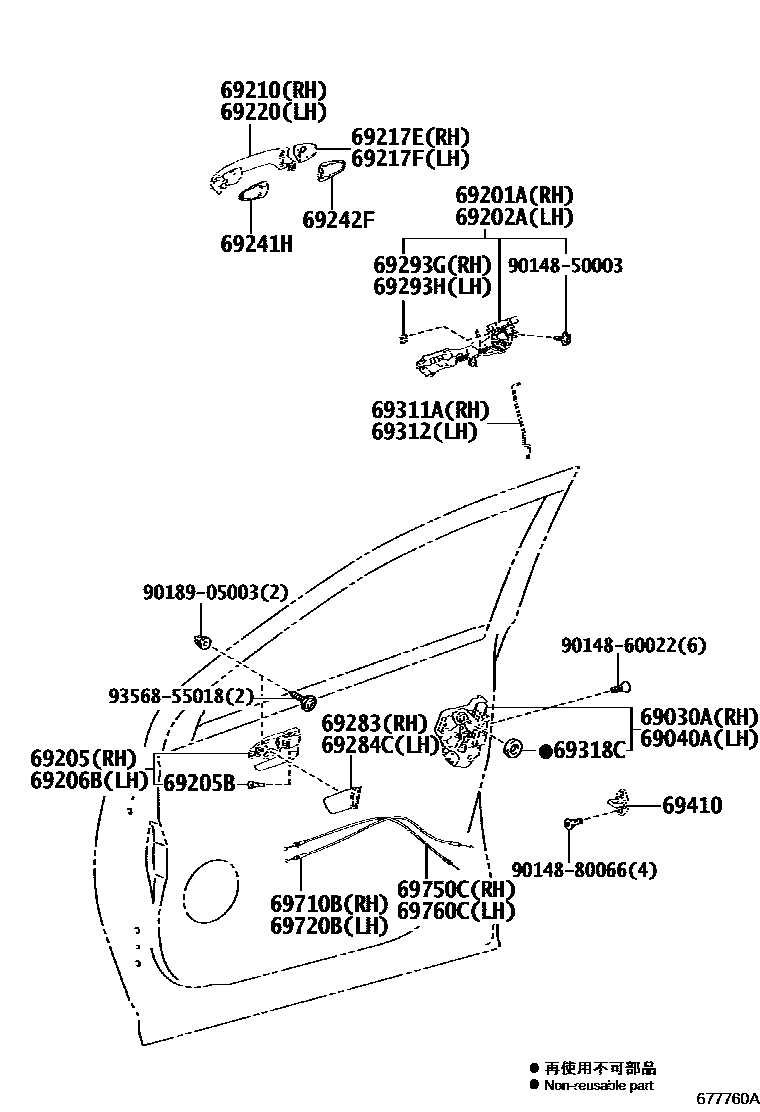

FRONT DOOR LOCK & HANDLE
69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH
KEY PLATE-MASTER 2 FOR SMART
KENYA,ZIMBABWE,MOZAMBIQUE,MAURITIUS SPEC&KEY PLATE-MASTER 2 FOR SMART
JAMAICA SPEC&KEY PLATE-MASTER 2 FOR SMART
TRINIDAD-TOBAGO SPEC&KEY PLATE-MASTER 2 FOR SMART
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & DOUBLE-LOCK & ALARM)
69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH
main69040-42230iZSA44..RHD..(M,X);ASA44,ZSA42..RHD..X;ASA44,ZSA42..RHD..(6F,6FC)..M..GEN201212-201812
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & DOUBLE-LOCK & ALARM)
KEY PLATE-MASTER 2 FOR SMART
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
DOOR INSIDE HANDLE-PLATING COLOR,BLACK,TRIM2#,4#
BLACK,TRIM2#,4#
BLACK,TRIM1#,2#,3#,4#
BLACK,TRIM2#,3#,4#
SOUTH AFRICA SPEC,BLACK,TRIM2#,4#
BLACK,TRIM1#,2#,4#
BLACK,TRIM2#,4#
BLACK,TRIM1#,2#,3#,4#
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
SOUTH AFRICA SPEC,BLACK,TRIM2#,4#
BLACK,TRIM2#,4#
BLACK,TRIM1#,2#,3#,4#
BLACK,TRIM2#,3#,4#
BLACK,TRIM1#,2#,4#
DOOR INSIDE HANDLE-PLATING COLOR,BLACK,TRIM2#,4#
BLACK,TRIM2#,4#
BLACK,TRIM1#,2#,3#,4#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
SUPER WHITE 2,040
main69210-42100-A0iASA44..G;ASA42,ZSA42..G..GEN;ALA49,ZSA44..(CVT,MTM)..G;ASA42,ZSA42..(G,M)..(ARL,GCC);ALA49,ASA44..M..(DCRE,EFI)..(ARL,GCC)201510-201812
KEY PLATE-MASTER 2 FOR SMART,SUPER WHITE 2,040
main69210-42100-A1iZSA42..LHD..B..M;ALA49,ZSA44..(CVT,MTM)..M..(GEN,SA);ASA4#,ZSA42..(6F,6FC,A)..M..(GEN,SA)201212-201812
WHITE PEARL CS.,070
main69210-42100-A1iZSA42..LHD..B..M;ALA49,ZSA44..(CVT,MTM)..M..(GEN,SA);ASA4#,ZSA42..(6F,6FC,A)..M..(GEN,SA)201510-201812
KEY PLATE-MASTER 2 FOR SMART,WHITE PEARL CS.,070
main69210-42100-B0iZSA42..LHD..B..M;ALA49,ZSA44..(CVT,MTM)..M..(GEN,SA);ASA4#,ZSA42..(6F,6FC,A)..M..(GEN,SA)201212-201812
SILVER ME.,1F7
main69210-42100-B0iZSA42..LHD..B..M;ALA49,ZSA44..(CVT,MTM)..M..(GEN,SA);ASA4#,ZSA42..(6F,6FC,A)..M..(GEN,SA)201510-201812
KEY PLATE-MASTER 2 FOR SMART,SILVER ME.,1F7
GRAY ME.,1G3
KEY PLATE-MASTER 2 FOR SMART,GRAY ME.,1G3
DK. STEEL MC.,1H2
main69210-42100-B3iZSA42..LHD..B..M;ALA49,ZSA44..(CVT,MTM)..M..(GEN,SA);ASA4#,ZSA42..(6F,6FC,A)..M..(GEN,SA)201608-201812
KEY PLATE-MASTER 2 FOR SMART,SILVER ME.,1D6
main69210-42100-B3iZSA42..LHD..B..M;ALA49,ZSA44..(CVT,MTM)..M..(GEN,SA);ASA4#,ZSA42..(6F,6FC,A)..M..(GEN,SA)201608-201812
SILVER ME.,1D6
main69210-42100-C1iASA44..G;ASA42,ZSA42..G..GEN;ALA49,ZSA44..(CVT,MTM)..G;ASA42,ZSA42..(G,M)..(ARL,GCC);ALA49,ASA44..M..(DCRE,EFI)..(ARL,GCC)201510-201812
KEY PLATE-MASTER 2 FOR SMART,BLACK MC.,209
BLACK MC.,209
BLACKISH AGEHA GF.,221
KEY PLATE-MASTER 2 FOR SMART,BLACKISH AGEHA GF.,221
main69210-42100-D0iASA44..G;ASA44..M..(ARL,GCC);ASA42,ZSA42..(G,M)..(ARL,GCC);ALA49,ASA42,ZSA4#..G..(GEN,SA);ALA49,AVA4#..(G,M)..(DCRE,DCRL,HTWC)201212-201708
RED M.M.,3R3
KEY PLATE-MASTER 2 FOR SMART,RED M.M.,3R3
KEY PLATE-MASTER 2 FOR SMART,DK.RED M.M.,3T0
DK.RED M.M.,3T0
KEY PLATE-MASTER 2 FOR SMART,RED MC.,3T3
RED MC.,3T3
BRONZE M.M.,4T3
main69210-42100-E0iZSA42..LHD..B..M;ALA49,ZSA44..(CVT,MTM)..M..(GEN,SA);ASA4#,ZSA42..(6F,6FC,A)..M..(GEN,SA)201510-201812
KEY PLATE-MASTER 2 FOR SMART,BRONZE M.M.,4T3
KEY PLATE-MASTER 2 FOR SMART,DK.BROWN ME.,4U5
DK.BROWN ME.,4U5
main69210-42100-E2iASA44..G;ASA44..M..(ARL,GCC);ASA42,ZSA42..(G,M)..(ARL,GCC);ALA49,ASA42,ZSA4#..G..(GEN,SA);ALA49,AVA4#..(G,M)..(DCRE,DCRL,HTWC)201410-201608
ORANGE ME.,4R8
KEY PLATE-MASTER 2 FOR SMART,ORANGE ME.,4R8
DK.GREEN MC.,6V4
GRAYISH BLUE M.M.,8V5
main69210-42100-J2iASA44..G;ASA42,ZSA42..G..GEN;ALA49,ZSA44..(CVT,MTM)..G;ASA42,ZSA42..(G,M)..(ARL,GCC);ALA49,ASA44..M..(DCRE,EFI)..(ARL,GCC)201510-201812
KEY PLATE-MASTER 2 FOR SMART,BLUE ME.,8X7
main69210-42100-J2iZSA42..LHD..B..M;ALA49,ZSA44..(CVT,MTM)..M..(GEN,SA);ASA4#,ZSA42..(6F,6FC,A)..M..(GEN,SA)201510-201812
BLUE ME.,8X7
WIRELESS DOOR LOCK-WITH(2 BUTTON),SUPER WHITE 2,040
SUPER WHITE 2,040
WHITE PEARL CS.,070
WIRELESS DOOR LOCK-WITH(2 BUTTON),WHITE PEARL CS.,070
WIRELESS DOOR LOCK-WITH(2 BUTTON),SILVER ME.,1F7
SILVER ME.,1F7
GRAY ME.,1G3
WIRELESS DOOR LOCK-WITH(2 BUTTON),GRAY ME.,1G3
RUSSIA SPEC&WIRELESS DOOR LOCK-WITH(3 BUTTON),DK. STEEL MC.,1H2
UKURAINE SPEC&WIRELESS DOOR LOCK-WITH(3 BUTTON),DK. STEEL MC.,1H2
*334&WIRELESS DOOR LOCK-WITH(3 BUTTON),DK. STEEL MC.,1H2
DK. STEEL MC.,1H2
WIRELESS DOOR LOCK-WITH(2 BUTTON),DK. STEEL MC.,1H2
SILVER ME.,1D6
BLACK MC.,209
WIRELESS DOOR LOCK-WITH(2 BUTTON),BLACK MC.,209
BLACKISH AGEHA GF.,221
RED M.M.,3R3
WIRELESS DOOR LOCK-WITH(2 BUTTON),RED M.M.,3R3
DK.RED M.M.,3T0
RED MC.,3T3
WIRELESS DOOR LOCK-WITH(2 BUTTON),BRONZE M.M.,4T3
BRONZE M.M.,4T3
DK.BROWN ME.,4U5
WIRELESS DOOR LOCK-WITH(2 BUTTON),DK.BROWN ME.,4U5
RUSSIA SPEC&WIRELESS DOOR LOCK-WITH(3 BUTTON),ORANGE ME.,4R8
ORANGE ME.,4R8
*334&WIRELESS DOOR LOCK-WITH(3 BUTTON),ORANGE ME.,4R8
UKURAINE SPEC&WIRELESS DOOR LOCK-WITH(3 BUTTON),ORANGE ME.,4R8
WIRELESS DOOR LOCK-WITH(2 BUTTON),ORANGE ME.,4R8
DK.GREEN MC.,6V4
WIRELESS DOOR LOCK-WITH(2 BUTTON),DK.GREEN MC.,6V4
WIRELESS DOOR LOCK-WITH(2 BUTTON),GRAYISH BLUE M.M.,8V5
GRAYISH BLUE M.M.,8V5
BLUE ME.,8X7
69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
SILVER ME.,1D6
BLACK MC.,209
BLACKISH AGEHA GF.,221
RED M.M.,3R3
DK.RED M.M.,3T0
RED MC.,3T3
BRONZE M.M.,4T3
DK.BROWN ME.,4U5
ORANGE ME.,4R8
DK.GREEN MC.,6V4
GRAYISH BLUE M.M.,8V5
BLUE ME.,8X7
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
DK. STEEL MC.,1H2
SILVER ME.,1D6
BLACK MC.,209
BLACKISH AGEHA GF.,221
RED M.M.,3R3
DK.RED M.M.,3T0
RED MC.,3T3
BRONZE M.M.,4T3
DK.BROWN ME.,4U5
ORANGE ME.,4R8
DK.GREEN MC.,6V4
GRAYISH BLUE M.M.,8V5
BLUE ME.,8X7
69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
DK. STEEL MC.,1H2
SILVER ME.,1D6
BLACK MC.,209
BLACKISH AGEHA GF.,221
RED M.M.,3R3
DK.RED M.M.,3T0
RED MC.,3T3
BRONZE M.M.,4T3
DK.BROWN ME.,4U5
ORANGE ME.,4R8
DK.GREEN MC.,6V4
GRAYISH BLUE M.M.,8V5
BLUE ME.,8X7
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
SILVER ME.,1D6
BLACK MC.,209
BLACKISH AGEHA GF.,221
RED M.M.,3R3
DK.RED M.M.,3T0
RED MC.,3T3
BRONZE M.M.,4T3
DK.BROWN ME.,4U5
ORANGE ME.,4R8
DK.GREEN MC.,6V4
GRAYISH BLUE M.M.,8V5
BLUE ME.,8X7
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
SUPER WHITE 2,040
KEY PLATE-MASTER 2 FOR SMART,SUPER WHITE 2,040
KEY PLATE-MASTER 2 FOR SMART,WHITE PEARL CS.,070
WHITE PEARL CS.,070
main69210-42100-B0iZSA42..LHD..B..M;ALA49,ZSA44..(CVT,MTM)..M..(GEN,SA);ASA4#,ZSA42..(6F,6FC,A)..M..(GEN,SA)201510-201812
KEY PLATE-MASTER 2 FOR SMART,SILVER ME.,1F7
main69210-42100-B0iZSA42..LHD..B..M;ALA49,ZSA44..(CVT,MTM)..M..(GEN,SA);ASA4#,ZSA42..(6F,6FC,A)..M..(GEN,SA)201212-201812
SILVER ME.,1F7
KEY PLATE-MASTER 2 FOR SMART,GRAY ME.,1G3
GRAY ME.,1G3
DK. STEEL MC.,1H2
SILVER ME.,1D6
main69210-42100-B3iZSA42..LHD..B..M;ALA49,ZSA44..(CVT,MTM)..M..(GEN,SA);ASA4#,ZSA42..(6F,6FC,A)..M..(GEN,SA)201608-201812
KEY PLATE-MASTER 2 FOR SMART,SILVER ME.,1D6
BLACK MC.,209
KEY PLATE-MASTER 2 FOR SMART,BLACK MC.,209
main69210-42100-C3iZSA42..LHD..B..M;ALA49,ZSA44..(CVT,MTM)..M..(GEN,SA);ASA4#,ZSA42..(6F,6FC,A)..M..(GEN,SA)201608-201812
KEY PLATE-MASTER 2 FOR SMART,BLACKISH AGEHA GF.,221
BLACKISH AGEHA GF.,221
KEY PLATE-MASTER 2 FOR SMART,RED M.M.,3R3
RED M.M.,3R3
main69210-42100-D1iASA44..G;ASA42,ZSA42..G..GEN;ALA49,ZSA44..(CVT,MTM)..G;ASA42,ZSA42..(G,M)..(ARL,GCC);ALA49,ASA44..M..(DCRE,EFI)..(ARL,GCC)201510-201812
DK.RED M.M.,3T0
KEY PLATE-MASTER 2 FOR SMART,DK.RED M.M.,3T0
RED MC.,3T3
KEY PLATE-MASTER 2 FOR SMART,RED MC.,3T3
KEY PLATE-MASTER 2 FOR SMART,BRONZE M.M.,4T3
BRONZE M.M.,4T3
KEY PLATE-MASTER 2 FOR SMART,DK.BROWN ME.,4U5
DK.BROWN ME.,4U5
main69210-42100-E2iASA44..G;ASA44..M..(ARL,GCC);ASA42,ZSA42..(G,M)..(ARL,GCC);ALA49,ASA42,ZSA4#..G..(GEN,SA);ALA49,AVA4#..(G,M)..(DCRE,DCRL,HTWC)201510-201608
KEY PLATE-MASTER 2 FOR SMART,ORANGE ME.,4R8
main69210-42100-E2iASA44..G;ASA44..M..(ARL,GCC);ASA42,ZSA42..(G,M)..(ARL,GCC);ALA49,ASA42,ZSA4#..G..(GEN,SA);ALA49,AVA4#..(G,M)..(DCRE,DCRL,HTWC)201410-201608
ORANGE ME.,4R8
DK.GREEN MC.,6V4
GRAYISH BLUE M.M.,8V5
main69210-42100-J2iZSA42..LHD..B..M;ALA49,ZSA44..(CVT,MTM)..M..(GEN,SA);ASA4#,ZSA42..(6F,6FC,A)..M..(GEN,SA)201510-201812
KEY PLATE-MASTER 2 FOR SMART,BLUE ME.,8X7
main69210-42100-J2iZSA42..LHD..B..M;ALA49,ZSA44..(CVT,MTM)..M..(GEN,SA);ASA4#,ZSA42..(6F,6FC,A)..M..(GEN,SA)201510-201812
BLUE ME.,8X7
WIRELESS DOOR LOCK-WITH(2 BUTTON),SUPER WHITE 2,040
SUPER WHITE 2,040
WHITE PEARL CS.,070
WIRELESS DOOR LOCK-WITH(2 BUTTON),WHITE PEARL CS.,070
main69211-42040-B0iASA42..X..GCC;ASA44,ZSA42..X;ZSA42..LHD..B..M;ASA44..M..(GEN,SA);ASA42,ZSA44..(M,X)..GEN;ALA49,ZSA42..(6F,A)..M..(GEN,SA)201212-201812
SILVER ME.,1F7
WIRELESS DOOR LOCK-WITH(2 BUTTON),SILVER ME.,1F7
GRAY ME.,1G3
WIRELESS DOOR LOCK-WITH(2 BUTTON),GRAY ME.,1G3
WIRELESS DOOR LOCK-WITH(2 BUTTON),DK. STEEL MC.,1H2
UKURAINE SPEC&WIRELESS DOOR LOCK-WITH(3 BUTTON),DK. STEEL MC.,1H2
*334&WIRELESS DOOR LOCK-WITH(3 BUTTON),DK. STEEL MC.,1H2
DK. STEEL MC.,1H2
RUSSIA SPEC&WIRELESS DOOR LOCK-WITH(3 BUTTON),DK. STEEL MC.,1H2
main69211-42040-B3iASA42..X..GCC;ASA44,ZSA42..X;ZSA42..LHD..B..M;ASA44..M..(GEN,SA);ASA42,ZSA44..(M,X)..GEN;ALA49,ZSA42..(6F,A)..M..(GEN,SA)201608-201812
SILVER ME.,1D6
BLACK MC.,209
WIRELESS DOOR LOCK-WITH(2 BUTTON),BLACK MC.,209
main69211-42040-C3iASA42..X..GCC;ASA44,ZSA42..X;ZSA42..LHD..B..M;ASA44..M..(GEN,SA);ASA42,ZSA44..(M,X)..GEN;ALA49,ZSA42..(6F,A)..M..(GEN,SA)201608-201812
BLACKISH AGEHA GF.,221
WIRELESS DOOR LOCK-WITH(2 BUTTON),RED M.M.,3R3
RED M.M.,3R3
DK.RED M.M.,3T0
main69211-42040-D2iASA42..X..GCC;ASA44..M..GEN;ZSA42..LHD..M;ASA44,ZSA42..X;ASA42,ZSA44..(M,X)..GEN201708-201812
RED MC.,3T3
BRONZE M.M.,4T3
WIRELESS DOOR LOCK-WITH(2 BUTTON),BRONZE M.M.,4T3
DK.BROWN ME.,4U5
WIRELESS DOOR LOCK-WITH(2 BUTTON),DK.BROWN ME.,4U5
RUSSIA SPEC&WIRELESS DOOR LOCK-WITH(3 BUTTON),ORANGE ME.,4R8
ORANGE ME.,4R8
WIRELESS DOOR LOCK-WITH(2 BUTTON),ORANGE ME.,4R8
UKURAINE SPEC&WIRELESS DOOR LOCK-WITH(3 BUTTON),ORANGE ME.,4R8
*334&WIRELESS DOOR LOCK-WITH(3 BUTTON),ORANGE ME.,4R8
DK.GREEN MC.,6V4
WIRELESS DOOR LOCK-WITH(2 BUTTON),DK.GREEN MC.,6V4
GRAYISH BLUE M.M.,8V5
WIRELESS DOOR LOCK-WITH(2 BUTTON),GRAYISH BLUE M.M.,8V5
BLUE ME.,8X7
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
69242FPAD, FRONT DOOR OUTSIDE HANDLE, REAR
69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH
BLACK,TRIM2#,4#
BLACK,TRIM2#,3#,4#
BLACK,TRIM1#,2#,3#,4#
BLACK,TRIM1#,2#,4#
69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH
BLACK,TRIM1#,2#,3#,4#
BLACK,TRIM2#,3#,4#
BLACK,TRIM2#,4#
BLACK,TRIM1#,2#,4#
69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH
69293HSNAP, FRONT DOOR OUTSIDE HANDLE, LH
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69318CSEAL, DOOR LOCK WIRING HARNESS
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH
9014850003
main90148-50003
9014860022
main90148-60022
9014880066
main90148-80066
9018905003
main90189-05003
9356855018
main93568-55018
30 parts on this diagram · 1 diagram in section
