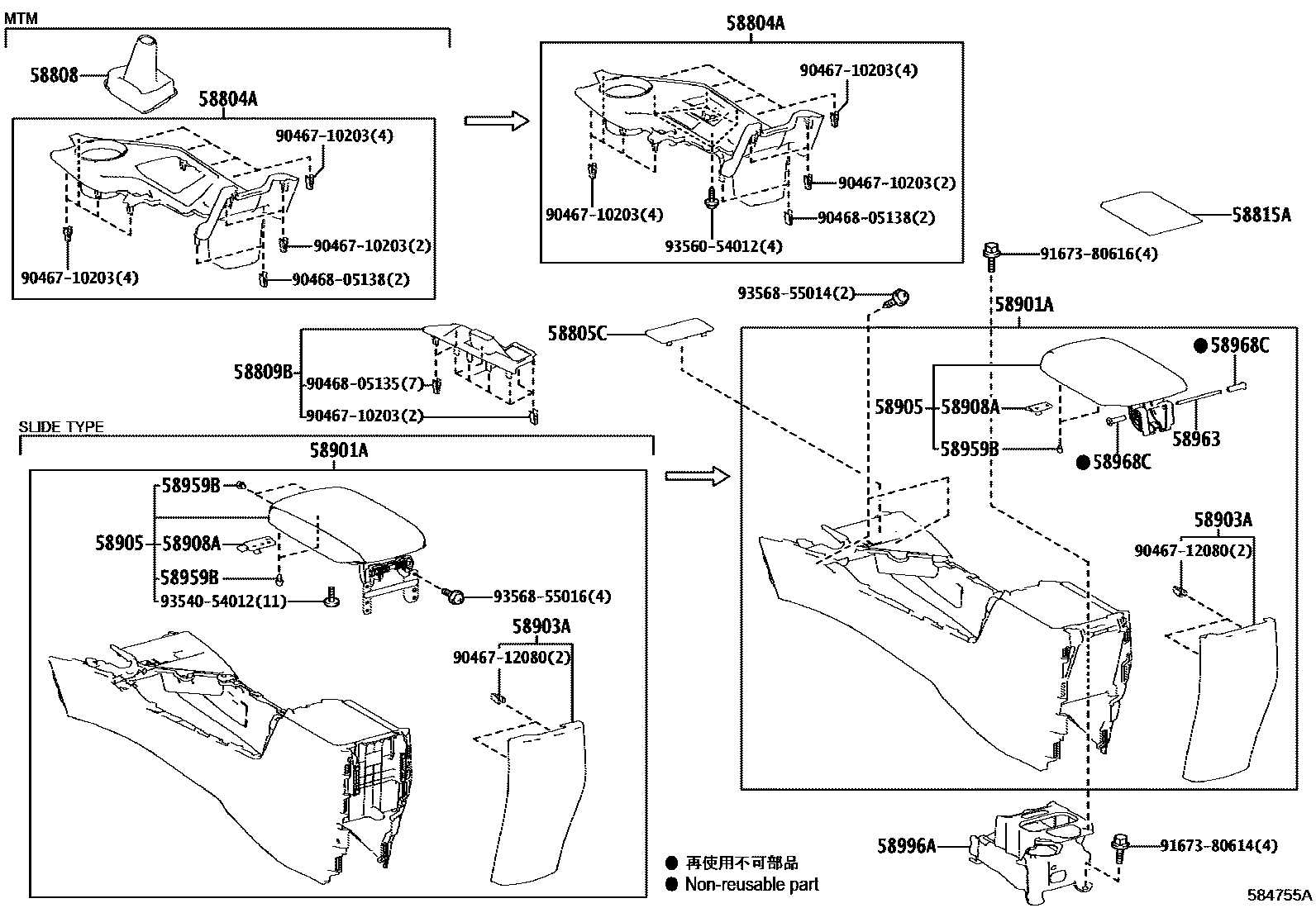

CONSOLE BOX & BRACKET

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

58804APANEL SUB-ASSY, CONSOLE, UPPER

main58804-42050-C0iASA4#..LHD..6FC..X201212-201510

BLACK,TRIM2#,4#

main58804-42080-C0iASA4#..LHD..G201212-201510

BLACK,TRIM1#,2#,3#,4#

main58804-42090-C0iZSA4#..A..X..GEN201212-201510

BLACK,TRIM2#,3#,4#

main58804-42100-C0iZSA4#..G..GEN201212-201510

BLACK,TRIM1#,2#,3#,4#

main58804-42110-C0iASA4#..LHD..6F201212-201510

BLACK,TRIM1#,2#,3#,4#

main58804-42120-C0iASA44..6FC..X..ARL201212-201510

BLACK,TRIM2#,4#

main58804-42130-C0iASA44..6FC..G..ARL201212-201510

BLACK,TRIM1#,2#,3#,4#

main58804-42140-C0iZSA42..A..X..ARL201212-201510

BLACK,TRIM2#,4#

main58804-42150-C0iZSA42..A..G..ARL201212-201510

BLACK,TRIM1#,2#,3#,4#

main58804-42160-C0iASA44,ZSA42..6F..G201212-201510

BLACK,TRIM1#,2#,3#,4#

main58804-42170-B2iASA4#..LHD..6FC..X201510-201812

SILVER,TRIM2#,4#

main58804-42180-B1iASA4#..LHD..6FC..M201510-201812

SILVER,TRIM1#,2#,3#,4#

main58804-42220-B2iALA49..6FC..X..GEN201510-201810

SILVER,TRIM2#,4#

main58804-42230-B1iALA49..6FC..G..GEN201510-201810

SILVER,TRIM1#,2#,3#,4#

main58804-42250-B1iASA4#,ZSA4#..LHD..6F..X201510-201812

SILVER,TRIM2#,4#

main58804-42270-B2iASA44..RHD..6FC..X201510-201812

SILVER,TRIM2#,4#

main58804-42280-B1iASA44..RHD..6FC..G201510-201812

SILVER,TRIM1#,2#,3#,4#

main58804-42300-B2iALA49..RHD..6FC..X201510-201810

SILVER,TRIM2#,4#

main58804-42310-B1iALA49..RHD..6FC..G201510-201810

SILVER,TRIM1#,2#,3#,4#

main58804-42330-B1iALA49,ASA44,ZSA42..RHD..6F..M201510-201812

SILVER,TRIM1#,2#,3#,4#

main58804-42350iASA44..LHD..G..GEN201410-201509

SPECIAL EDITION

main58804-42360iZSA42..A..G..GEN201410-201509

SPECIAL EDITION

main58804-42370iZSA42..LHD..6F..X201410-201509

SPECIAL EDITION

main58804-42380iZSA42..A..G..ARL201410-201509

SPECIAL EDITION

main58804-42400iASA44..LHD..6FC..X..GEN201410-201509

SPECIAL EDITION

main58804-42410iZSA4#..A..X..GEN201410-201509

SPECIAL EDITION

main58804-42420iASA44..6FC..X..ARL201410-201509

SPECIAL EDITION

main58804-42430iASA44..6FC..G..ARL201410-201509

SPECIAL EDITION

main58804-42440iZSA42..A..X..ARL201410-201509

SPECIAL EDITION

58805CPANEL SUB-ASSY, CONSOLE, UPPER REAR

main58805-42050-C0iZSA4#..6F..GEN;ASA4#,ZSA4#..LHD..G201212-201510

BLACK,TRIM1#,2#,3#,4#

main58805-42070-C0iALA49..6F..M;ASA4#,ZSA4#..M201510-201812

BLACK,TRIM1#,2#,3#,4#

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-42070-C0iASA4#..LHD..6F201212-201510

BLACK,TRIM1#,2#,3#,4#

main58808-42080-C0iASA44,ZSA42..6F..G201212-201510

BLACK,TRIM2#,3#,4#

main58808-42090-C0iALA49..6F..G..GEN201510-201707

BLACK,TRIM1#,2#,3#,4#

main58808-42100-C0iALA49,ASA44,ZSA42..RHD..6F..M201510-201812

BLACK,TRIM1#,2#,4#

58809BCOVER SUB-ASSY, PARKING BRAKE HOLE

main58809-42010-C1iZSA4#..6F..GEN;ASA44,ZSA4#..G..GEN201212-201502

BLACK,TRIM1#,2#,3#,4#

main58809-42011-C1iALA49..6F..G..GEN;ASA4#,ZSA4#..LHD..G201510-201812

BLACK,TRIM1#,2#,3#,4#

main58809-42020-C1iASA44,ZSA42..X..ARL201212-201502

BLACK,TRIM2#,3#,4#

main58809-42021-C1iASA44..RHD..M;ALA49,ZSA4#..RHD..(CVT,MTM)..M201510-201812

BLACK,TRIM1#,2#,3#,4#

58815ACARPET, CONSOLE BOX

main58815-42030iASA4#,ZSA4#201212-201510

58901ABOX SUB-ASSY, CONSOLE, REAR

main58901-42090-C0iASA44..G..GEN201212-201510

*334,BLACK,TRIM1#,2#,3#,4#

main58901-42100-C0iASA44..G..GEN201212-201506

RUSSIA SPEC&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM1#,2#,3#,4#

main58901-42101-C0iASA4#,ZSA4#..LHD..G201507-201510

BLACK,TRIM2#,3#,4#

main58901-42110-C0iASA44,ZSA42..6F..G201212-201510

BLACK,TRIM1#,2#,3#,4#

main58901-42120-C0iASA44,ZSA42..(6FC,A)..G..ARL201212-201506

BLACK,TRIM1#,2#,3#,4#

main58901-42121-C0iASA44,ZSA42..(6FC,A)..G..ARL201507-201510

BLACK,TRIM2#,3#,4#

main58901-42230-C0iASA4#,ZSA4#..LHD..(ATM,CVT)..X201510-201812

BLACK,TRIM2#,4#

main58901-42250-C0iASA4#,ZSA4#..LHD..6F..X201510-201812

BLACK,TRIM1#,2#,4#

main58901-42260-C0iASA4#,ZSA4#..LHD..(ATM,CVT)..M201510-201812

BLACK,TRIM1#,2#,3#,4#

main58901-42270-C0iALA49..RHD..6FC..X201510-201810

BLACK,TRIM2#,4#

main58901-42290-C0iALA49,ASA44,ZSA42..RHD..6F..M201510-201812

BLACK,TRIM1#,2#,4#

main58901-42300-C0iALA49..RHD..6FC..G201510-201810

BLACK,TRIM1#,2#,3#,4#

58903APANEL SUB-ASSY, CONSOLE REAR END

main58903-42010-C0iZSA4#..A..X..GEN;ASA44,ZSA42..6F..G201212-201510

*334,BLACK,TRIM1#,2#,3#,4#

main58903-42020-C0iASA44..G..GEN201212-201510

*334&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#,3#,4#

main58903-42030-C0iALA49..X201510-201810

BLACK,TRIM2#,4#

main58903-42040-C0iALA49,AVA4#..(6FC,A)..M201510-201810

BLACK,TRIM1#,2#,3#,4#

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-42040-C0iASA4#..X;ZSA42..X..ARL201212-201510

*334,BLACK,TRIM1#,2#,3#,4#

main58905-42050-C0iASA44,ZSA4#..G..GEN201212-201506

BLACK,TRIM1#,2#,3#,4#

main58905-42051-C0iASA4#,ZSA4#..(6FC,A)..G201507-201510

BLACK,TRIM2#,3#,4#

main58905-42070-C0iASA4#,ZSA4#..(ATM,CVT)..X201510-201812

BLACK,TRIM2#,4#

main58905-42080-C0iALA49,ASA4#,ZSA4#..6F..M201510-201812

BLACK,TRIM1#,2#,4#

main58905-42090-C0iASA4#,ZSA4#..(ATM,CVT)..G201510-201812

BLACK,TRIM1#,2#,3#,4#

58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58908-12080iASA44..G..GEN201212-201510

*334

main58908-42010iASA44,ZSA4#..G..GEN201212-201510

UKURAINE SPEC&SEAT COVER MATERIAL-NATURAL LEATHER

main58908-42020iALA49..6F..X;ALA49,AVA4#..6FC,A201510-201810

58959BCUSHION, CONSOLE COMPARTMENT DOOR

main58959-35010×6iALA49,AVA4#..(6FC,A)..(G,M)201510-201810

main58959-42020×2iASA44..G..GEN201212-201510

*334

main58959-60060×4iASA44,ZSA4#..G..GEN201212-201408

UKURAINE SPEC&SEAT COVER MATERIAL-NATURAL LEATHER

58963SHAFT, CONSOLE COMPARTMENT DOOR HINGE

main58963-47010iALA49..X201510-201810

58968CSHIM, CONSOLE COMPARTMENT DOOR STOPPER

main58968-42010×2iASA44..G..GEN201212-201510

*334

main58968-42030×2iASA42,ZSA44..X;ASA44,ZSA42..6F;ASA44,ZSA42..(ATM,CVT)..X;ALA49,ASA42,ZSA44..6F..(G,M)201510-201812

58996ABRACKET, CONSOLE BOX MOUNTING, NO.2

main58996-42050iASA4#,ZSA4#201212-201510

main58996-42070iASA4#,ZSA4#;ALA49..6F..(G,M)201510-201812

9046710203

main90467-10203

9046712080

main90467-12080

9046805135

main90468-05135

9046805138

main90468-05138

9167380614

main91673-80614

9167380616

main91673-80616

9354054012

main93540-54012

9356054012

main93560-54012

9356855014

main93568-55014

9356855016

main93568-55016

23 parts on this diagram · 8 diagrams in section
