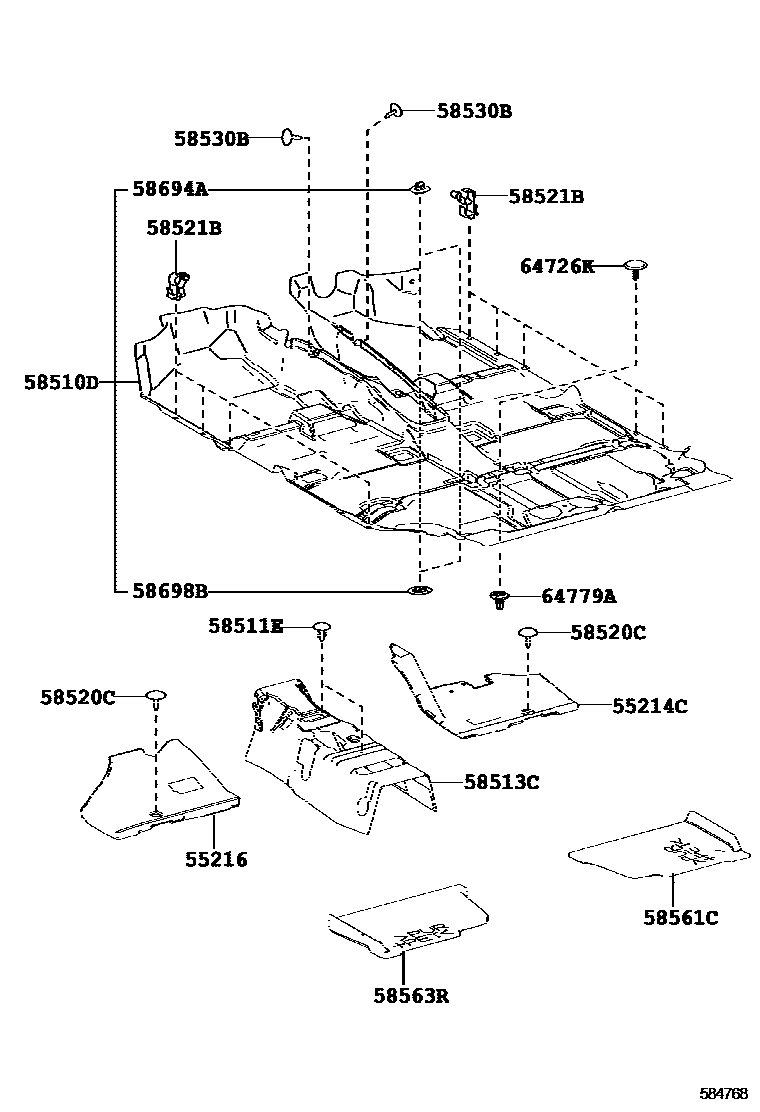

FLOOR MAT & SILENCER PAD

0001 1 0002 1 0003 1 0004 1 0005 1

55214CPAD, DASH PANEL INSULATOR, NO.2

main55214-42060iALA49..X..GEN;ALA49,AVA4#..(6FC,A)..(G,M)..GEN201212-201812

main55214-42070iASA44,ZSA42..(6FC,A)..ARL201212-201812

main55214-42080iALA49..RHD..6F..X201212-201812

55216PAD, DASH PANEL INSULATOR, NO.4

main55216-42080iASA4#,ZSA4#..LHD201212-201301

sub55216-42081

main55216-42081iASA4#,ZSA4#..LHD201302-201410

main55216-42090iASA44,ZSA42..ARL201212-201510

main55216-42100iASA4#,ZSA4#..LHD;ALA49..6F..(G,M)..GEN201410-201812

main55216-42110iASA44,ZSA4#..RHD;ALA49..RHD..6F..(G,M)201510-201812

58510DCARPET ASSY, FLOOR, FRONT

main58510-42A20-C1iASA42..X201212-201407

BLACK,TRIM2#,4#

sub58510-42C10

main58510-42A20-C1iASA42..X201212-201407

BLACK,TRIM2#,3#,4#

sub58510-42C10

main58510-42A20-C1iASA42..X201212-201407

RUSSIA SPEC,BLACK,TRIM2#,3#,4#

sub58510-42C10

main58510-42A20-C1iASA42..X201212-201407

UKURAINE SPEC,BLACK,TRIM2#,3#,4#

sub58510-42C10

main58510-42A21-C1iASA42..G;ASA44..G..GCC201410-201510

UKURAINE SPEC,BLACK,TRIM2#,4#

main58510-42A21-C1iZSA44..6F201410-201510

*334,BLACK,TRIM2#,4#

main58510-42A21-C1iZSA4#..A..X..GEN201410-201510

BLACK,TRIM1#,2#,3#,4#

main58510-42A21-C1iZSA4#..A..X..GEN201410-201510

BLACK,TRIM1#,2#,4#

main58510-42A21-C1iZSA4#..A..X..GEN201410-201510

BLACK,TRIM2#,4#

main58510-42A21-C1iZSA4#..A..X..GEN201410-201510

BLACK,TRIM2#,3#,4#

main58510-42A21-C1iZSA4#..A..X..GEN201410-201510

RUSSIA SPEC,BLACK,TRIM1#,2#,4#

main58510-42A21-C1iZSA4#..A..X..GEN201410-201510

RUSSIA SPEC,BLACK,TRIM2#,4#

main58510-42A30-C1iASA44,ZSA42..(6FC,A)..X..ARL201212-201407

BLACK,TRIM2#,4#

sub58510-42A31

main58510-42A30-C1iASA44,ZSA42..(6FC,A)..G..ARL201212-201407

BLACK,TRIM2#,3#,4#

sub58510-42A31

main58510-42A31-C1iASA44,ZSA42..(6FC,A)..G..ARL201408-201510

BLACK,TRIM2#,3#,4#

main58510-42A31-C1iASA44,ZSA42..(6FC,A)..G..ARL201408-201510

BLACK,TRIM2#,4#

main58510-42A40-C1iASA44,ZSA42..6F..G201212-201407

BLACK,TRIM2#,3#,4#

sub58510-42A41

main58510-42A40-C1iASA44,ZSA42..6F..G201212-201407

BLACK,TRIM2#,4#

sub58510-42A41

main58510-42A41-C1iASA44,ZSA42..6F..G201408-201510

BLACK,TRIM2#,3#,4#

main58510-42A41-C1iASA44,ZSA42..6F..G201408-201510

BLACK,TRIM2#,4#

main58510-42A50-C1iASA44..LHD..X201212-201407

BLACK,TRIM2#,3#,4#

sub58510-42C20

main58510-42A50-C1iZSA44..X;ZSA42..A..X..GEN201212-201407

BLACK,TRIM2#,4#

sub58510-42C20

main58510-42A50-C1iZSA44..X;ZSA42..A..X..GEN201212-201407

VSC-WITHOUT,BLACK,TRIM2#,3#,4#

sub58510-42C20

main58510-42A51-C1iASA44,ZSA4#..LHD..G201410-201510

VSC-WITHOUT,BLACK,TRIM2#,3#,4#

main58510-42A51-C1iZSA42..A..X..GEN;ASA44,ZSA44..LHD..X201410-201510

BLACK,TRIM2#,4#

main58510-42A90-C0iALA49..6F..M..GEN;ASA4#,ZSA4#..LHD..M201510-201812

BLACK,TRIM1#,2#,4#

main58510-42A90-C0iALA49..6F..M..GEN;ASA4#,ZSA4#..LHD..M201510-201812

BLACK,TRIM2#,4#

main58510-42A90-C0iASA4#,ZSA4#..LHD..X201510-201812

BLACK,TRIM1#,2#,3#,4#

main58510-42B00-C0iALA49..RHD..6FC..X201510-201812

BLACK,TRIM1#,2#,4#

main58510-42B00-C0iALA49..RHD..6FC..X201510-201812

BLACK,TRIM2#,4#

main58510-42B00-C0iALA49..RHD..6FC..X201510-201812

BLACK,TRIM1#,2#,3#,4#

main58510-42B10-C0iALA49,ASA44,ZSA42..RHD..6F..G201510-201812

BLACK,TRIM1#,2#,3#,4#

main58510-42B10-C0iALA49,ASA44,ZSA42..RHD..6F..G201510-201812

BLACK,TRIM2#,4#

main58510-42B10-C0iALA49,ASA44,ZSA42..RHD..6F..M201510-201812

BLACK,TRIM1#,2#,4#

main58510-42B40-C0iAVA4#..M201510-201810

BLACK,TRIM1#,2#,4#

main58510-42B40-C0iAVA4#..M201510-201810

BLACK,TRIM1#,2#,3#,4#

main58510-42C10-C0iZSA42..A..X..GEN201408-201410

RUSSIA SPEC,BLACK,TRIM2#,4#

main58510-42C10-C0iZSA42..A..X..GEN201408-201410

RUSSIA SPEC,BLACK,TRIM1#,2#,4#

main58510-42C10-C0iZSA42..A..X..GEN201408-201410

BLACK,TRIM2#,3#,4#

main58510-42C10-C0iZSA42..A..X..GEN201408-201410

BLACK,TRIM2#,4#

main58510-42C10-C0iZSA42..A..X..GEN201408-201410

BLACK,TRIM1#,2#,4#

main58510-42C10-C0iZSA42..A..X..GEN201408-201410

BLACK,TRIM1#,2#,3#,4#

main58510-42C10-C0iZSA4#..A..X..GEN201408-201410

UKURAINE SPEC,BLACK,TRIM2#,4#

main58510-42C20-C0iASA44,ZSA4#..LHD..G201408-201410

VSC-WITHOUT,BLACK,TRIM2#,3#,4#

main58510-42C20-C0iZSA42..A..X..GEN;ASA44,ZSA44..LHD..X201408-201410

BLACK,TRIM2#,4#

58511ECLIP(FOR FRONT FLOOR MAT)

main90467-05164-C0iASA4#,ZSA4#201212-201610

BLACK

sub90467-05164

main90467-05164-C7iAVA4#201610-201812

BLACK

sub90467-05164

58513CMAT, FLOOR, FRONT CENTER

main58513-42020iASA4#,ZSA4#201212-201510

58520CCLIP(FOR FRONT FLOOR CARPET)

main63399-26050-B2iASA4#,ZSA4#201212-201812

GRAY

58521BHOOK, FLOOR CARPET

main58521-12150iASA4#,ZSA4#201212-201812

58530BCLIP(FOR FRONT FLOOR CARPET)

main90467-09050iASA4#,ZSA4#201212-201812

58561CSILENCER, FRONT FLOOR, NO.1

main58561-42050iASA4#,ZSA4#..LHD201212-201304

sub58561-42051

main58561-42051iASA4#,ZSA4#..LHD201305-201812

main58561-42060iASA44,ZSA42..ARL201212-201304

sub58561-42061

main58561-42061iALA49..RHD..6FC;ALA49..RHD..6F..X201305-201812

58563RSILENCER, FRONT FLOOR, NO.3

main58563-42060iASA4#,ZSA4#..LHD201212-201304

sub58563-42061

main58563-42061iASA4#,ZSA4#..LHD201305-201812

main58563-42070iASA44,ZSA42..ARL201212-201304

sub58563-42071

main58563-42071iALA49..RHD..6FC;ALA49..RHD..6F..X201305-201812

58694APLATE, MAT SET, UPPER

main58694-76010iASA4#,ZSA4#201212-201408

main58694-78010iASA4#,ZSA4#201408-201812

58698BPLATE, MAT SET, LOWER

main58698-76010iASA4#,ZSA4#201212-201408

main58698-78010iASA4#,ZSA4#201408-201812

64726KCLIP, LUGGAGE TRIM, REAR

main64726-26010-B1iASA4#,ZSA4#201212-201408

DK.GRAY

main64726-26010-C1iASA4#,ZSA4#201408-201812

BLACK

64779ASTOPPER, SPARE WHEEL COVER

main64779-26010iZSA44..X;ZSA42..A..X..GEN201212-201510

RUSSIA SPEC

main64779-26010iZSA44..X;ZSA42..A..X..GEN201212-201510

UKURAINE SPEC

main64779-26010iZSA44..X;ZSA42..A..X..GEN201212-201510

VSC-WITHOUT

main64779-26010iALA49..6F..X;ALA49,AVA4#..6FC,A201510-201812

14 parts on this diagram · 5 diagrams in section
