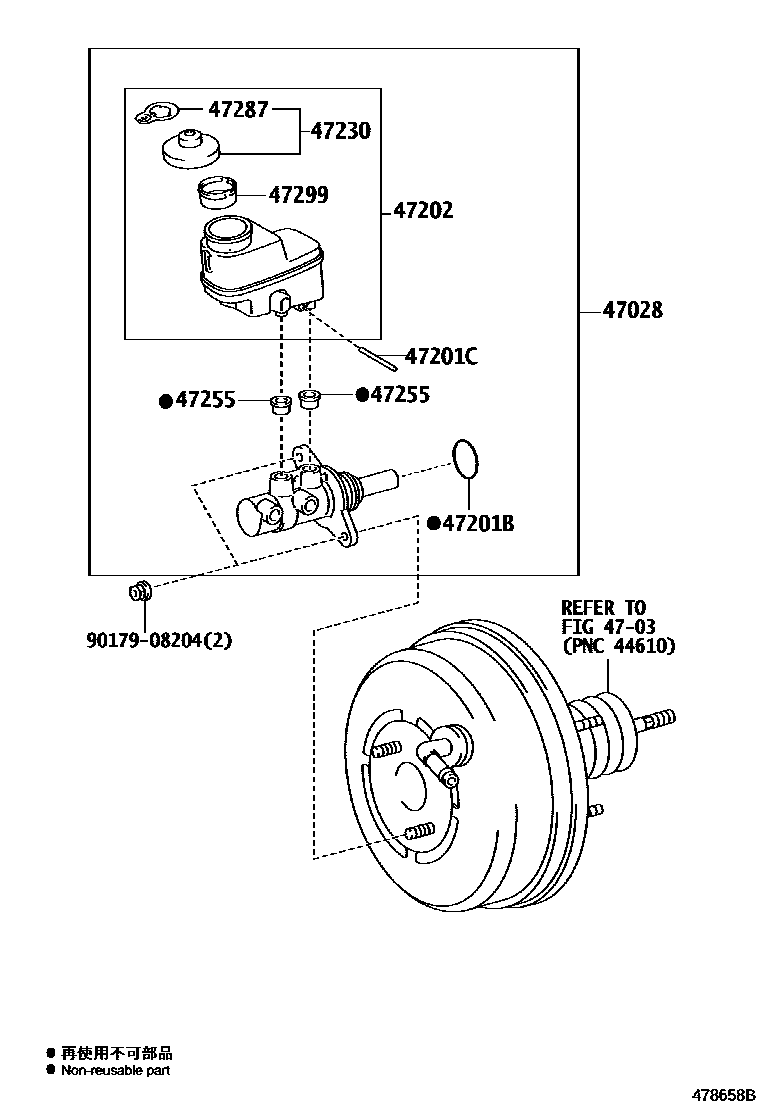

BRAKE MASTER CYLINDER

0001 1 0002 1 0003 1

47028CYLINDER SUB-ASSY, BRAKE MASTER W/PLATE

main47201-42340supersedes 47201-42382iASA4#,ZSA4#..LHD..(6FC,A)..X; ASA4#,ZSA4#..LHD..G201212-201510

VSC-WITHOUT

main47201-42350iASA4#,ZSA4#..LHD..6F201212-201510

main47201-42362iALA49..RHD..6FC201510-201810

main47201-42372iASA44,ZSA42..6F..ARL201212-201510

main47201-42382iALA49..6FC..GEN201510-201810

main47201-42392iALA49..6F..X..GEN201510-201810

4703BRAKE BOOSTER & VACUUM TUBE

→ Go to FIG 47-03

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90015-AH002iASA4#,ZSA4#201212-201510

47201CRING PIN, BRAKE MASTER CYLINDER

main90029-15803iASA4#,ZSA4#;ALA49..6F..(G,M)201510-201812

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-42100iASA4#,ZSA4#..ATM,CVT201510-201812

main47220-42110iASA4#,ZSA4#..6F;ALA49..6F..(G,M)201510-201812

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-20140iASA4#,ZSA4#201212-201510

main47230-47090iAVA4#201612-201810

main47230-58010iAVA4#201510-201612

47255GROMMET, MASTER CYLINDER RESERVOIR

main90029-48001×2iALA49..6FC;ALA49..6F..X201510-201810

47287LABEL, BRAKE FLUID INFORMATION

main47287-20010iASA4#,ZSA4#;ALA49..6F..(G,M)201510-201812

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-25010iASA4#,ZSA4#201212-201510

9017908204

main90179-08204

10 parts on this diagram · 3 diagrams in section
