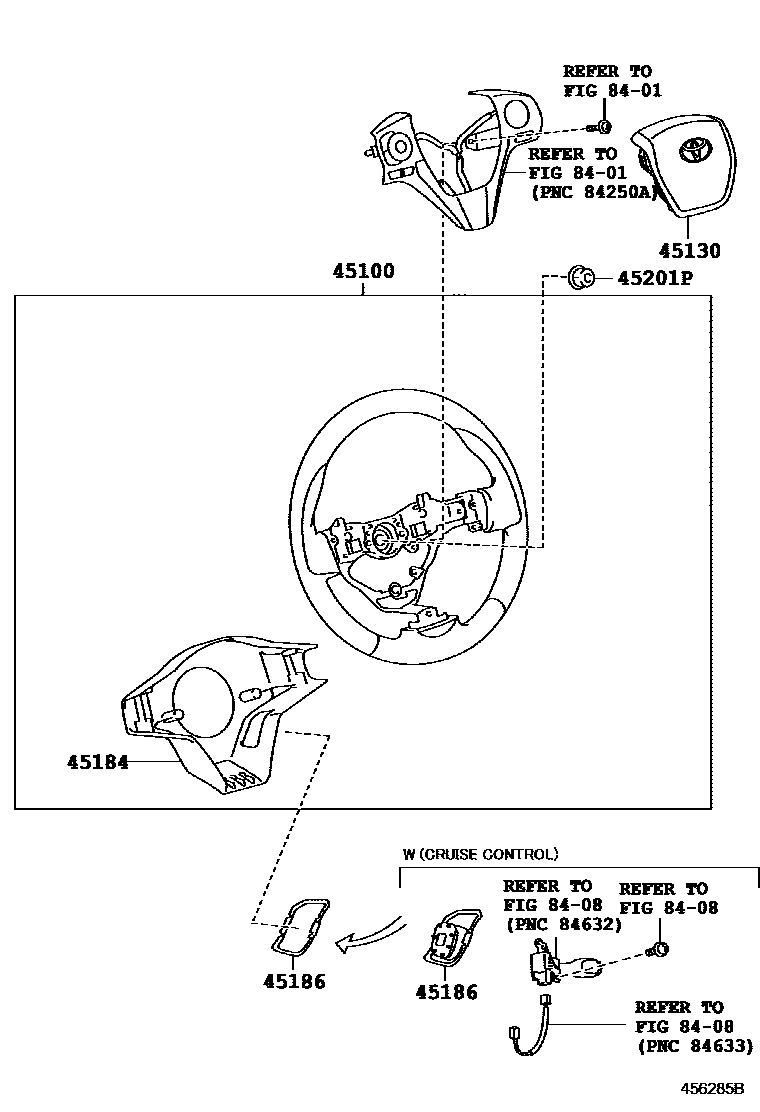

STEERING WHEEL
45100WHEEL ASSY, STEERING
3-SPOKE,URETHANE,BLACK,TRIM1#,2#,3#,4#; 3-SPOKE,URETHANE,BLACK,TRIM2#,3#,4#; 3-SPOKE,URETHANE,BLACK,TRIM2#,4#
main45100-12F80-C0supersedes 45100-12F70-C0iASA4#..X..GEN; ASA42..G;ASA44,ZSA42..G..(ARL,GCC); ASA44,ZSA4#..G..GEN; ZSA4#..6F..GEN; ZSA4#..A..X..GEN201212-201510
3-SPOKE,LEATHER,BLACK,TRIM1#,2#,3#,4#; 3-SPOKE,LEATHER,BLACK,TRIM2#,3#,4#; 3-SPOKE,LEATHER,STEERING WHEEL-LEATHER,BLACK,TRIM1#,2#,3#,4#; 3-SPOKE,LEATHER,STEERING WHEEL-LEATHER,BLACK,TRIM2#,3#,4#; 3-SPOKE,LEATHER,STEERING WHEEL-LEATHER,BLACK,TRIM2#,4#
3-SPOKE,LEATHER,BLACK,TRIM1#,2#,3#,4#; 3-SPOKE,LEATHER,BLACK,TRIM1#,2#,4#
45130BUTTON ASSY, HORN
main45130-42201-C0iASA4#..X;ZSA42..X..ARL; ASA42..G;ZSA4#..A..X..GEN;ASA44,ZSA42..G..(ARL,GCC); ZSA4#..6F..GEN;ASA44,ZSA4#..G..GEN201212-201510
BLACK,TRIM1#,2#,3#,4#; BLACK,TRIM2#,3#,4#; BLACK,TRIM2#,4#
BLACK,TRIM1#,2#,3#,4#; BLACK,TRIM1#,2#,4#; BLACK,TRIM2#,4#
45184COVER, STEERING WHEEL BOSS, LOWER
main45184-12370-C0iASA4#,ZSA4#..G;ZSA4#..6F..GEN; ASA4#..X;ZSA42..X..ARL; ZSA4#..A..X..GEN201212-201510
BLACK,TRIM1#,2#,3#,4#; BLACK,TRIM2#,3#,4#; BLACK,TRIM2#,4#
45186COVER, STEERING WHEEL, LOWER NO.2
BLACK,TRIM2#,3#,4#; BLACK,TRIM2#,4#; CRUISE CONTROL-WITHOUT,BLACK,TRIM1#,2#,3#,4#; SOUTH AFRICA SPEC,BLACK,TRIM2#,4#
main45186-12040-C0supersedes 45186-12030-C0iASA4#,ZSA4#..G; ASA44,ZSA42..X..ARL; ZSA4#..6F..GEN; ZSA42..6F..GEN201212-201510
BLACK,TRIM1#,2#,3#,4#; BLACK,TRIM2#,4#; RUSSIA SPEC&AIR CONDITIONER-AUTO DUAL CONTROL,BLACK,TRIM1#,2#,3#,4#; UKURAINE SPEC&AIR CONDITIONER-AUTO DUAL CONTROL,BLACK,TRIM1#,2#,3#,4#
45201PNUT, STEERING WHEEL SET
8401SWITCH & RELAY & COMPUTER
8408CRUISE CONTROL (AUTO DRIVE)
7 parts on this diagram · 1 diagram in section
