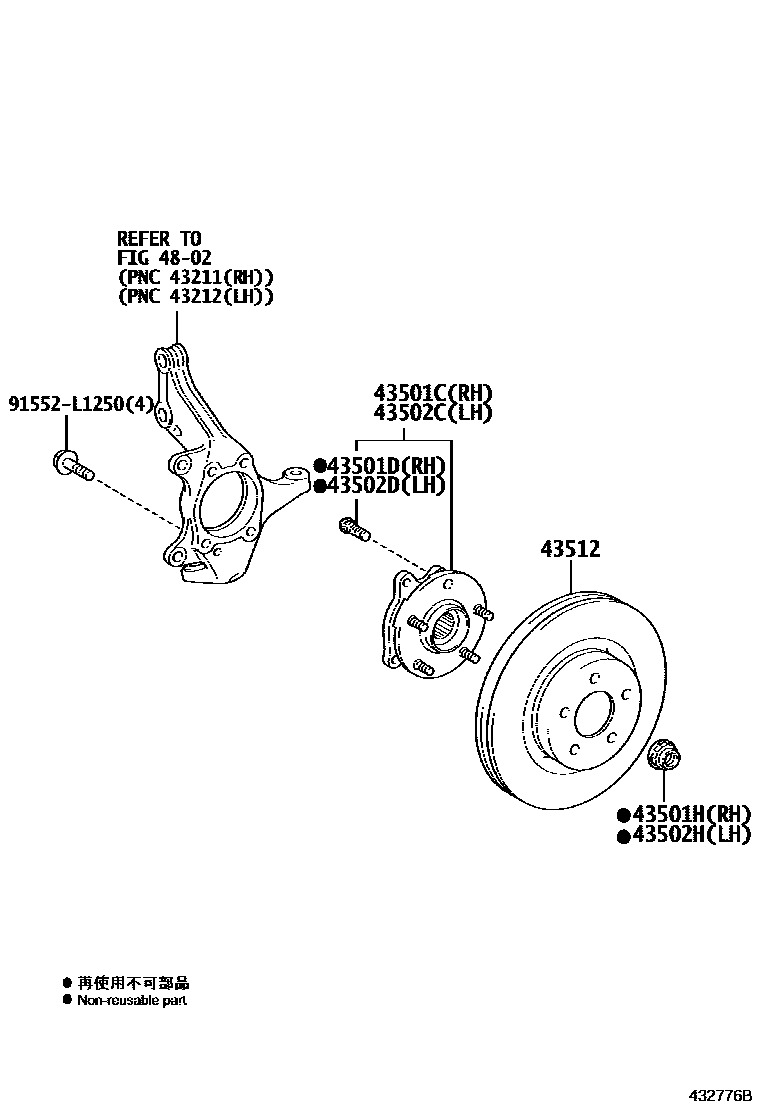

FRONT AXLE HUB

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43550-42010iZSA4#..A201212-201510

main43550-42020iASA4#,ZSA4#..6F,6FC201212-201510

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049×5iALA49..6F..X;ALA49,AVA4#..6FC,A201510-201810

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001iASA4#,ZSA4#201212-201510

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43550-42010iZSA4#..CVT201510-201812

main43550-42020iALA49..6F..(G,M);ASA4#,ZSA4#..6F,6FC201510-201812

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049×5iALA49..6F..X;ALA49,AVA4#..6FC,A201510-201810

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001iALA49..6F..X;ALA49,AVA4#..6FC,A201510-201810

43512DISC, FRONT

main43512-42050×2iASA4#,ZSA4#..ARL,GEN201212-201510

main43512-42100×2iALA49..X..SA;ALA49..6FC..(G,M)..SA201608-201810

4802FRONT AXLE ARM & STEERING KNUCKLE

→ Go to FIG 48-02

91552L1250

main91552-L1250

9 parts on this diagram · 1 diagram in section
