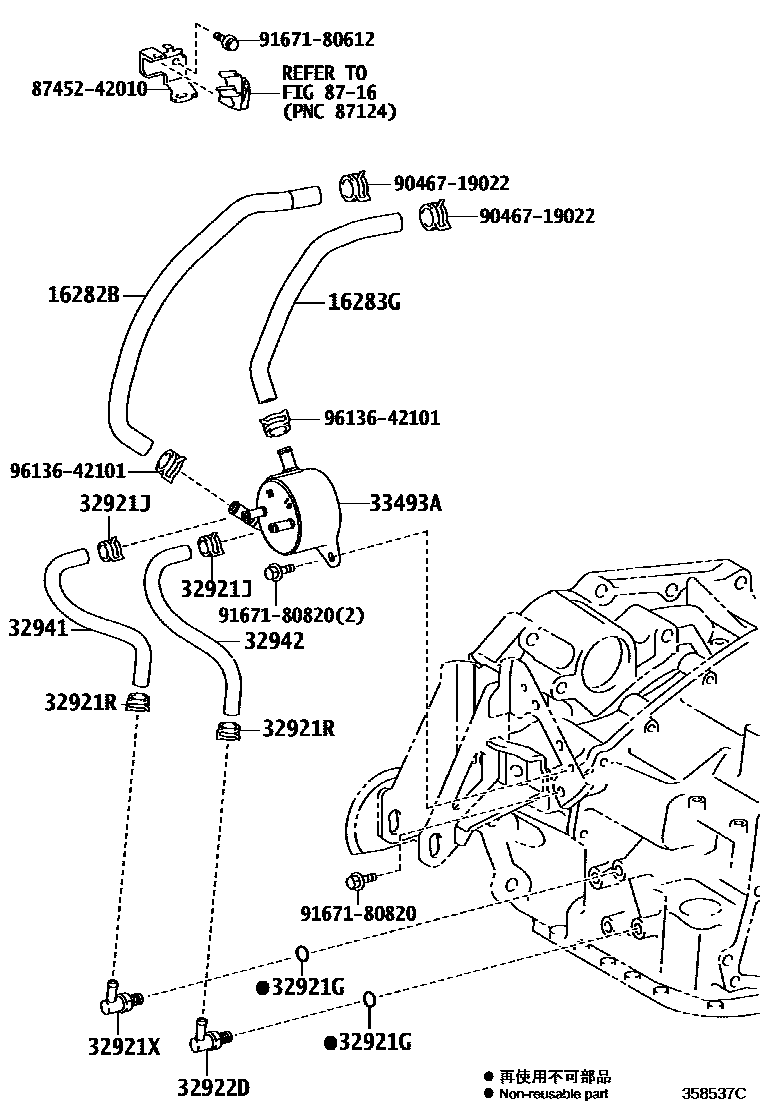

OIL COOLER & TUBE (ATM)

0001 1U760E,U760F 0002 1U660F

16282BHOSE, WATER BY-PASS, NO.5

main16296-36010i2ARFE..ASA4#..6FC201212-201510

16283GHOSE, WATER BY-PASS, NO.6

main16297-36010i2ARFE..ASA4#..6FC201212-201510

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-11031×2iASA4#..6FC201212-201510

32921JCLIP(FOR OIL COOLER HOSE)

main90466-16004×2iASA4#..6FC201212-201510

32921RCLIP, NO.2(FOR OIL COOLER HOSE)

main90466-16004×2iASA4#..6FC201212-201510

32921XUNION OR ELBOW, OIL COOLER INLET

main90407-14032iASA4#..6FC201510-201812

32922DUNION OR ELBOW, OIL COOLER OUTLET

main90407-14032×2iALA49..6FC201510-201810

32941HOSE, OIL COOLER INLET, NO.1

main32941-42110iASA4#..6FC201212-201510

main32941-42140iALA49..6FC201510-201810

32942HOSE, OIL COOLER OUTLET, NO.1

main32942-42100iASA4#..6FC201212-201510

main32942-42110iALA49..6FC201510-201810

33493ACOOLER, TRANSMISSION OIL(ATF WARMER)

main33493-42100iASA4#..6FC201212-201510

8716HEATING & AIR CONDITIONING - WATER PIPING

→ Go to FIG 87-16

8745242010BRACKET, FUEL MAGNET VALVE

main87452-42010

9046719022

main90467-19022

9167180612

main91671-80612

9167180820

main91671-80820

9613642101

main96136-42101

16 parts on this diagram · 2 diagrams in section
