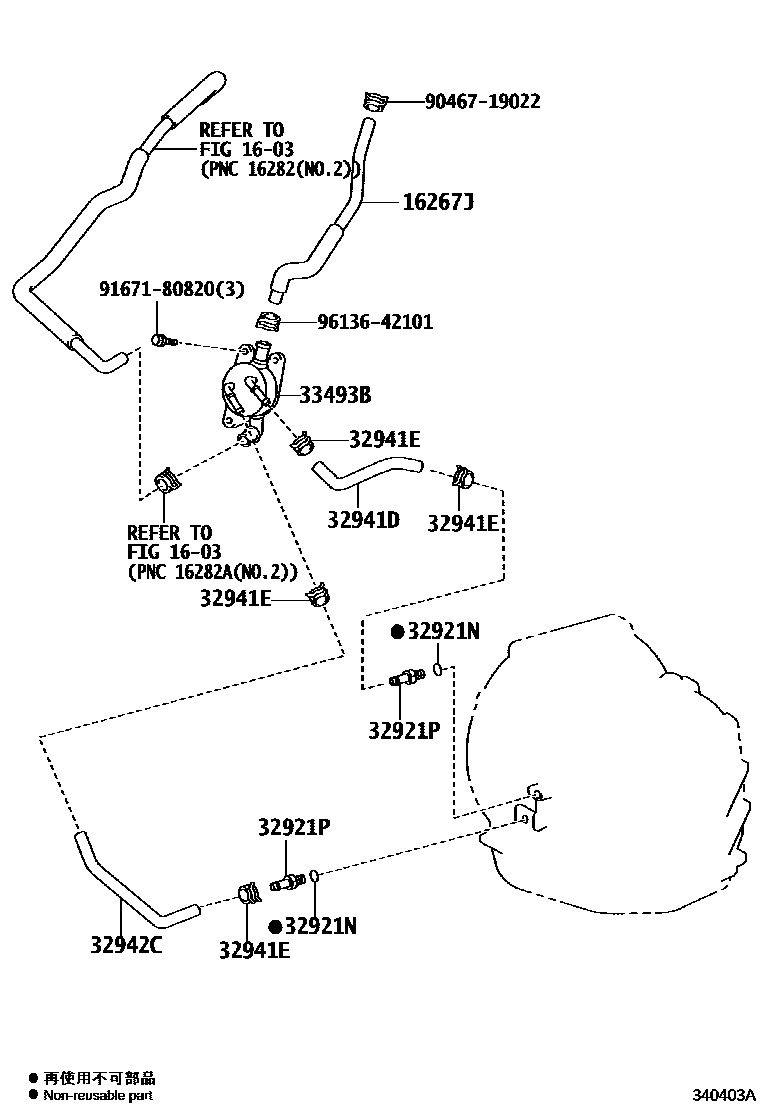

OIL COOLER & TUBE(CVT)

0001 1K111,K111F 0003 1K114,K114F

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

16267JHOSE, WATER BY-PASS, NO.3

main16267-37040i3ZRFE..ZSA4#..B201510-201812

main16267-37080i3ZRFE..ZSA4#..A201510-201812

32921NRING, O(FOR OIL COOLER TUBE UNION)

main90301-10018×2iZSA4#..B201512-201812

main90301-10189×2iZSA4#..A201212-201510

32921PUNION(FOR OIL COOLER TUBE)

main90404-13004×2iZSA4#..A201212-201510

main90404-13010×2iZSA4#..B201512-201812

32941DHOSE, OIL COOLER INLET

main32941-42120iZSA4#..A201212-201510

32941ECLIP(FOR OIL COOLER TUBE)

main90466-16004×4iZSA4#..A201212-201510

32942CHOSE, OIL COOLER OUTLET, NO.1

main32942-42090iZSA4#..A201212-201510

33493BCOOLER, OIL

main33493-42070iZSA4#..A201212-201510

main33493-78020iZSA4#..A201510-201812

9046719022

main90467-19022

9167180820

main91671-80820

9613642101

main96136-42101

11 parts on this diagram · 2 diagrams in section
