TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

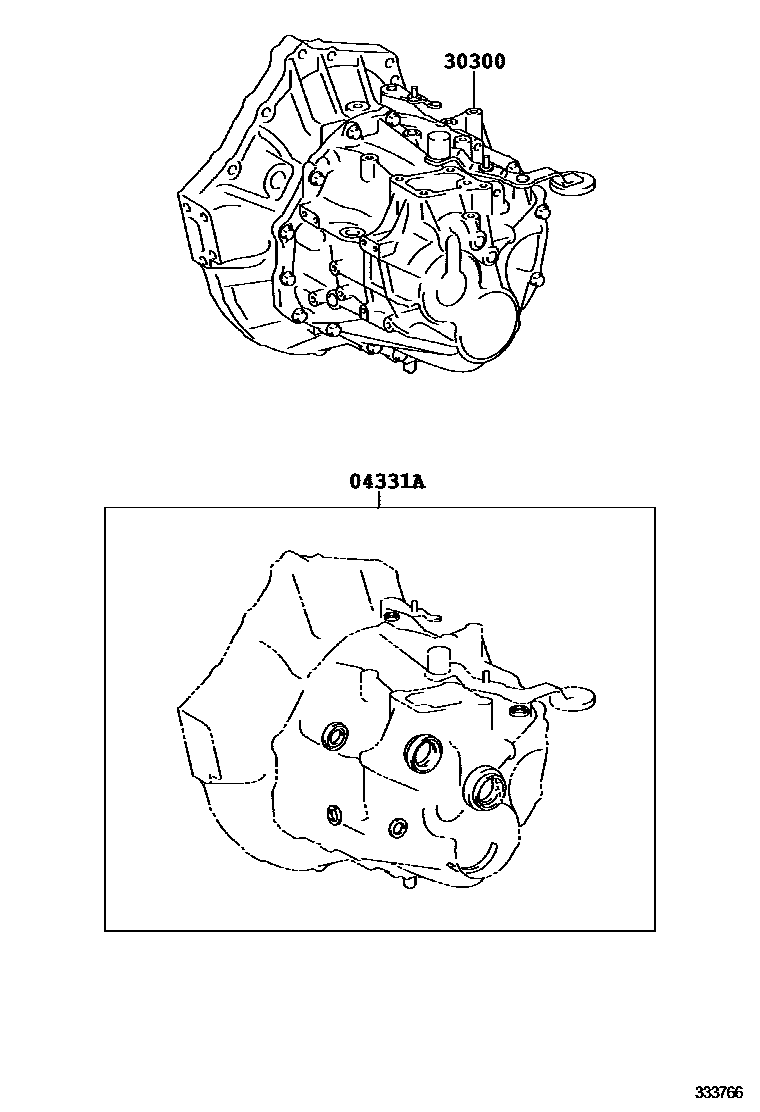

Parts diagram

04331AGASKET KIT, TRANSAXLE OVERHAUL(MTM)

main04331-12820i201510-201812

main04331-42140i201212-201510

main04331-42160i201510-201810

30300TRANSAXLE ASSY, MANUAL

main30300-42232i201212-201510

EB61F

main30300-42242i201510-201812

EB61

main30300-42270i201510-201805

EB63

main30300-42280i201510-201805

EB63F

main30300-42320i201510-201810

EA64F

2 parts on this diagram · 1 diagram in section
