CLUTCH MASTER CYLINDER

0001 1 0002 1

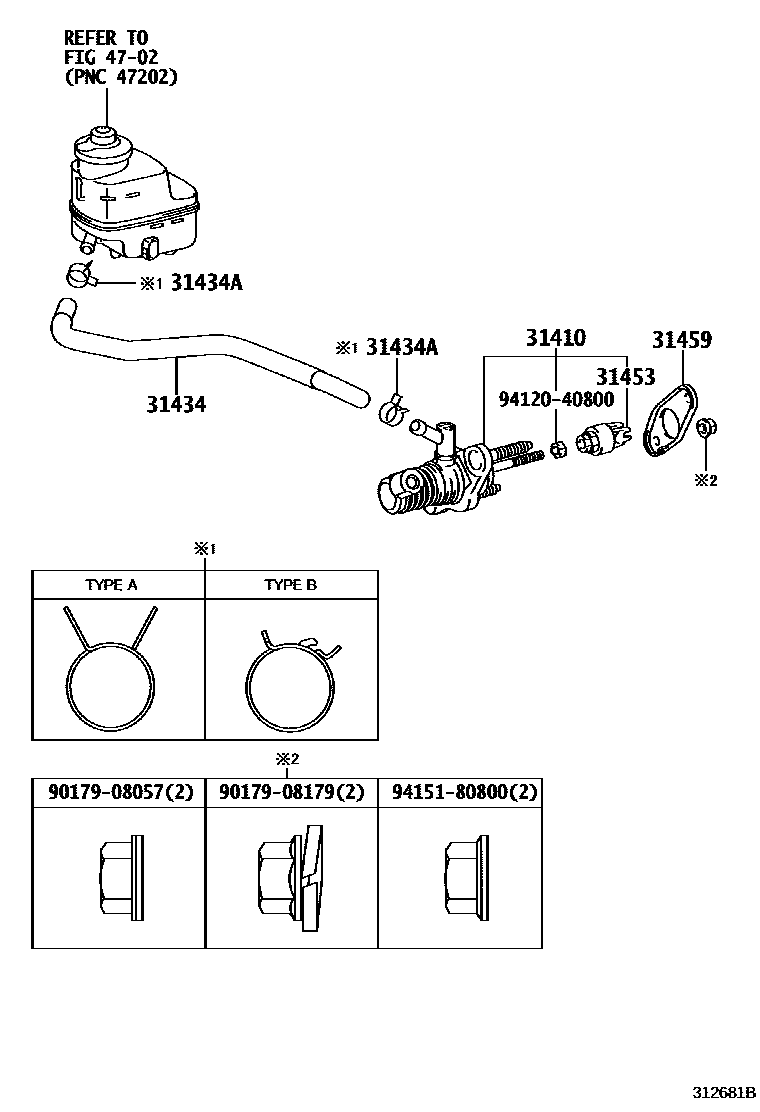

31410CYLINDER ASSY, CLUTCH MASTER

main31420-42060iASA44,ZSA42..6F..ARL201212-201510

main31420-42061iALA49..RHD..6F..X201701-201810

main31420-42070iASA4#,ZSA4#..LHD..6F;ALA49..6F..(G,M)..GEN201510-201812

31434TUBE, CLUTCH RESERVOIR

main31434-42050iASA4#,ZSA4#..LHD..6F201212-201510

main31434-42060iASA44,ZSA42..6F..ARL201212-201510

31434ACLIP(FOR CLUTCH RESERVOIR TUBE)

main96133-41500×2iASA4#,ZSA4#..6F201212-201510

TYPE A:REFER ILLUST.

main96136-41801×2iASA4#,ZSA4#..6F201212-201510

TYPE B:REFER ILLUST.

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-26020iASA44,ZSA42..6F..ARL201212-201510

main31404-26021iALA49..RHD..6F..X201701-201810

main31404-52010iASA4#,ZSA4#..LHD..6F;ALA49..6F..(G,M)..GEN201510-201812

31459BRACKET, CLUTCH MASTER CYLINDER

main31459-42040iASA4#,ZSA4#..6F201212-201510

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

9017908057

main90179-08057

9017908179

main90179-08179

9412040800

main94120-40800

9415180800

main94151-80800

10 parts on this diagram · 2 diagrams in section
