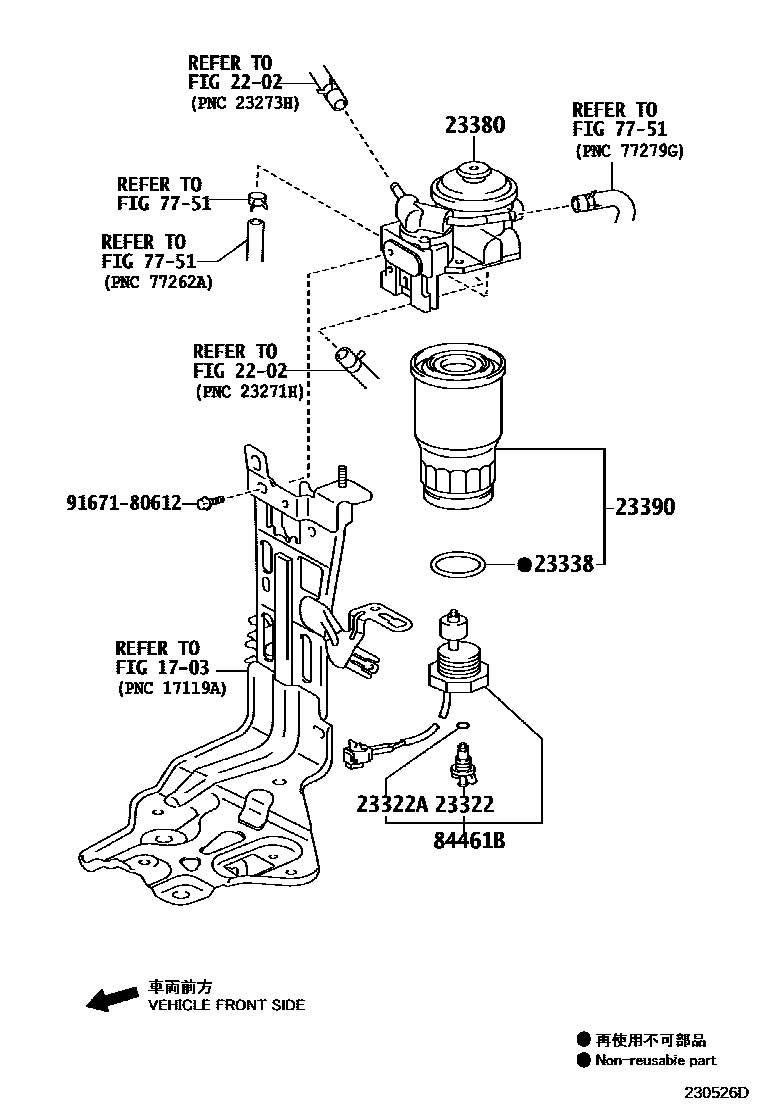

FUEL FILTER

1703AIR CLEANER

→ Go to FIG 17-03

2202INJECTION PUMP ASSEMBLY

→ Go to FIG 22-02

23322PLUG, DRAIN(FOR FUEL FILTER)

main23388-64470i2AD#..ALA49201510-201810

23322ARING, O(FOR DRAIN PLUG)

main23344-54010i2AD#..ALA49201510-201810

23338GASKET(FOR WARNING SWITCH)

main23344-64010i2AD#..ALA49201510-201810

23390ELEMENT ASSY, FUEL FILTER

main23390-33030i2AD#..ALA49201510-201810

main23390-26150i2ADFTV..ALA49..G..ARL201510-201608

AUSTRALIA SPEC

7751FUEL TANK & TUBE

→ Go to FIG 77-51

84461BSWITCH, LEVEL WARNING

main84461-26092iALA49201510-201810

9167180612

main91671-80612

9 parts on this diagram · 1 diagram in section
