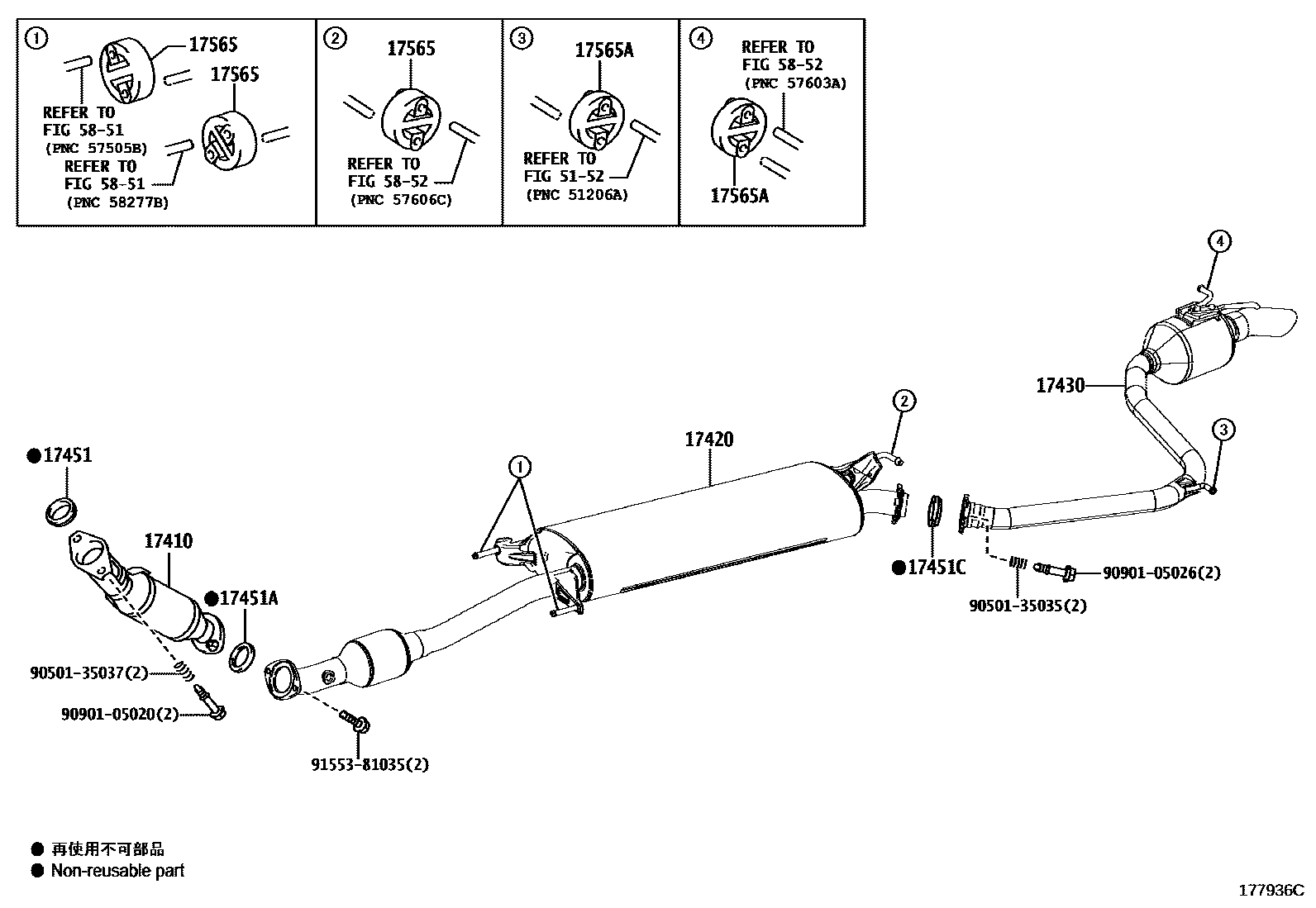

EXHAUST PIPE
17410PIPE ASSY, EXHAUST, FRONT
*114=TOYOTA/AF1/Y
*114=TOYOTA/AE3/Y
*114=TOYOTA/AF2/Y
*114=TOYOTA/AF1/Y
*114=TOYOTA/UF1/Y
17420PIPE ASSY, EXHAUST, CENTER
main17420-37150i3ZRFE..ZSA4#..RHD..GEN; 3ZRFE..ZSA42..RHD..B..(M,X)..GEN; 3ZRFE..ZSA42..RHD..B..GEN; 3ZRFE..ZSA42..RHD..GEN; 3ZRFE..ZSA42..SA201510-201812
BANGLADESH SPEC; BERMUDA SPEC; JAMAICA SPEC; KENYA,ZIMBABWE,MOZAMBIQUE,MAURITIUS SPEC; SRI LANKA SPEC; TRINIDAD-TOBAGO SPEC
EXHAUST EMISSION CONTROL-BRAZIL BR2 W/ON-BOARD DIAGNOSTID SYSTEM; RUSSIA SPEC; UKURAINE SPEC
EXHAUST EMISSION CONTROL-BRAZIL BR2 W/ON-BOARD DIAGNOSTID SYSTEM; RUSSIA SPEC; UKURAINE SPEC
main17420-37090i3ZRFE..ZSA42..A..(G,X)..GEN; 3ZRFE..ZSA42..A..ARL; 3ZRFE..ZSA42..LHD..B; 3ZRFE..ZSA42..X..ARL;3ZRFE..ZSA42..A..M..ARL; 3ZRFE..ZSA44..6F..X;3ZRFE..ZSA42..A..GEN201510-201812
ARGENTINA SPEC&EXHAUST EMISSION CONTROL-WITH(OBD EUROPE EURO5 GASOLINE); AUSTRALIA SPEC&EXHAUST EMISSION CONTROL-WITH(OBD EUROPE EURO5 GASOLINE); CHILE SPEC&EXHAUST EMISSION CONTROL-WITH(OBD EUROPE EURO5 GASOLINE); NEW ZEALAND SPEC&EXHAUST EMISSION CONTROL-WITH(OBD EUROPE EURO5 GASOLINE); TAIWAN SPEC&EXHAUST EMISSION CONTROL-WITH(OBD EUROPE EURO5 GASOLINE)
BRAZIL SPEC&EXHAUST EMISSION CONTROL-BRAZIL BR2 W/ON-BOARD DIAGNOSTID SYSTEM
17430PIPE ASSY, EXHAUST, TAIL
EXHAUST EMISSION CONTROL-BRAZIL BR2 W/ON-BOARD DIAGNOSTID SYSTEM; RUSSIA SPEC; UKURAINE SPEC
EXHAUST EMISSION CONTROL-BRAZIL BR2 W/ON-BOARD DIAGNOSTID SYSTEM; RUSSIA SPEC; UKURAINE SPEC
EXHAUST EMISSION CONTROL-WITH(OBD BRLEV BR2 GASOLINE); EXHAUST EMISSION CONTROL-WITH(OBD BRLEV BR2+ GASOLINE)
main17430-37520i3ZRFE..ZSA4#..GEN; 3ZRFE..ZSA42..GEN; 3ZRFE..ZSA44..G;3ZRFE..ZSA42..A..X..GEN201212-201310
EXHAUST EMISSION CONTROL-BRAZIL BR2 W/ON-BOARD DIAGNOSTID SYSTEM; RUSSIA SPEC; UKURAINE SPEC
main17430-37521i3ZRFE..ZSA4#..GEN; 3ZRFE..ZSA42..GEN; 3ZRFE..ZSA44..G;3ZRFE..ZSA42..A..X..GEN201311-201510
EXHAUST EMISSION CONTROL-BRAZIL BR2 W/ON-BOARD DIAGNOSTID SYSTEM; RUSSIA SPEC; UKURAINE SPEC
EXHAUST EMISSION CONTROL-WITH(OBD BRLEV BR2 GASOLINE); EXHAUST EMISSION CONTROL-WITH(OBD BRLEV BR2+ GASOLINE)
17451GASKET, EXHAUST PIPE
17451AGASKET, EXHAUST PIPE, NO.2
17451CGASKET, EXHAUST PIPE, NO.3
main17451-28022i2ARFE..ASA44..RHD;2ARFE,3ZRFE..ASA42,ZSA4#;2ARFE..ASA44..LHD..(G,M);2ARFE..ASA44..LHD..6F..X201510-201812
17565SUPPORT, EXHAUST PIPE, NO.5
17565ASUPPORT, EXHAUST PIPE, NO.4
5152SUSPENSION CROSSMEMBER & UNDER COVER
5851FRONT FLOOR PANEL & FRONT FLOOR MEMBER
5852REAR FLOOR PANEL & REAR FLOOR MEMBER
9050135035
main90501-35035
9050135037
main90501-35037
9090105020
main90901-05020
9090105026
main90901-05026
9155381035
main91553-81035
16 parts on this diagram · 4 diagrams in section
