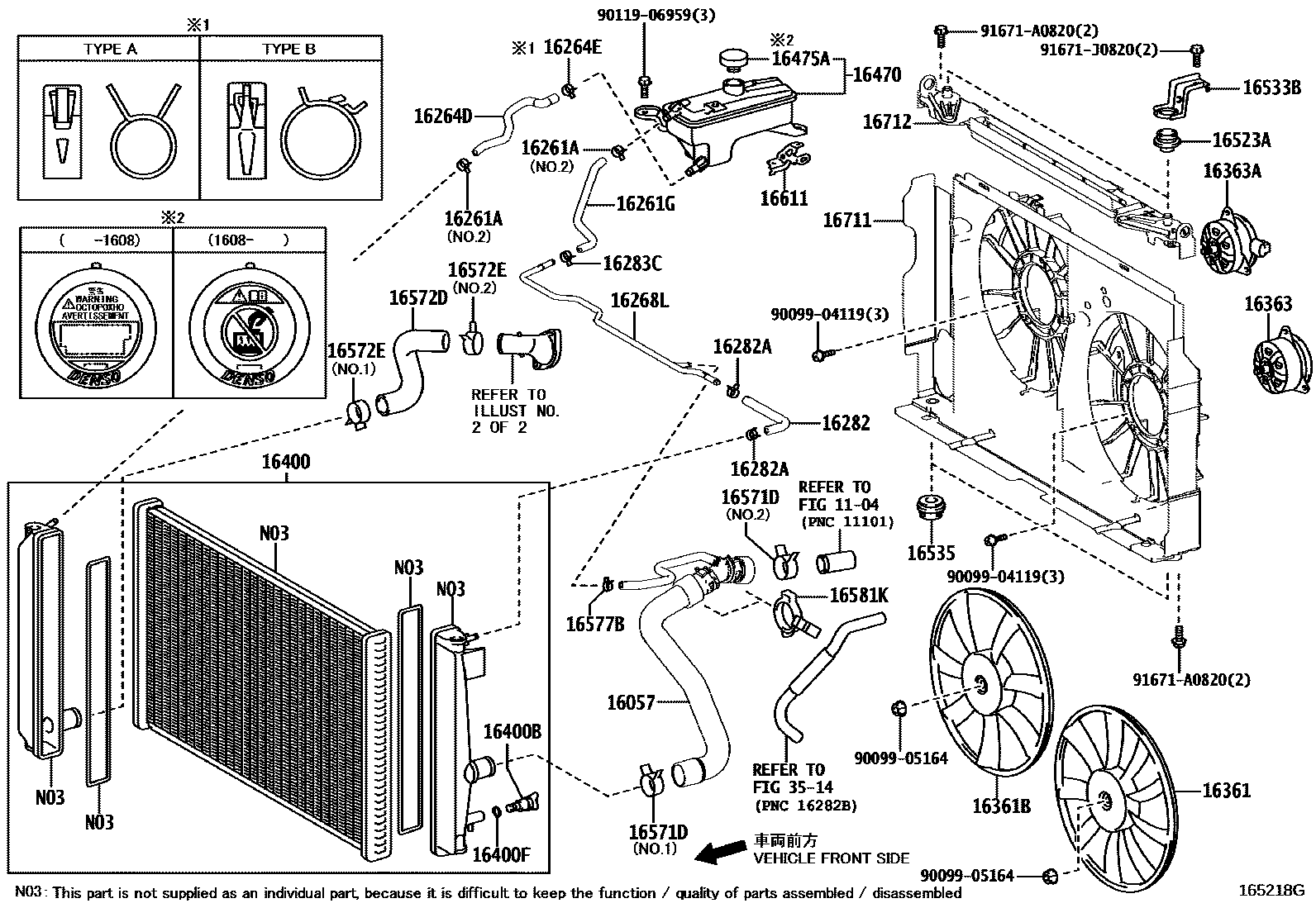

RADIATOR & WATER OUTLET
1104CYLINDER HEAD
16057HOSE SUB-ASSY, RADIATOR
16261HOSE, WATER BY-PASS
NO.2
16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
NO.1; NO.2:REFER ILLUST.
NO.1:REFER ILLUST.
NO.1:REFER ILLUST.; NO.2
16261GHOSE, WATER BY-PASS, NO.1
*347,*265 OR *524
TAIWAN SPEC,*265 OR *524; TAIWAN SPEC,*347
16264HOSE, WATER BY-PASS, NO.2
TAIWAN SPEC,*265 OR *524; TAIWAN SPEC,*347
16264DHOSE, WATER BY-PASS, NO.2
16264ECLIP(FOR WATER BY-PASS HOSE NO.2)
main90467-21010×2i2AD#..ALA49..RHD;2ADFTV..ALA49..X..GEN;2ADFTV..ALA49..6FC..(G,M)..GEN201510-201810
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
16268PIPE, WATER BY-PASS, NO.1
NO.1
NO.1
*347,*265 OR *524
NO.2
NO.2,NO PAINTED
TAIWAN SPEC,*265 OR *524; TAIWAN SPEC,*347
16268LPIPE, WATER BY-PASS
16282HOSE, WATER BY-PASS, NO.5
NO.1
NO.2
NO.2
16282ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5)
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
NO.2
NO.1
16283HOSE, WATER BY-PASS, NO.6
16283CCLAMP OR CLIP(FOR WATER BY-PASS HOSE)
16361FAN
TOWING PACKAGE-WITH
16361BFAN, NO.2
TOWING PACKAGE-WITH
16363MOTOR, COOLING FAN
TOWING PACKAGE-WITH
16363AMOTOR, COOLING FAN, NO.2
TOWING PACKAGE-WITH
16400RADIATOR ASSY
16400BPLUG, RADIATOR DRAIN COCK
16400FPACKING(FOR RADIATOR DRAIN COCK)
16470TANK ASSY, RADIATOR RESERVE
main16470-28113i2ARFE..ASA42;2ARFE..ASA44..RHD;2ARFE..ASA44..LHD..(G,X);2ARFE..ASA44..LHD..6FC..M; 3ZRFE..ZSA42..M,X;3ZRFE..ZSA44..6F,B;3ZRFE..ZSA42..CVT..G;3ZRFE..ZSA44..A..(M,X);3ZRFE..ZSA42..6F..G..GEN201608-201812
16475ACAP, RESERVE TANK
main16475-28140i2ADFTV,2ARFE..ALA49,ASA44..LHD..6F..(G,M); 3ZRFE..ZSA44..A..G;3ZRFE..ZSA42..6F..G..ARL201608-201705
16523ACUSHION, RADIATOR SUPPORT
16533SUPPORT, RADIATOR, UPPER
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
16533BSUPPORT, RADIATOR, NO.1
16535SUPPORT, RADIATOR, LOWER
16571HOSE, RADIATOR, INLET
16571DCLIP, RADIATOR HOSE, NO.1
NO.2:REFER ILLUST.
NO.1:REFER ILLUST.
16572HOSE, RADIATOR, OUTLET
16572DHOSE, RADIATOR, NO.2
16572ECLIP, RADIATOR HOSE, NO.2
NO.2:REFER ILLUST.
NO.1:REFER ILLUST.
16577BCLAMP OR CLIP, HOSE(FOR RADIATOR PIPE)
16581CLAMP, HOSE(FOR WATER HOSE)
NO.1
NO.2
NO.1
16581KCLAMP, SUB-RADIATOR HOSE, NO.1
16611BRACKET, RADIATOR RESERVE TANK
16711SHROUD, FAN
TOWING PACKAGE-WITH
16712SHROUD, FAN, NO.2
3514OIL COOLER & TUBE (ATM)
9009904119
main90099-04119
9009905164
main90099-05164
9011906959
main90119-06959
91671A0820
main91671-A0820
91671J0820
main91671-J0820
44 parts on this diagram · 17 diagrams in section
