OIL FILTER

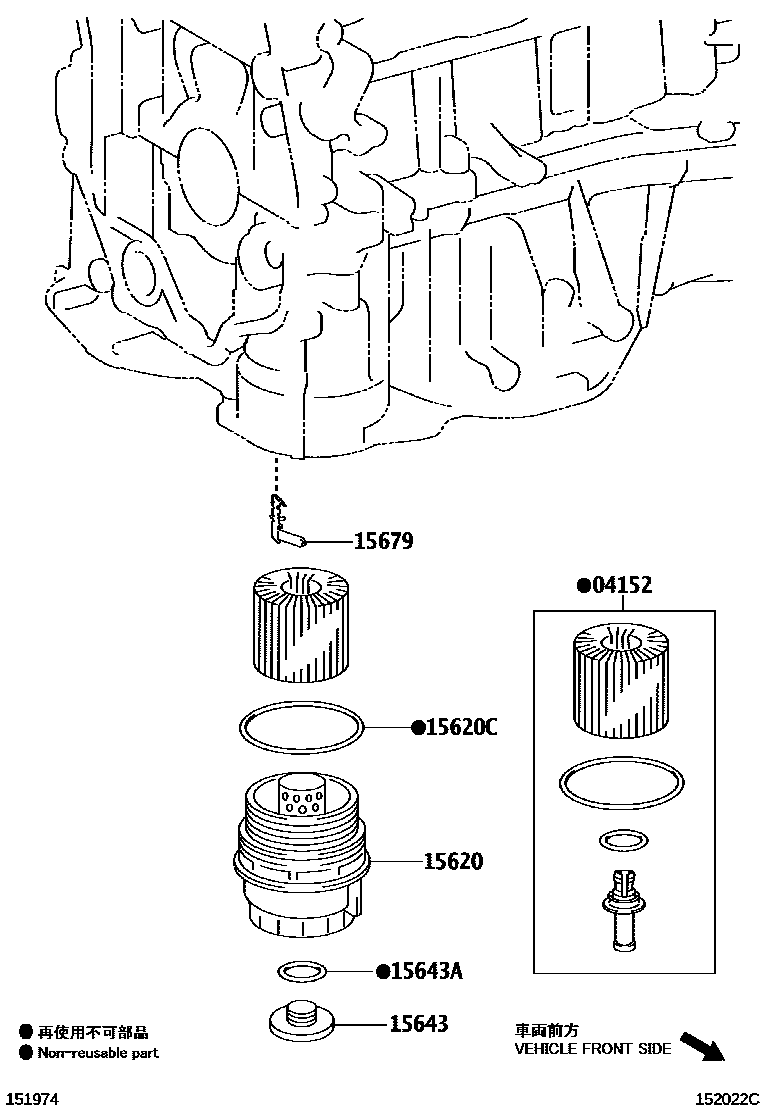

Parts diagram

04152ELEMENT KIT, OIL FILTER

main04152-0V010i201510-201810

(L),*347

main04152-31090i201212-201510

main04152-37010i201212-201510

ELEMENT TYPE

main04152-38010i201510-201810

15620CAP ASSY, OIL FILTER

main15620-36020i201212-201510

main15620-37010i201212-201510

ELEMENT TYPE

15620CGASKET(FOR OIL FILTER CAP)

main90301-69011i201212-201510

ELEMENT TYPE

main90301-79006i201510-201810

*347,*265 OR *524

15643PLUG, OIL FILTER DRAIN

main15643-31050i201212-201510

15643ARING, O(FOR OIL FILTER DRAIN PLUG)

main96723-35028i201212-201510

15679CLIP, OIL FILTER BRACKET

main15679-37010i201212-201408

ELEMENT TYPE

main15679-37011i201409-201510

ELEMENT TYPE

6 parts on this diagram · 3 diagrams in section
