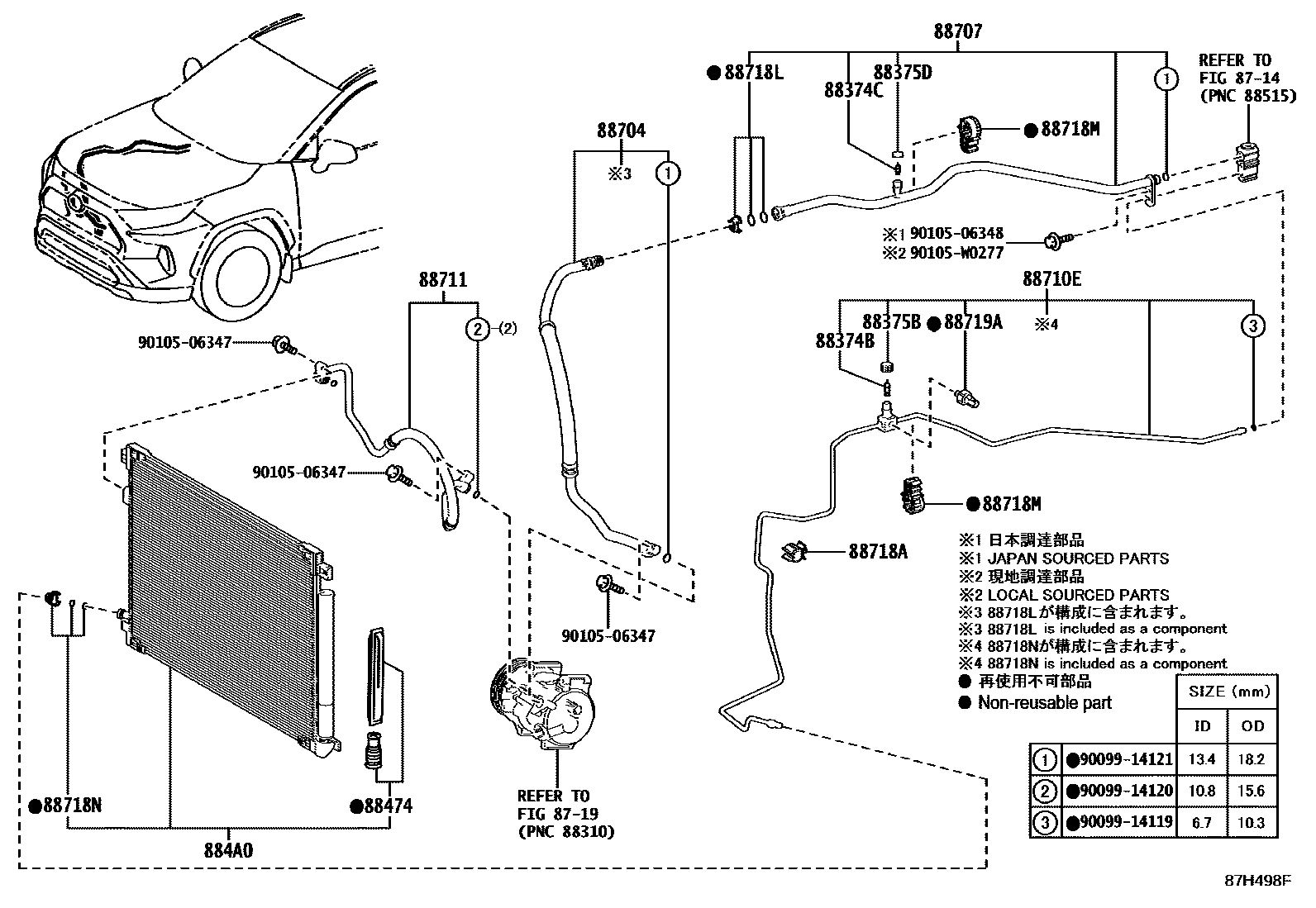

HEATING & AIR CONDITIONING - COOLER PIPING
8714HEATING & AIR CONDITIONING - COOLER UNIT
8719HEATING & AIR CONDITIONING - COMPRESSOR
88374BVALVE, SERVICE, NO.1
main88374-30010iMXAA5#..6F..G..EUR;AXAH52..LHD..G..GEN;MXAA54..JPP..CVT..G;AXAH52..G..(ARL,EUR);AXAA5#..ARL,GCC,GEN,SA;MXAA52..JPP..6F..(M,X);AXAH52,MXAA54..JPP..(M,V,X);AXAH54,AXAL5#,MXAA52..CVT..(ARL,EUR,GCC,GEN,SA)201811-202007
88374CVALVE, SERVICE, NO.2
main88374-30010iAXAA5#,AXAL5#..JPP;AXAH52..LHD..M..EUR;AXAH52..(G,P,X)..EUR;MXAA52..X..(ARL,GCC,GEN);MXAA52..(G,M)..(ARL,GEN,SA);AXAH54..LHD..(G,M,P,V)..EUR;AXAH5#,MXAA54..JPP..(ARL,GCC,GEN,RUS,SA)202310
88375BCAP, SERVICE VALVE, NO.1
main88375-30280supersedes 88375-30320iMXAA5#..LHD..EUR; MXAA52..CVT..X..EUR; MXAA52..X..SA;MXAA52..G..EUR202210
REGULATION COMPLIANCE LABEL & NAME PLATE-*NTA LABEL&AZERBAIJAN,GEORGIA SPEC; REGULATION COMPLIANCE LABEL & NAME PLATE-*NTA LABEL&EXCEPT WVTA COUNTRY; REGULATION COMPLIANCE LABEL & NAME PLATE-*NTA LABEL&UKRAINE,MOLDOVA SPEC
88375DCAP, SERVICE VALVE, NO.2
main88375-30310iAXAH5#,AXAL5#..LHD..EUR; MXAA5#..LHD..EUR; MXAA52..RHD..6F..EUR;AXAH5#,AXAL5#..RHD..EUR201811-202007
FRANCE SPEC; GERMANY SPEC; ISRAEL SPEC; ITALY SPEC; NORWAY,SWEDEN,FINLAND,DENMARK SPEC; OTHER WVTA COUNTRY, WITH RSA; OTHER WVTA COUNTRY, WITHOUT RSA; REGULATION COMPLIANCE LABEL & NAME PLATE-WITH(*WVTA)&FRANCE SPEC; REGULATION COMPLIANCE LABEL & NAME PLATE-WITH(*WVTA)&GERMANY SPEC; REGULATION COMPLIANCE LABEL & NAME PLATE-WITH(*WVTA)&ISRAEL SPEC; REGULATION COMPLIANCE LABEL & NAME PLATE-WITH(*WVTA)&ITALY SPEC; REGULATION COMPLIANCE LABEL & NAME PLATE-WITH(*WVTA)&NORWAY,SWEDEN,FINLAND,DENMARKSPEC; REGULATION COMPLIANCE LABEL & NAME PLATE-WITH(*WVTA)&OTHER WVTA COUNTRY, WITH RSA; REGULATION COMPLIANCE LABEL & NAME PLATE-WITH(*WVTA)&OTHER WVTA COUNTRY, WITHOUT RSA; REGULATION COMPLIANCE LABEL & NAME PLATE-WITH(*WVTA)&SPAIN,JIB SPEC; REGULATION COMPLIANCE LABEL & NAME PLATE-WITH(*WVTA)&TURKEY SPEC; SPAIN,JIB SPEC; TURKEY SPEC
88474DRYER, COOLER
main88474-12010iAXAA54..LHD..V;MXAA52..JPP..CVT;AXAH54..(G,P)..GEN;AXAH54..LHD..M..GEN;AXAA54..(M,V,X)..ARL;MXAA52..LHD..6F..GEN;AXAL5#..(G,M,P,V)..EUR;MXAA54..JPP..CVT..(M,X);AXAH5#..X..(ARL,GCC,GEN);AXAH5#,AXAL5#..LHD..X..EUR;MXAA54..(G,V)..(EUR,GEN,SA);MXAA54..JPP..LHD..6F..(M,X);AXAA54..(G,M,X)..(GCC,GEN,SA);AXAA52,AXAH52..LHD..(G,M,P)..GEN;AXAH5#..(G,M,P,V)..(ARL,EUR,GCC,SA);AXAA52,MXAA52..(6F,8FC)..(EUR,GCC,SA)202112-202210
main88474-12020iAXAL5#..ARL;AXAA54..G..ARL;MXAA54..(G,V)..GCC;AXAH54..RHD..M..GEN;AXAA52,AXAH52..RHD..GEN;MXAA5#..RHD..6F..(ARL,GEN);AXAH5#,AXAL5#..RHD..X..EUR202008-202111
884A0CONDENSER ASSY, COOLER
main884A0-33010iAXAA54..G..ARL;MXAA54..(G,V)..GCC;AXAA52,MXAA5#..RHD..(6F,8FC)..(ARL,GEN)202008-202111
REFER86-17:PNC86466D
FRANCE SPEC; GERMANY SPEC; ISRAEL SPEC; ITALY SPEC; NORWAY,SWEDEN,FINLAND,DENMARK SPEC; OTHER WVTA COUNTRY, WITH RSA; OTHER WVTA COUNTRY, WITHOUT RSA; SPAIN,JIB SPEC; TURKEY SPEC
main884A0-42010supersedes 884A0-42060iMXAA52..X..(ARL,GCC,GEN);MXAA52..(G,M)..(ARL,GEN,SA);AXAA5#,MXAA54..JPP..(ARL,GCC,GEN,RUS,SA)202210-202310
main884A0-42040iAXAH52..M,X;AXAH52..LHD..G..GEN;AXAH52..G..(ARL,EUR);AXAH54,AXAL5#..ARL,EUR,GCC,GEN201811-202007
88704HOSE SUB-ASSY, SUCTION
main88704-42740iAXAH52..M,X;AXAH52..LHD..G..GEN;AXAH52..G..(ARL,EUR);AXAH54,AXAL5#..ARL,EUR,GCC,GEN201811-202007
main88704-42840iAXAH54..(G,P)..GEN;AXAH54..LHD..M..GEN;AXAL5#..(G,M,P,V)..EUR;AXAH5#..X..(ARL,GCC,GEN);AXAH52..LHD..(G,M,P)..GEN;AXAH5#,AXAL5#..LHD..X..EUR;AXAH5#..(G,M,P,V)..(ARL,EUR,GCC,SA)202112-202210
main88704-42841iAXAL5#;AXAH52..LHD..M..EUR;AXAH52..(G,P,X)..EUR;AXAH5#..ARL,GCC,GEN,SA;AXAH54..LHD..(G,M,P,V)..EUR202403
88707PIPE SUB-ASSY, SUCTION
main88707-42220iMXAA52..6F..SA;MXAA5#..RHD..CVT;AXAA54..(M,V,X)..ARL;AXAA54..RHD..(G,M,X)..(GEN,SA)202008-202210
EXCEPT WVTA COUNTRY
88710ETUBE & ACCESSORY ASSY, AIR CONDITIONER
FRANCE SPEC; GERMANY SPEC; ISRAEL SPEC; ITALY SPEC; NORWAY,SWEDEN,FINLAND,DENMARK SPEC; SPAIN,GIBRALTAR SPEC; TURKEY SPEC; WVTA COUNTRY, W(ROAD SIGN ASSIST), EU; WVTA COUNTRY, W/O (ROAD SIGN ASSIST); WVTA COUNTRY,W(ROAD SIGN ASSIST)
main88710-42450supersedes 88710-42440iAXAA52..LHD..(G,M)..GEN;AXAA54,MXAA5#..LHD..GEN; MXAA5#..LHD..EUR; MXAA52..LHD..CVT..(G,X)..EUR202112-202210
REGULATION COMPLIANCE LABEL & NAME PLATE-*NTA LABEL&AZERBAIJAN,GEORGIA SPEC; REGULATION COMPLIANCE LABEL & NAME PLATE-*NTA LABEL&EXCEPT WVTA COUNTRY; REGULATION COMPLIANCE LABEL & NAME PLATE-*NTA LABEL&UKRAINE,MOLDOVA SPEC
main88710-42490supersedes 88710-42550iAXAH5#..LHD..(GCC,GEN); AXAH5#..LHD..EUR; AXAH52..LHD..(G,M)..EUR;AXAH54..LHD..(G,M,V,X)..EUR202112-202210
AZERBAIJAN,GEORGIA SPEC; EXCEPT WVTA COUNTRY; UKRAINE,MOLDOVA SPEC
EXCEPT WVTA COUNTRY
REGULATION COMPLIANCE LABEL & NAME PLATE-WITH(*WVTA)&FRANCE SPEC; REGULATION COMPLIANCE LABEL & NAME PLATE-WITH(*WVTA)&GERMANY SPEC; REGULATION COMPLIANCE LABEL & NAME PLATE-WITH(*WVTA)&ISRAEL SPEC; REGULATION COMPLIANCE LABEL & NAME PLATE-WITH(*WVTA)&ITALY SPEC; REGULATION COMPLIANCE LABEL & NAME PLATE-WITH(*WVTA)&NORWAY,SWEDEN,FINLAND,DENMARKSPEC; REGULATION COMPLIANCE LABEL & NAME PLATE-WITH(*WVTA)&SPAIN,GIBRALTAR SPEC; REGULATION COMPLIANCE LABEL & NAME PLATE-WITH(*WVTA)&TURKEY SPEC; REGULATION COMPLIANCE LABEL & NAME PLATE-WITH(*WVTA)&WVTA COUNTRY, W(ROAD SIGN ASSIST), EU; REGULATION COMPLIANCE LABEL & NAME PLATE-WITH(*WVTA)&WVTA COUNTRY, W/O (ROAD SIGNASSIST); REGULATION COMPLIANCE LABEL & NAME PLATE-WITH(*WVTA)&WVTA COUNTRY,W(ROAD SIGN ASSIST)
88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88718ACLAMP, NO.1(FOR COOLER REFRIGERANT PIPE)
main88718-2F110iAXAA5#,AXAL5#..JPP;AXAH52..LHD..M..EUR;AXAH52..(G,P,X)..EUR;MXAA52..X..(ARL,GCC,GEN);MXAA52..(G,M)..(ARL,GEN,SA);AXAH54..LHD..(G,M,P,V)..EUR;AXAH5#,MXAA54..JPP..(ARL,GCC,GEN,RUS,SA)202310
88718LCLAMP, PIPING
88718MCLAMP, PIPING
main88718-33490×2iAXAL5#..ARL;AXAA54..G..ARL;AXAA52..X..GEN;AXAH54..RHD..M..GEN;AXAA54..RHD..V..GEN;AXAA52,AXAH52..RHD..GEN;AXAH5#,AXAL5#..RHD..X..EUR;MXAA5#..RHD..6F..(ARL,GEN)202008-202111
88718NCLAMP, PIPING
main88718-1E150iAXAL5#..ARL;AXAA54..G..ARL;AXAA52..X..GEN;MXAA54..(G,V)..GCC;AXAA54..RHD..V..GEN;AXAH54..RHD..M..GEN;AXAA52,AXAH52..RHD..GEN;MXAA5#..RHD..6F..(ARL,GEN);AXAH5#,AXAL5#..RHD..X..EUR; AXAL5#..ARL;AXAA54..G..ARL;MXAA54..(G,V)..GCC;AXAH54..RHD..M..GEN;AXAA52,AXAH52..RHD..GEN;MXAA5#..RHD..6F..(ARL,GEN);AXAH5#,AXAL5#..RHD..X..EUR202008-202111
88719ASENSOR, AIR CONDITIONER PRESSURE
9009914119
main90099-14119
9009914120
main90099-14120
9009914121
main90099-14121
9010506347
main90105-06347
9010506348
main90105-06348
90105W0277
main90105-W0277
23 parts on this diagram · 16 diagrams in section
