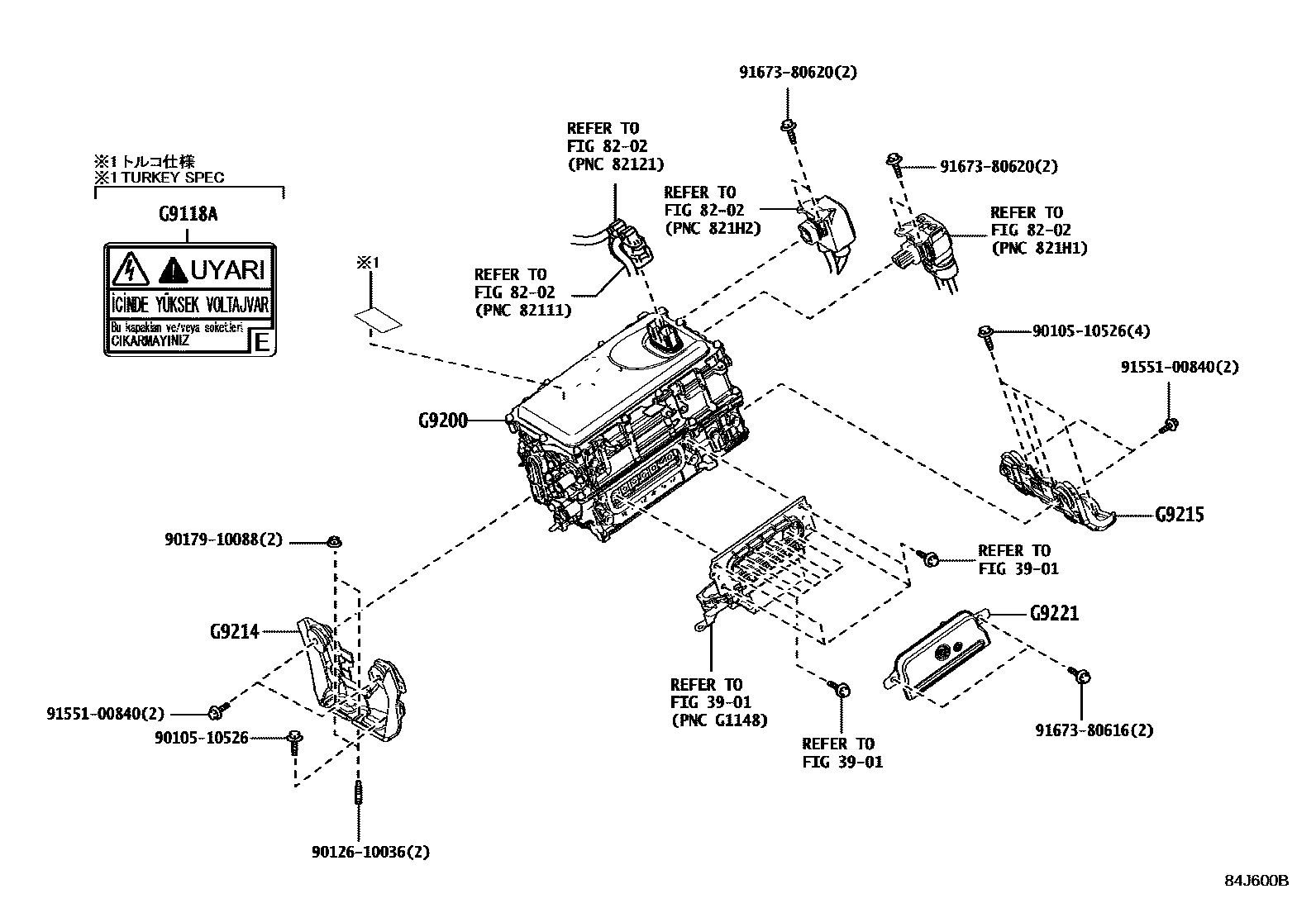

HEV INVERTER

0001 1 0002 1 0003 1HV CONVERTER KIT 0004 1HV CONVERTER KIT

3901TRANSAXLE ASSY(HEV OR BEV OR FCEV)

→ Go to FIG 39-01

8202WIRING & CLAMP

→ Go to FIG 82-02

G9118ALABEL, HV MOTOR CONTROL INVERTER CAUTION

mainG911852010iAXAH5#,AXAL5#..LHD..EUR201811-202007

TURKEY SPEC

G9200INVERTER ASSY, W/CONVERTER

mainG92A033031iAXAH52,AXAL52202008-202106

mainG92A033032iAXAL52..ARL;AXAH52..RHD..GEN;AXAH52,AXAL52..RHD..X..EUR202107-202111

mainG92A033033iAXAH52..ARL,GCC,GEN202310

mainG92A042070iAXAH54,AXAL54202008-202106

mainG92A042071iAXAH54..(G,P)..GEN;AXAH54..LHD..M..GEN;AXAH54..X..(ARL,GCC);AXAL54..(G,M,P,V)..EUR;AXAH54,AXAL54..LHD..X..EUR;AXAH54..(G,M,P,V)..(ARL,EUR,GCC,SA)202107-202206

mainG92A042072iAXAH54,AXAL54202210-202310

mainG92A042150iAXAL54;AXAH54..LHD..(G,M,P,V)..EUR202310-202503

mainG92A042160iAXAH52..RHD..M..EUR202310-202410

G9214BRACKET, INVERTER, NO.1

mainG921433040iAXAH54..RUS201811-201909

G9215BRACKET, INVERTER, NO.2

mainG921533040iAXAL52;AXAH52..ARL,GCC,GEN;AXAH52..LHD..M..EUR;AXAH52..(G,P,X)..EUR202310

mainG921542010iAXAH54,AXAL54202210-202310

G9221COVER, INVERTER

mainG902247050iAXAH54..RUS201811-201909

9010510526

main90105-10526

9012610036

main90126-10036

9017910088

main90179-10088

9155100840

main91551-00840

9167380616

main91673-80616

9167380620

main91673-80620

13 parts on this diagram · 4 diagrams in section
