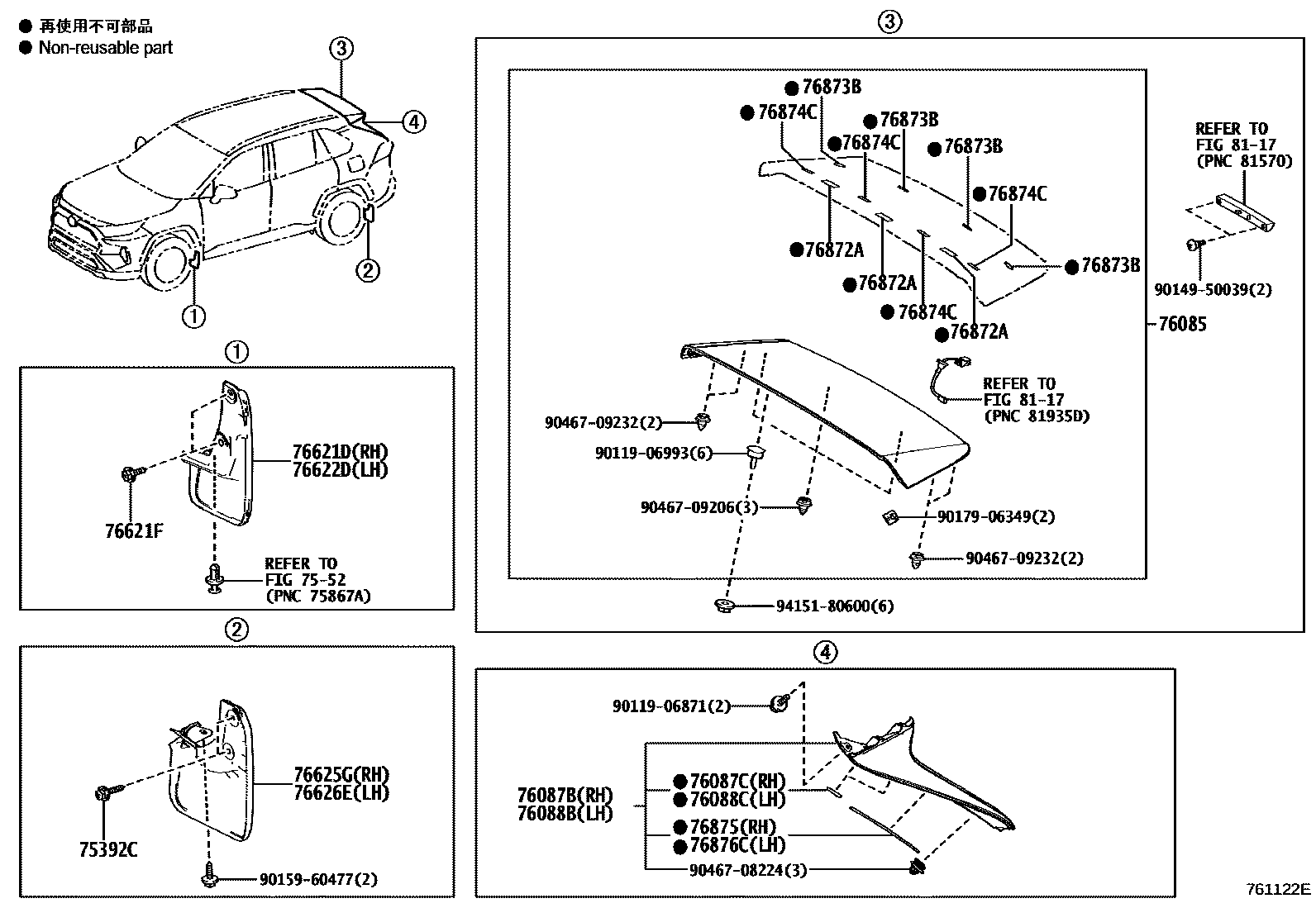

SPOILER & SIDE MUDGUARD

0001 1 0002 1

75392CRETAINER, OUTSIDE MOULDING

main75392-42030×4iAXAH54..RUS;MXAA52..6F..G..SA201901-201909

7552MOULDING

→ Go to FIG 75-52

76085SPOILER SUB-ASSY, REAR

main76085-42908iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)201811-201909

76087BSPOILER SUB-ASSY, REAR SIDE, RH

main76087-42050iMXAA5#..EUR202210

main76087-42060iAXAL54..V;AXAH54..LHD..V;AXAH54..X..GCC;AXAH54..RHD..(V,X);AXAH52..X..(ARL,GCC,GEN);MXAA54..(M,V,X)..(GCC,GEN,SA);AXAA5#,MXAA52..(M,V,X)..(ARL,GCC,GEN)202210-202310

76087CPROTECTOR, REAR SIDE SPOILER

main87268-42010×2iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)201811-201909

76088BSPOILER SUB-ASSY, REAR SIDE, LH

main76088-42050iAXAH5#..G,M,P;AXAH5#..X..EUR;AXAL5#..G,M,P,X;MXAA54..JPP..M..RUS;AXAA5#,MXAA5#..JPP..G..(ARL,GCC,GEN,RUS,SA)202210-202310

main76088-42060iAXAH5#,AXAL5#..X..(ARL,GCC);AXAA5#,MXAA5#..(M,V,X)..(ARL,GCC,GEN,SA)201811-202007

76088CPROTECTOR, REAR SIDE SPOILER

main87268-42010×2iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)201811-201909

76621DMUDGUARD, FRONT FENDER, RH

main76621-42130iAXAH54..RUS;MXAA52..6F..G..SA201901-201909

76621FSCREW, NO.1

main90159-60602×4iAXAH54..RUS;MXAA52..6F..G..SA201901-201909

76622DMUDGUARD, FRONT FENDER, LH

main76622-42130iAXAH54..RUS;MXAA52..6F..G..SA201901-201909

76625GMUDGUARD, QUARTER PANEL, REAR RH

main76625-42160iAXAH54..LHD..EUR;AXAH52,AXAL5#..LHD;AXAA5#,AXAH54,MXAA5#..GCC,GEN; MXAA52..X..ARL;MXAA52..(G,M)..(ARL,SA);AXAA54,AXAH5#,MXAA54..JPP..(ARL,RUS,SA); MXAA54..JPP..X;MXAA54..M..GEN;AXAA54..(M,X)..GEN;AXAA5#,AXAH54..X..GCC;AXAH52,MXAA52..(M,X)..(GCC,GEN)202210-202310

MUD GUARD-WITH(FRONT & REAR); MUD GUARD-WITH(REAR ONLY)

76626EMUDGUARD, QUARTER PANEL, REAR LH

main76626-42220iAXAH54..RUS;MXAA52..6F..G..SA201901-201909

76872APROTECTOR, REAR SPOILER, NO.1

main76872-42060×3iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)201811-201909

76873BPROTECTOR, REAR SPOILER, NO.2

main76873-42020×4iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)201811-201909

76874CPROTECTOR, REAR SPOILER, NO.3

main76874-42020×4iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)201811-201909

76875PROTECTOR, REAR SPOILER, NO.4

main76875-42020iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)201811-201909

76876CPROTECTOR, REAR SPOILER, NO.4

main76875-42020iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)201811-201909

8117CENTER STOP LAMP

→ Go to FIG 81-17

9011906871

main90119-06871

9011906993

main90119-06993

9014950039

main90149-50039

9015960477

main90159-60477

9017906349

main90179-06349

9046708224

main90467-08224

9046709206

main90467-09206

9046709232

main90467-09232

9415180600

main94151-80600

27 parts on this diagram · 2 diagrams in section
