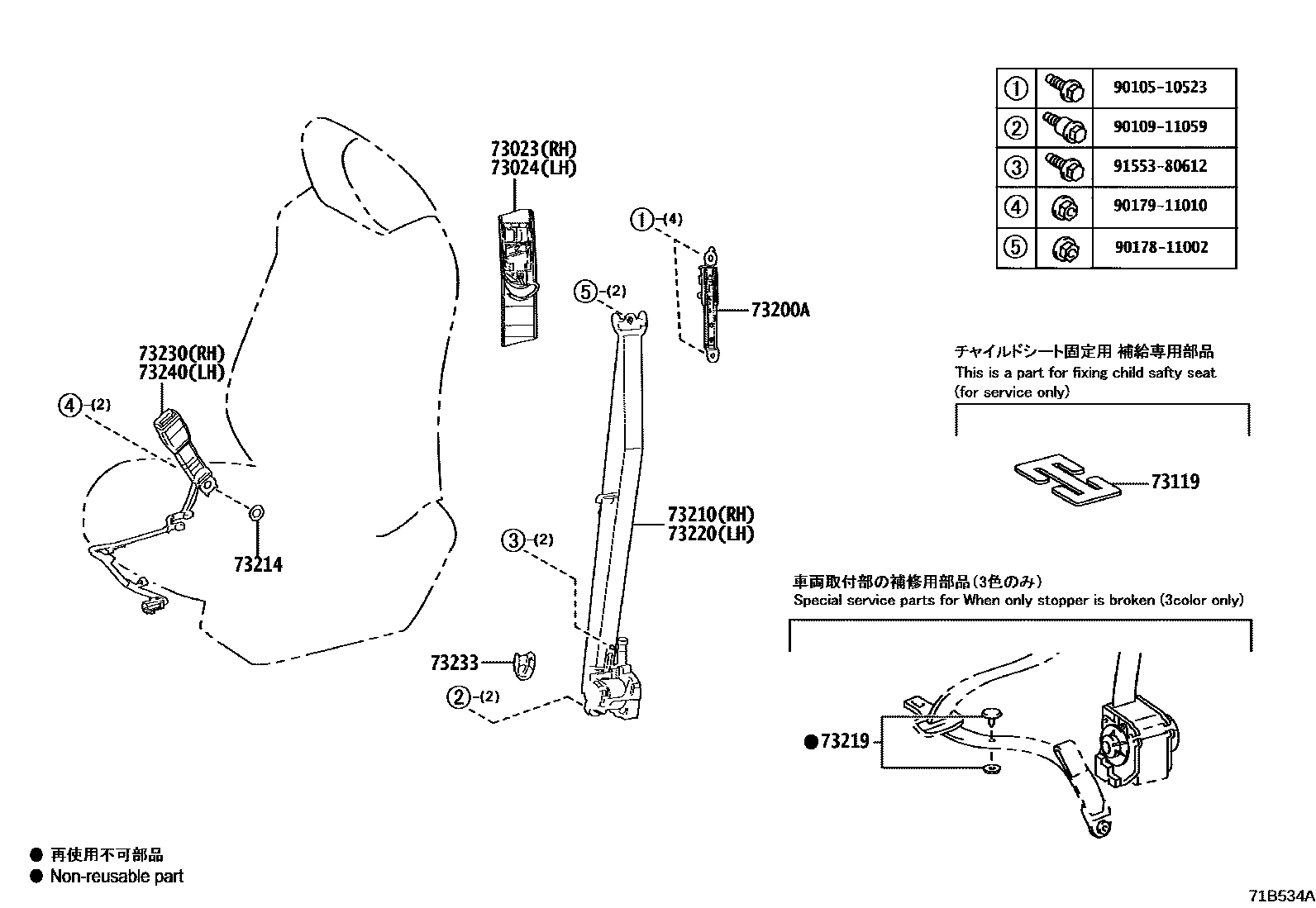

SEAT BELT
73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH
main73023-12030-B0iAXAA54,AXAL5#,MXAA52..X..(ARL,GCC);AXAA54,MXAA52..LHD..(6F,8FC)..X..GEN;AXAA52,AXAH54,MXAA54..LHD..X..(GCC,GEN);AXAH5#,MXAA54..RHD..(V,X)..(ARL,EUR,SA); AXAA54,MXAA54..V..(ARL,GCC,GEN); AXAH5#..M..EUR; MXAA54..RHD..(M,X);AXAH52..LHD..G..GEN;AXAH5#..LHD..X..EUR;AXAA54..RHD..X..GEN;AXAH52..G..(ARL,EUR);MXAA5#..LHD..6F..EUR;AXAH52..M..(ARL,GEN);AXAH54,AXAL5#..G..EUR;MXAA5#..LHD..6F..M..GEN;MXAA52..JPP..CVT..(G,M);MXAA52..CVT..X..(EUR,GEN,SA);MXAA54..JPP..LHD..CVT..(G,M);MXAA52..RHD..6F..(M,X)..(EUR,GEN,SA);AXAA5#,AXAH54,AXAL5#..(G,M)..(ARL,GCC,GEN,SA)201811-202007
LT.GRAY,TRIM1#,2#,4#; LT.GRAY,TRIM1#,20,4#; LT.GRAY,TRIM2#,4#; LT.GRAY,TRIM20,41
BLACK,TRIM20; BLACK,TRIM20,41
73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH
main73024-12020-B0iAXAA54,AXAL5#,MXAA52..X..(ARL,GCC);AXAA54,MXAA52..LHD..(6F,8FC)..X..GEN;AXAA52,AXAH54,MXAA54..LHD..X..(GCC,GEN);AXAH5#,MXAA54..RHD..(V,X)..(ARL,EUR,SA); AXAA54,MXAA54..V..(ARL,GCC,GEN); AXAH5#..M..EUR; MXAA54..RHD..(M,X);AXAH52..LHD..G..GEN;AXAH5#..LHD..X..EUR;AXAA54..RHD..X..GEN;AXAH52..G..(ARL,EUR);MXAA5#..LHD..6F..EUR;AXAH52..M..(ARL,GEN);AXAH54,AXAL5#..G..EUR;MXAA5#..LHD..6F..M..GEN;MXAA52..JPP..CVT..(G,M);MXAA52..CVT..X..(EUR,GEN,SA);MXAA54..JPP..LHD..CVT..(G,M);MXAA52..RHD..6F..(M,X)..(EUR,GEN,SA);AXAA5#,AXAH54,AXAL5#..(G,M)..(ARL,GCC,GEN,SA)201811-202007
LT.GRAY,TRIM1#,2#,4#; LT.GRAY,TRIM1#,20,4#; LT.GRAY,TRIM2#,4#; LT.GRAY,TRIM20,41
BLACK,TRIM20; BLACK,TRIM20,41
73119PLATE, SEAT BELT WEBBING CLIP
main73119-22010iMXAA5#..6F..G..EUR;AXAH52..LHD..G..GEN;MXAA54..JPP..CVT..G;AXAH52..G..(ARL,EUR);AXAA5#..ARL,GCC,GEN,SA;MXAA52..JPP..6F..(M,X);AXAH52,MXAA54..JPP..(M,V,X);AXAH54,AXAL5#,MXAA52..CVT..(ARL,EUR,GCC,GEN,SA)201811-202007
73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
main73200-12070×2iMXAA5#..6F..G..EUR;AXAH52..LHD..G..GEN;MXAA54..JPP..CVT..G;AXAH52..G..(ARL,EUR);AXAA5#..ARL,GCC,GEN,SA;MXAA52..JPP..6F..(M,X);AXAH52,MXAA54..JPP..(M,V,X);AXAH54,AXAL5#,MXAA52..CVT..(ARL,EUR,GCC,GEN,SA)201811-202007
(L)
73210BELT ASSY, FRONT SEAT OUTER, RH
BLACK,TRIM2#
main73210-47281-C7iAXAA54..V..GEN;AXAH5#..RHD..X;MXAA54..RHD..V;AXAA54,MXAA52..LHD..(6F,8FC)..X..GEN;AXAA54,AXAL5#,MXAA52..(V,X)..(ARL,GCC);AXAA52,AXAH54,MXAA54..LHD..(V,X)..(GCC,GEN); AXAH52..M;AXAL5#..G..EUR;MXAA54..RHD..(M,X);AXAH5#..LHD..X..EUR;AXAA54..RHD..X..GEN;AXAH52..LHD..G..GEN;MXAA5#..LHD..6F..EUR;AXAH52..G..(ARL,EUR);MXAA5#..LHD..6F..M..GEN;MXAA52..CVT..X..(EUR,GEN,SA);MXAA54..JPP..LHD..CVT..(G,M);MXAA52..RHD..6F..(M,X)..(EUR,GEN,SA);AXAA5#,AXAL5#..(G,M)..(ARL,GCC,GEN,SA);AXAH54,MXAA52..CVT..(G,M)..(ARL,EUR,GCC,GEN,SA)201811-202007
BLACK,TRIM1#,2#,4#; BLACK,TRIM2#,4#
main73210-47282-C7iAXAA54..LHD..V..GEN;MXAA52..X..(GCC,SA);MXAA54..V..(GEN,SA);AXAA54..V..(ARL,GCC);MXAA52..LHD..6F..X..GEN;MXAA52..CVT..X..(ARL,GEN);AXAA52,AXAH54..(V,X)..(ARL,GCC,SA);AXAA54,AXAH52,MXAA54..X..(ARL,GCC,GEN); AXAH54..G;AXAA54..M..ARL;MXAA5#..G..EUR;AXAH52..(G,M)..ARL;AXAH5#..LHD..M..GEN;MXAA54..CVT..(G,M)..GEN;AXAH54,MXAA54..M..(ARL,GCC);MXAA52..(G,M)..(ARL,GEN,SA);AXAA54..(G,M)..(GCC,GEN,SA);AXAH52,AXAL5#..G..(EUR,GEN);AXAA52,MXAA54..LHD..(6F,8FC)..(G,M)..(GCC,GEN); MXAA52..(M,X)..EUR;AXAH5#..P..(ARL,GEN);AXAH5#,AXAL5#..LHD..X..EUR;AXAH5#,AXAL5#,MXAA54..(M,P,V)..EUR202208-202210
BLACK/BLACK,TRIM1#,2#,4#; BLACK/BLACK,TRIM2#; BLACK/BLACK,TRIM2#,4#
73214PLATE, FRONT SEAT BELT ANCHOR
73219STOPPER, TONGUE PLATE
BLACK
GRAY
main73219-33030iAXAA5#,AXAL5#..JPP;AXAH52..LHD..M..EUR;AXAH52..(G,P,X)..EUR;MXAA52..X..(ARL,GCC,GEN);MXAA52..(G,M)..(ARL,GEN,SA);AXAH54..LHD..(G,M,P,V)..EUR;AXAH5#,MXAA54..JPP..(ARL,GCC,GEN,RUS,SA)202310
BEIGE
73220BELT ASSY, FRONT SEAT OUTER, LH
BLACK,TRIM2#
main73220-47221-C7iAXAA54..G..ARL;MXAA54..G..GCC;MXAA54..RHD..6F;AXAL5#..(G,M)..ARL;AXAH54..RHD..M..GEN;AXAA52,AXAH52..RHD..GEN; AXAH5#,AXAL5#..RHD..X..EUR; MXAA54..V..GCC;AXAA54..RHD..V..GEN;MXAA52..RHD..6F..(ARL,GEN);AXAA52,AXAL5#..X..(ARL,GEN)202008-202111
BLACK,TRIM1#,2#,4#; BLACK,TRIM2#; BLACK,TRIM2#,4#
main73220-47222-C7iAXAH54..RHD..G..EUR; AXAH54..X..EUR;AXAH52..RHD..M..EUR;AXAH54..RHD..(M,P,V)..EUR202310-202410
BLACK/BLACK,TRIM1#,2#,4#; BLACK/BLACK,TRIM2#
73230BELT ASSY, FRONT SEAT INNER, RH
BLACK,TRIM2#
main73230-42260-C0iAXAH5#,AXAL5#..RHD..X..EUR; AXAL5#..M..ARL;MXAA54..RHD..6F;AXAH5#..RHD..M..GEN; AXAL5#..X..ARL;MXAA52..RHD..6F..(ARL,GEN)202008-202111
BLACK,TRIM1#,2#,4#; BLACK,TRIM2#; BLACK,TRIM2#,4#
main73230-42270-C0supersedes 73230-42260-C0iAXAH54,MXAA52..RHD..G..(ARL,GEN);AXAA54,AXAH52,AXAL5#..RHD..G..(ARL,EUR,GEN); AXAH54..P..ARL;AXAH52,AXAL5#..RHD..(P,V); AXAH54..V..ARL;MXAA54..RHD..V;AXAA54..(G,V)..(ARL,SA);AXAH54,MXAA52..(G,V)..SA; AXAL5#..RHD..M202310
BLACK,TRIM1#,2#,4#; BLACK,TRIM2#; BLACK,TRIM2#,4#; FRONT SEAT-DRIVER SEAT:POWER SEAT,BLACK,TRIM2#
main73230-42280-C0iAXAH5#..P..GEN;AXAH5#,AXAL5#,MXAA5#..LHD..(M,P,V,X)..EUR; MXAA54..JPP..LHD..X;MXAA54..LHD..V..GEN;AXAA52,AXAH54..X..GCC;AXAA54,AXAH52,MXAA52..LHD..(V,X)..(GCC,GEN); MXAA54..M..GCC;MXAA54..LHD..(G,M)..GEN;AXAA5#,AXAH5#,MXAA52..LHD..(G,M)..(GCC,GEN)202008-202210
BLACK,TRIM1#,2#,4#; BLACK,TRIM2#; BLACK,TRIM2#,4#
main73230-42340-C0iAXAH5#,AXAL5#..LHD..G..EUR; AXAH5#..LHD..G..GEN; AXAH54,AXAL54..LHD..P..EUR; MXAA54..JPP..G..RUS202210-202310
BLACK,TRIM1#,2#,4#; BLACK,TRIM2#; FRONT SEAT-*DRS:*PSE(MEMORY), *PAS:*PSE&SEAT BELT WARNING-WITH(FRONT SEAT & REAR SEAT),BLACK,TRIM1#,2#,4#; FRONT SEAT-*DRS:*PSE(MEMORY), *PAS:*PSE,BLACK,TRIM2#
73233COVER, LAP BELT OUTER ANCHOR
BLACK,TRIM2#,(L)
main73233-60020-C1×2iAXAA54..V..GEN;AXAH5#..RHD..X;MXAA54..RHD..V;AXAA54,MXAA52..LHD..(6F,8FC)..X..GEN;AXAA54,AXAL5#,MXAA52..(V,X)..(ARL,GCC);AXAA52,AXAH54,MXAA54..LHD..(V,X)..(GCC,GEN); AXAH52..M;AXAL5#..G..EUR;MXAA54..RHD..(M,X);AXAH5#..LHD..X..EUR;AXAA54..RHD..X..GEN;AXAH52..LHD..G..GEN;MXAA5#..LHD..6F..EUR;AXAH52..G..(ARL,EUR);MXAA5#..LHD..6F..M..GEN;MXAA52..CVT..X..(EUR,GEN,SA);MXAA54..JPP..LHD..CVT..(G,M);MXAA52..RHD..6F..(M,X)..(EUR,GEN,SA);AXAA5#,AXAL5#..(G,M)..(ARL,GCC,GEN,SA);AXAH54,MXAA52..CVT..(G,M)..(ARL,EUR,GCC,GEN,SA)201811-202007
BLACK,TRIM1#,2#,4#; BLACK,TRIM2#,4#
73240BELT ASSY, FRONT SEAT INNER, LH
BLACK,TRIM2#
BLACK,TRIM2#
main73230-42260-C0iAXAA5#,AXAH5#,MXAA5#..LHD..M..(GCC,GEN); AXAA5#,AXAH5#,MXAA5#..LHD..X..(GCC,GEN); AXAH54..LHD..M..EUR;MXAA54..JPP..M..RUS;AXAH52,AXAL5#..LHD..(M,X)..EUR202310
BLACK,TRIM1#,2#,4#; BLACK,TRIM2#; BLACK,TRIM2#,4#
BLACK,TRIM1#,2#,4#; BLACK,TRIM2#,4#
main73230-42280-C0iAXAH5#,MXAA52..M..ARL;AXAH54,MXAA52..RHD..(G,M)..GEN;AXAA54,MXAA54..RHD..(G,M)..(ARL,GEN); AXAH5#..P..ARL;AXAH5#,AXAL5#..RHD..(M,P,V)..EUR; MXAA52..RHD..X..(ARL,GEN);AXAA54,AXAH5#,MXAA54..RHD..(V,X)..(ARL,GEN,SA)202210-202310
BLACK,TRIM1#,2#,4#; BLACK,TRIM2#; BLACK,TRIM2#,4#
main73230-42350-C0iAXAA54,AXAH54,MXAA52..G..SA; AXAH52,AXAL5#..RHD..G;AXAH54,MXAA52..G..ARL; AXAL54..RHD..P202310
BLACK,TRIM1#,2#,4#; BLACK,TRIM2#,4#; FRONT SEAT-*DRS:*PSE(MEMORY), *PAS:*PSE,BLACK,TRIM2#
9010510523
main90105-10523
9010911059
main90109-11059
9017811002
main90178-11002
9017911010
main90179-11010
9155380612
main91553-80612
16 parts on this diagram · 4 diagrams in section
