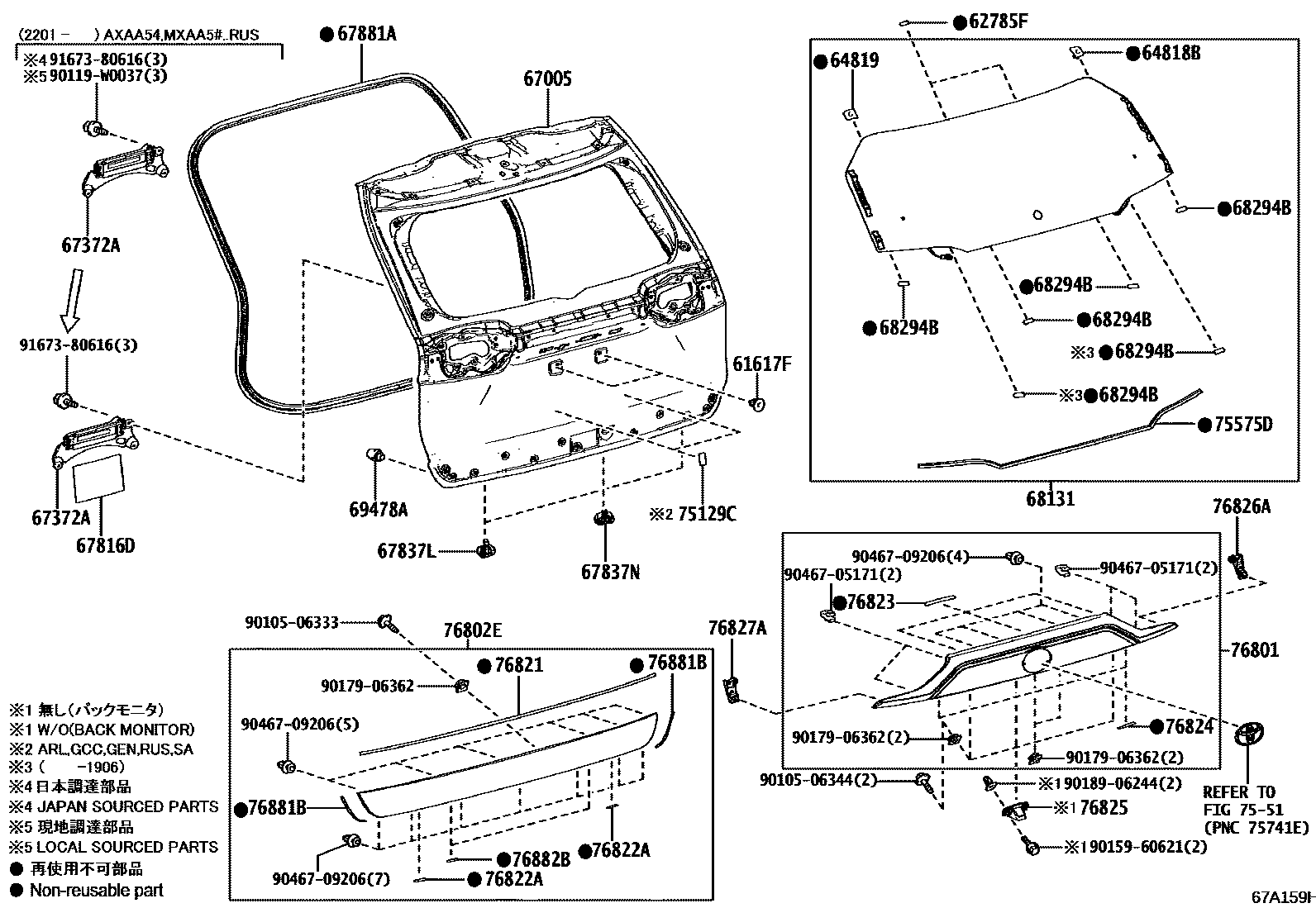

BACK DOOR PANEL & GLASS
61617FRETAINER, BACK DOOR BRACKET
MEXICO SPEC
62785FSPACER, BACK DOOR GLASS
main62785-60030×2iAXAA52..X..GEN;AXAA54..G..ARL;MXAA54..(G,V)..GCC;AXAH54..RHD..M..GEN;AXAA54..RHD..V..GEN;AXAA52,AXAH52..RHD..GEN;MXAA5#..RHD..6F..(ARL,GEN);AXAH5#,AXAL5#..RHD..X..EUR202008-202111
64818BSPACER, BACK DOOR GLASS, NO.1
64819SPACER, BACK WINDOW GLASS, NO.2
main64819-42050iAXAA52..X..GEN;AXAA54..G..ARL;MXAA54..(G,V)..GCC;AXAH54..RHD..M..GEN;AXAA54..RHD..V..GEN;AXAA52,AXAH52..RHD..GEN;MXAA5#..RHD..6F..(ARL,GEN);AXAH5#,AXAL5#..RHD..X..EUR202008-202111
67005PANEL SUB-ASSY, BACK DOOR
KEY PLATE-SMART ENTRY(PUSH START)2
main67005-42650supersedes 67005-42670iAXAH54..RUS;MXAA52..6F..G..SA; MXAA54..6F..G..GEN201811-201909
POWER DOOR LOCK-AUTO LOCK(SPEED) & *PBD(*KPBD); POWER DOOR LOCK-AUTO LOCK(SPEED) & POWER DOOR LOCK
main67005-42670iMXAA52..GCC,GEN;AXAH5#..(G,P)..GEN;MXAA54..GCC,GEN,SA;AXAA54..(M,V,X)..GCC;AXAA52,AXAH5#,AXAL5#..M,X;AXAA54,AXAH54..V..(GEN,SA);AXAA54..(G,M,X)..(ARL,GEN);MXAA5#..JPP..(M,X)..(ARL,RUS)202210-202310
MEXICO SPEC&POWER DOOR LOCK-AUTO LOCK(SPEED) & *PBD(*KPBD); MEXICO SPEC&POWER DOOR LOCK-AUTO LOCK(SPEED) & POWER DOOR LOCK
MEXICO SPEC
67372AWEIGHT, BACK DOOR
main67372-42020iAXAH52..LHD..M..EUR;AXAH52..(G,P,X)..EUR;MXAA52..X..(ARL,GCC,GEN);AXAA54,AXAL5#..EUR,GEN,SA;MXAA52..(G,M)..(ARL,GEN,SA);AXAH54..LHD..(G,M,P,V)..EUR;AXAH5#,MXAA54..JPP..(ARL,GCC,GEN,RUS,SA)202310
67816DSHEET, BACK DOOR PANEL SILENCER
67837LSEAL, DOOR DUST PROOF
67837NSEAL, BACK DOOR DUST PROOF
67881AWEATHERSTRIP, BACK DOOR
main67881-42070iAXAA5#,AXAL5#..JPP;AXAH52..LHD..M..EUR;AXAH52..(G,P,X)..EUR;MXAA52..X..(ARL,GCC,GEN);MXAA52..(G,M)..(ARL,GEN,SA);AXAH54..LHD..(G,M,P,V)..EUR;AXAH5#,MXAA54..JPP..(ARL,GCC,GEN,RUS,SA)202310
68131GLASS, BACK DOOR
REFER TO PNC 86466D
main68105-42220supersedes 68105-42230iAXAA54..LHD..V..GEN;AXAA5#,AXAH54,MXAA52..G..GEN;AXAH52,MXAA54..LHD..CVT..(G,V)..GEN; MXAA54..GCC;MXAA54..(M,X)..GEN;AXAA5#,AXAH54..(G,V)..GCC;AXAA5#,AXAH5#,AXAL5#,MXAA52..(M,X)..(ARL,GCC,GEN,SA)201811-202007
REAR SIDE GLASS-REINFORCED UV-CUT(GREEN)
main68105-42230iAXAH52..G..ARL;AXAH52..LHD..G..GEN;AXAA5#,AXAH54,AXAL5#,MXAA5#..(ATM,CVT)..(G,V)..(ARL,GEN,SA); MXAA54..RHD..M;AXAA54,MXAA52..LHD..X..GEN;AXAA52,MXAA54..LHD..(M,X)..GEN;AXAA54,AXAH5#,AXAL5#,MXAA52..M..(ARL,GEN)201811-202007
REAR SIDE GLASS-REINFORCED(GRAY)
main68105-42320iAXAA5#,AXAH54..GCC; AXAH54..GCC; AXAL5#..G..EUR;AXAH5#..RHD..G..EUR; AXAL5#..M..EUR;AXAL5#..LHD..X;AXAH5#..RHD..M..EUR202008-202210
REAR SIDE GLASS-REINFORCED UV-CUT(GREEN),REFER TO PNC 86466D; REFER TO PNC 86466D; SAUDI ARABIA SPEC&AUDIO-6SPEAKER 7INCH T-DAB DVD, U.A.E.,REFER TO PNC 86466D; U.A.E. SPEC&AUDIO-6SPEAKER 7INCH T-DAB DVD, U.A.E.,REFER TO PNC 86466D
main68105-42330iAXAH5#..(P,V)..ARL;AXAL5#..(G,P,V)..EUR;AXAH5#..LHD..(P,V)..EUR;AXAH5#..RHD..(G,P,V)..EUR; AXAL5#..M..EUR;AXAH5#..RHD..M..EUR202008-202210
REAR SIDE GLASS-REINFORCED(GRAY),REFER TO PNC 86466D; REFER TO PNC 86466D
AUSTRALIA SPEC&AUDIO-6SPEAKER 8INCH DAB, AUSTRALIA; NEW ZEALAND SPEC&AUDIO-6SPEAKER 8INCH DAB, AUSTRALIA
main68105-42250iAXAA54,AXAH54,MXAA52..(G,V)..ARL; AXAA54,AXAH54,MXAA52..M..ARL; AXAA54..V..ARL;AXAH5#,MXAA52..G..ARL; AXAH5#,MXAA52..M..ARL201901-201912
AUSTRALIA SPEC&AUDIO-6SPEAKER 8INCH DAB, AUSTRALIA; AUSTRALIA SPEC&AUDIO-JBL 8INCH DAB, AUSTRALIA; AUSTRALIA SPEC&REAR SIDE GLASS-REINFORCED(GRAY)&AUDIO-6SPEAKER 8INCH DAB, AUSTRALIA; NEW ZEALAND SPEC&AUDIO-6SPEAKER 8INCH DAB, AUSTRALIA; NEW ZEALAND SPEC&AUDIO-JBL 8INCH DAB, AUSTRALIA; NEW ZEALAND SPEC&REAR SIDE GLASS-REINFORCED(GRAY)&AUDIO-6SPEAKER 8INCH DAB, AUSTRALIA
main68105-42270iAXAH5#,MXAA5#..LHD..(M,X)..EUR; AXAH5#,MXAA5#..LHD..G..EUR; AXAH5#..RHD..G..EUR; MXAA52..RHD..6F..EUR;AXAH5#..RHD..(M,X)..EUR201811-201910
GERMANY SPEC&ANTI-THEFT SYSTEM-*IM & *DOL & ALARM & *GBS(QATER/*BDO)); GERMANY SPEC&ANTI-THEFT SYSTEM-*IM & *DOL & ALARM & *GBS(QATER/*BDO))&REAR SIDE GLASS-REINFORCED(GRAY); UNITED KINGDOM, MALTA SPEC; UNITED KINGDOM, MALTA SPEC&REAR SIDE GLASS-REINFORCED(GRAY)
main68105-42280supersedes 68105-42310iAXAH5#,MXAA5#..LHD..(M,X)..EUR; AXAH5#,MXAA5#..LHD..G..EUR; AXAH5#,MXAA5#..LHD..M..EUR; AXAL5#..LHD..X202008-202112
ANTI-THEFT SYSTEM-*IM & *D0L & ALARM & *GBS(QATER/*BDO))&REAR SIDE GLASS-REINFORCED(GRAY),REFER TO PNC 86466D; FRANCE SPEC&ANTI-THEFT SYSTEM-*IM & *D0L & ALARM & *GBS(QATER/*BDO))&AUDIO-6SPEAKER 8INCH DAB, EUROPE,REFER TO PNC 86466D; FRANCE SPEC&ANTI-THEFT SYSTEM-*IM & *D0L & ALARM & *GBS(QATER/*BDO))&AUDIO-JBL 8INCH DAB, EUROPE,REFER TO PNC 86466D; FRANCE SPEC&ANTI-THEFT SYSTEM-*IM & *D0L & ALARM & *GBS(QATER/*BDO))&REAR SIDE GLASS-REINFORCED(GRAY)&AUDIO-6SPEAKER 8INCH DAB, EUROPE,REFER TO PNC 86466D; FRANCE SPEC&ANTI-THEFT SYSTEM-*IM & *D0L & ALARM & *GBS(QATER/*BDO))&REAR SIDE GLASS-REINFORCED(GRAY)&AUDIO-JBL 8INCH DAB, EUROPE,REFER TO PNC 86466D; GERMANY SPEC&ANTI-THEFT SYSTEM-*IM & *D0L & ALARM & *GBS(QATER/*BDO))&AUDIO-6SPEAKER 8INCH DAB, EUROPE,REFER TO PNC 86466D; GERMANY SPEC&ANTI-THEFT SYSTEM-*IM & *D0L & ALARM & *GBS(QATER/*BDO))&AUDIO-JBL 8INCH DAB, EUROPE,REFER TO PNC 86466D; GERMANY SPEC&ANTI-THEFT SYSTEM-*IM & *D0L & ALARM & *GBS(QATER/*BDO))&REAR SIDE GLASS-REINFORCED(GRAY)&AUDIO-6SPEAKER 8INCH DAB, EUROPE,REFER TO PNC 86466D; GERMANY SPEC&ANTI-THEFT SYSTEM-*IM & *D0L & ALARM & *GBS(QATER/*BDO))&REAR SIDE GLASS-REINFORCED(GRAY)&AUDIO-JBL 8INCH DAB, EUROPE,REFER TO PNC 86466D; ITALY SPEC&ANTI-THEFT SYSTEM-*IM & *D0L & ALARM & *GBS(QATER/*BDO))&AUDIO-6SPEAKER8INCH DAB, EUROPE,REFER TO PNC 86466D; ITALY SPEC&ANTI-THEFT SYSTEM-*IM & *D0L & ALARM & *GBS(QATER/*BDO))&AUDIO-JBL 8INCH DAB, EUROPE,REFER TO PNC 86466D; ITALY SPEC&ANTI-THEFT SYSTEM-*IM & *D0L & ALARM & *GBS(QATER/*BDO))&REAR SIDE GLASS-REINFORCED(GRAY)&AUDIO-6SPEAKER 8INCH DAB, EUROPE,REFER TO PNC 86466D; ITALY SPEC&ANTI-THEFT SYSTEM-*IM & *D0L & ALARM & *GBS(QATER/*BDO))&REAR SIDE GLASS-REINFORCED(GRAY)&AUDIO-JBL 8INCH DAB, EUROPE,REFER TO PNC 86466D; NORWAY,SWEDEN,FINLAND,DENMARK SPEC&ANTI-THEFT SYSTEM-*IM & *D0L & ALARM & *GBS(QATER/*BDO))&AUDIO-6SPEAKER 8INCH DAB, EUROPE,REFER TO PNC 86466D; NORWAY,SWEDEN,FINLAND,DENMARK SPEC&ANTI-THEFT SYSTEM-*IM & *D0L & ALARM & *GBS(QATER/*BDO))&AUDIO-JBL 8INCH DAB, EUROPE,REFER TO PNC 86466D; NORWAY,SWEDEN,FINLAND,DENMARK SPEC&ANTI-THEFT SYSTEM-*IM & *D0L & ALARM & *GBS(QATER/*BDO))&REAR SIDE GLASS-REINFORCED(GRAY)&AUDIO-6SPEAKER 8INCH DAB, EUROPE,REFERTO PNC 86466D; NORWAY,SWEDEN,FINLAND,DENMARK SPEC&ANTI-THEFT SYSTEM-*IM & *D0L & ALARM & *GBS(QATER/*BDO))&REAR SIDE GLASS-REINFORCED(GRAY)&AUDIO-JBL 8INCH DAB, EUROPE,REFER TO PNC 86466D; SPAIN,GIBRALTAR SPEC&ANTI-THEFT SYSTEM-*IM & *D0L & ALARM & *GBS(QATER/*BDO))&AUDIO-6SPEAKER 8INCH DAB, EUROPE,REFER TO PNC 86466D; SPAIN,GIBRALTAR SPEC&ANTI-THEFT SYSTEM-*IM & *D0L & ALARM & *GBS(QATER/*BDO))&AUDIO-JBL 8INCH DAB, EUROPE,REFER TO PNC 86466D; SPAIN,GIBRALTAR SPEC&ANTI-THEFT SYSTEM-*IM & *D0L & ALARM & *GBS(QATER/*BDO))&REARSIDE GLASS-REINFORCED(GRAY)&AUDIO-6SPEAKER 8INCH DAB, EUROPE,REFER TO PNC 86466D; SPAIN,GIBRALTAR SPEC&ANTI-THEFT SYSTEM-*IM & *D0L & ALARM & *GBS(QATER/*BDO))&REARSIDE GLASS-REINFORCED(GRAY)&AUDIO-JBL 8INCH DAB, EUROPE,REFER TO PNC 86466D; TURKEY SPEC&ANTI-THEFT SYSTEM-*IM & *D0L & ALARM & *GBS(QATER/*BDO))&AUDIO-6SPEAKER 8INCH DAB, EUROPE,REFER TO PNC 86466D; TURKEY SPEC&ANTI-THEFT SYSTEM-*IM & *D0L & ALARM & *GBS(QATER/*BDO))&AUDIO-JBL 8INCH DAB, EUROPE,REFER TO PNC 86466D; TURKEY SPEC&ANTI-THEFT SYSTEM-*IM & *D0L & ALARM & *GBS(QATER/*BDO))&REAR SIDE GLASS-REINFORCED(GRAY)&AUDIO-6SPEAKER 8INCH DAB, EUROPE,REFER TO PNC 86466D; TURKEY SPEC&ANTI-THEFT SYSTEM-*IM & *D0L & ALARM & *GBS(QATER/*BDO))&REAR SIDE GLASS-REINFORCED(GRAY)&AUDIO-JBL 8INCH DAB, EUROPE,REFER TO PNC 86466D; WVTA COUNTRY, W(ROAD SIGN ASSIST), EU&ANTI-THEFT SYSTEM-*IM & *D0L & ALARM & *GBS(QATER/*BDO))&AUDIO-6SPEAKER 8INCH DAB, EUROPE,REFER TO PNC 86466D; WVTA COUNTRY, W(ROAD SIGN ASSIST), EU&ANTI-THEFT SYSTEM-*IM & *D0L & ALARM & *GBS(QATER/*BDO))&AUDIO-JBL 8INCH DAB, EUROPE,REFER TO PNC 86466D; WVTA COUNTRY, W(ROAD SIGN ASSIST), EU&ANTI-THEFT SYSTEM-*IM & *D0L & ALARM & *GBS(QATER/*BDO))&REAR SIDE GLASS-REINFORCED(GRAY)&AUDIO-6SPEAKER 8INCH DAB, EUROPE,REFER TO PNC 86466D; WVTA COUNTRY, W(ROAD SIGN ASSIST), EU&ANTI-THEFT SYSTEM-*IM & *D0L & ALARM & *GBS(QATER/*BDO))&REAR SIDE GLASS-REINFORCED(GRAY)&AUDIO-JBL 8INCH DAB, EUROPE,REFER TOPNC 86466D; WVTA COUNTRY, W/O (ROAD SIGN ASSIST)&ANTI-THEFT SYSTEM-*IM & *D0L & ALARM & *GBS(QATER/*BDO))&AUDIO-6SPEAKER 8INCH DAB, EUROPE,REFER TO PNC 86466D; WVTA COUNTRY, W/O (ROAD SIGN ASSIST)&ANTI-THEFT SYSTEM-*IM & *D0L & ALARM & *GBS(QATER/*BDO))&AUDIO-JBL 8INCH DAB, EUROPE,REFER TO PNC 86466D; WVTA COUNTRY, W/O (ROAD SIGN ASSIST)&ANTI-THEFT SYSTEM-*IM & *D0L & ALARM & *GBS(QATER/*BDO))&REAR SIDE GLASS-REINFORCED(GRAY)&AUDIO-6SPEAKER 8INCH DAB, EUROPE,REFER TO PNC 86466D; WVTA COUNTRY, W/O (ROAD SIGN ASSIST)&ANTI-THEFT SYSTEM-*IM & *D0L & ALARM & *GBS(QATER/*BDO))&REAR SIDE GLASS-REINFORCED(GRAY)&AUDIO-JBL 8INCH DAB, EUROPE,REFER TOPNC 86466D; WVTA COUNTRY,W(ROAD SIGN ASSIST)&ANTI-THEFT SYSTEM-*IM & *D0L & ALARM & *GBS(QATER/*BDO))&AUDIO-6SPEAKER 8INCH DAB, EUROPE,REFER TO PNC 86466D; WVTA COUNTRY,W(ROAD SIGN ASSIST)&ANTI-THEFT SYSTEM-*IM & *D0L & ALARM & *GBS(QATER/*BDO))&AUDIO-JBL 8INCH DAB, EUROPE,REFER TO PNC 86466D; WVTA COUNTRY,W(ROAD SIGN ASSIST)&ANTI-THEFT SYSTEM-*IM & *D0L & ALARM & *GBS(QATER/*BDO))&REAR SIDE GLASS-REINFORCED(GRAY)&AUDIO-6SPEAKER 8INCH DAB, EUROPE,REFER TOPNC 86466D; WVTA COUNTRY,W(ROAD SIGN ASSIST)&ANTI-THEFT SYSTEM-*IM & *D0L & ALARM & *GBS(QATER/*BDO))&REAR SIDE GLASS-REINFORCED(GRAY)&AUDIO-JBL 8INCH DAB, EUROPE,REFER TO PNC86466D
BRAZIL SPEC&ANTI-THEFT SYSTEM-IMMOBILIZER & HORN&REAR SIDE GLASS-REINFORCED UV-CUT(GREEN)&AUDIO-6SPEAKER 8INCH, LATIN AMERICA,REFER TO PNC 86466D
main68105-42310iAXAH5#,MXAA5#..LHD..(G,P,V)..EUR; AXAH5#,MXAA5#..LHD..G..EUR; AXAH5#,MXAA5#..LHD..M..EUR; AXAH5#,MXAA52..LHD..(G,V)..EUR; AXAH5#..LHD..M..EUR202112-202210
AUDIO-4SPEAKER(AUDIO LESS),REFER TO PNC 86466D; EXCEPT WVTA COUNTRY&AUDIO-6SPEAKER 8INCH, EUROPE,REFER TO PNC 86466D; EXCEPT WVTA COUNTRY&REAR SIDE GLASS-REINFORCED(GRAY)&AUDIO-6SPEAKER 8INCH, EUROPE,REFER TO PNC 86466D; ISRAEL SPEC&AUDIO-6SPEAKER 8INCH, EUROPE,REFER TO PNC 86466D; ISRAEL SPEC&REAR SIDE GLASS-REINFORCED(GRAY)&AUDIO-6SPEAKER 8INCH, EUROPE,REFER TOPNC 86466D; REAR SIDE GLASS-REINFORCED(GRAY)&AUDIO-4SPEAKER(AUDIO LESS),REFER TO PNC 86466D; TURKEY SPEC&AUDIO-6SPEAKER 8INCH, EUROPE,REFER TO PNC 86466D; TURKEY SPEC&REAR SIDE GLASS-REINFORCED(GRAY)&AUDIO-6SPEAKER 8INCH, EUROPE,REFER TOPNC 86466D; UKRAINE,MOLDOVA SPEC&AUDIO-6SPEAKER 8INCH, EUROPE,REFER TO PNC 86466D; UKRAINE,MOLDOVA SPEC&REAR SIDE GLASS-REINFORCED(GRAY)&AUDIO-6SPEAKER 8INCH, EUROPE,REFER TO PNC 86466D
ECUADOR SPEC&AUDIO-6SPEAKER 8INCH, LATIN AMERICA,REFER TO PNC 86466D; ECUADOR SPEC&AUDIO-6SPEAKER(AUDIO LESS),REFER TO PNC 86466D; ECUADOR SPEC&REAR SIDE GLASS-REINFORCED UV-CUT(GREEN)&AUDIO-6SPEAKER 8INCH, LATINAMERICA,REFER TO PNC 86466D; ECUADOR SPEC&REAR SIDE GLASS-REINFORCED UV-CUT(GREEN)&AUDIO-6SPEAKER(AUDIO LESS),REFER TO PNC 86466D
ECUADOR SPEC&AUDIO-4SPEAKER(AUDIO LESS),REFER TO PNC 86466D; ECUADOR SPEC&AUDIO-6SPEAKER 7INCH DVD, LATIN AMERICA,REFER TO PNC 86466D; ECUADOR SPEC&REAR SIDE GLASS-REINFORCED(GRAY)&AUDIO-4SPEAKER(AUDIO LESS),REFER TOPNC 86466D; ECUADOR SPEC&REAR SIDE GLASS-REINFORCED(GRAY)&AUDIO-6SPEAKER 7INCH DVD, LATIN AMERICA,REFER TO PNC 86466D
68294BDAM, BACK DOOR GLASS ADHESIVE
main68294-26030×4iAXAA5#,AXAL5#..JPP;AXAH52..LHD..M..EUR;AXAH52..(G,P,X)..EUR;MXAA52..X..(ARL,GCC,GEN);MXAA52..(G,M)..(ARL,GEN,SA);AXAH54..LHD..(G,M,P,V)..EUR;AXAH5#,MXAA54..JPP..(ARL,GCC,GEN,RUS,SA)202310
69478ACUSHION, BACK DOOR LOWER STOPPER
main69478-42010×2iAXAA54..LHD..V;AXAH52..X..ARL;AXAH54..G..GEN;AXAL5#..(G,M)..EUR;AXAH54..LHD..M..GEN;AXAA54..(M,V,X)..ARL;AXAH54..X..(ARL,GCC);MXAA52..LHD..6F..GEN;MXAA54..JPP..CVT..(M,X);AXAH5#,AXAL5#..LHD..X..EUR;MXAA54..(G,V)..(EUR,GEN,SA);MXAA54..JPP..LHD..6F..(M,X);AXAH5#..(G,M)..(ARL,EUR,GCC);AXAA54..(G,M,X)..(GCC,GEN,SA);MXAA52..CVT..(ARL,EUR,GEN,SA);AXAA52,AXAH52..LHD..(G,M)..GEN;AXAA52,MXAA52..(6F,8FC)..(EUR,GCC,SA)202112-202210
main69478-42020×2iAXAA54..LHD..V;AXAH54..G..GEN;MXAA52..JPP..CVT;AXAL5#..(G,M)..EUR;AXAH54..LHD..M..GEN;AXAA54..(M,V,X)..ARL;AXAH5#..X..(ARL,GCC);MXAA52..LHD..6F..GEN;MXAA54..JPP..CVT..(M,X);AXAH5#,AXAL5#..LHD..X..EUR;MXAA54..(G,V)..(EUR,GEN,SA);MXAA54..JPP..LHD..6F..(M,X);AXAH5#..(G,M)..(ARL,EUR,GCC);AXAA54..(G,M,X)..(GCC,GEN,SA);AXAA52,AXAH52..LHD..(G,M)..GEN;AXAA52,MXAA52..(6F,8FC)..(EUR,GCC,SA)202012-202112
75129CCUSHION, REAR LICENCE PLATE
main75129-30010×2iMXAA52..X..(ARL,GCC,GEN);MXAA52..(G,M)..(ARL,GEN,SA);AXAA5#,AXAH5#,MXAA54..ARL,GCC,GEN,SA202210-202310
7551EMBLEM & NAME PLATE
75575DMOULDING, BACK WINDOW, LOWER
main75575-42040iMXAA5#..6F..G..EUR;AXAH52..LHD..G..GEN;MXAA54..JPP..CVT..G;AXAH52..G..(ARL,EUR);AXAA5#..ARL,GCC,GEN,SA;MXAA52..JPP..6F..(M,X);AXAH52,MXAA54..JPP..(M,V,X);AXAH54,AXAL5#,MXAA52..CVT..(ARL,EUR,GCC,GEN,SA)201811-202007
76801GARNISH SUB-ASSY, BACK DOOR, OUTSIDE
main76801-42241-A0iAXAA54..V..GCC;AXAH52..M..GEN;AXAH54..X..EUR;MXAA54..RHD..(M,X);AXAH52,AXAL5#..X..(EUR,GCC);MXAA54..LHD..(M,V,X)..(GCC,GEN);AXAA5#,AXAH54,MXAA52..(M,X)..(GCC,GEN); AXAH52..GCC;AXAH52..M..GEN;AXAA54..V..GCC;AXAH54..X..EUR;MXAA54..RHD..(M,X);MXAA54..LHD..(M,V,X)..(GCC,GEN);AXAA5#,AXAH54,MXAA52..(M,X)..(GCC,GEN); MXAA52..(M,X)..ARL;AXAA54,AXAH5#,MXAA54..(M,V,X)..(ARL,SA); MXAA54..LHD..(M,V,X)..GEN;AXAA54,AXAH52,MXAA52..LHD..(M,X)..GEN; MXAA54..LHD..V202210-202310
BACK MONITOR-WITH(BACK GUIDE MONITOR),SUPER WHITE 2,040; BACK MONITOR-WITH(BACK MONITOR FOR ACCESSORY),SUPER WHITE 2,040; BACK MONITOR-WITH(BACK MONITOR),SUPER WHITE 2,040; BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),SUPER WHITE 2,040; SUPER WHITE 2,040
BACK MONITOR-WITH(BACK GUIDE MONITOR),PLATINUM WHITE PEARL MC.,089; BACK MONITOR-WITH(BACK MONITOR),PLATINUM WHITE PEARL MC.,089; PLATINUM WHITE PEARL MC.,089
BACK MONITOR-WITH(BACK GUIDE MONITOR),SILVER ME.,1D6; BACK MONITOR-WITH(BACK MONITOR),SILVER ME.,1D6; SILVER ME.,1D6
main76801-42241-B1iAXAA54,AXAH5#,MXAA52..(M,X)..ARL; AXAA54,AXAH52,MXAA5#..LHD..(M,V,X)..GEN; AXAA54,MXAA54..LHD..V..GEN; AXAH52..GCC;AXAH52..M..GEN;AXAA5#,AXAH54,MXAA5#..(ATM,CVT)..(M,V,X)..(GCC,GEN); AXAH54..LHD..V;AXAH54..V..(ARL,SA);AXAA54,AXAL54,MXAA54..V..(ARL,EUR,SA); MXAA52..6F..X..GEN;MXAA54..RHD..(M,X);MXAA54..JPP..LHD..(V,X);AXAH52,AXAL5#..X..(EUR,GCC);AXAH52,MXAA54..LHD..CVT..M..(GCC,GEN);AXAA5#,AXAH54,MXAA52..(ATM,CVT)..(M,V,X)..(GCC,GEN)202310
BACK MONITOR-WITH(BACK GUIDE MONITOR),GRAY ME.,1G3; BACK MONITOR-WITH(BACK MONITOR FOR ACCESSORY),GRAY ME.,1G3; BACK MONITOR-WITH(BACK MONITOR),GRAY ME.,1G3; BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),GRAY ME.,1G3; GRAY ME.,1G3; GRAY ME.,1G3 ,2QX
main76801-42241-C0iAXAA54,AXAH5#,MXAA52..(M,X)..ARL; AXAA54,AXAH52,MXAA5#..LHD..(M,V,X)..GEN; AXAA54,AXAH54,MXAA54..V..(ARL,SA); AXAA54,MXAA54..LHD..V..GEN; AXAH52..GCC;AXAH52..M..GEN;AXAH54..X..EUR;AXAA5#,AXAH54,MXAA5#..(M,V,X)..(GCC,GEN); AXAH52..M..GEN;AXAH54..X..EUR;MXAA54..RHD..(M,X);AXAH52,AXAL5#..X..(EUR,GCC);MXAA54..LHD..(M,V,X)..(GCC,GEN);AXAA5#,AXAH54,MXAA52..(M,V,X)..(GCC,GEN); AXAH54,AXAL54..V..EUR202210-202310
ATTITUDE BLACK MC.,218; ATTITUDE BLACK MC.,218 ,2QW; BACK MONITOR-WITH(BACK GUIDE MONITOR),ATTITUDE BLACK MC.,218; BACK MONITOR-WITH(BACK GUIDE MONITOR),ATTITUDE BLACK MC.,218 ,2QW; BACK MONITOR-WITH(BACK MONITOR FOR ACCESSORY),ATTITUDE BLACK MC.,218; BACK MONITOR-WITH(BACK MONITOR),ATTITUDE BLACK MC.,218; BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),ATTITUDE BLACK MC.,218; BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),ATTITUDE BLACK MC.,218 ,2QW
main76801-42241-D0iAXAA54,AXAH52,MXAA5#..LHD..(M,V,X)..GEN; AXAH52..GCC;AXAH52..M..GEN;AXAH54..X..EUR;AXAA5#,AXAH54,MXAA5#..(M,V,X)..(GCC,GEN); MXAA52..(M,X)..ARL;AXAA54,AXAH5#,MXAA54..(M,V,X)..(ARL,SA); MXAA54..LHD..V;AXAA54,AXAH54,AXAL54..V..(EUR,GEN); MXAA54..RHD..(M,X);AXAH5#..M..(GCC,GEN);MXAA54..LHD..(M,V,X)..(GCC,GEN);AXAH5#,AXAL5#..(V,X)..(EUR,GCC);AXAA5#,MXAA52..(M,V,X)..(GCC,GEN)202210-202310
BACK MONITOR-WITH(BACK GUIDE MONITOR),RED MC.,3T3; BACK MONITOR-WITH(BACK MONITOR FOR ACCESSORY),RED MC.,3T3; BACK MONITOR-WITH(BACK MONITOR),RED MC.,3T3; BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),RED MC.,3T3; RED MC.,3T3
main76801-42241-G1iAXAA54,AXAH5#,MXAA52..(M,X)..ARL; AXAA54,AXAH52,MXAA5#..LHD..(M,V,X)..GEN; AXAA54,AXAH54,MXAA54..V..(ARL,SA); AXAA54,MXAA54..LHD..V..GEN; AXAH52..GCC;AXAH52..M..GEN;AXAH54..X..EUR;AXAA5#,AXAH54,MXAA5#..(M,V,X)..(GCC,GEN); AXAH52..M..GEN;AXAH54..X..EUR;MXAA54..RHD..(M,X);AXAH52,AXAL5#..X..(EUR,GCC);MXAA54..LHD..(M,V,X)..(GCC,GEN);AXAA5#,AXAH54,MXAA52..(M,V,X)..(GCC,GEN); AXAH54,AXAL54..V..EUR202210-202310
BACK MONITOR-WITH(BACK GUIDE MONITOR),URBAN KHAKI,2QU ,6X3; BACK MONITOR-WITH(BACK GUIDE MONITOR),URBAN KHAKI,6X3; BACK MONITOR-WITH(BACK MONITOR FOR ACCESSORY),URBAN KHAKI,6X3; BACK MONITOR-WITH(BACK MONITOR),URBAN KHAKI,6X3; BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),URBAN KHAKI,2QU ,6X3; BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),URBAN KHAKI,6X3; URBAN KHAKI,2QU ,6X3; URBAN KHAKI,6X3
main76801-42241-J1iAXAA54,AXAH5#,MXAA52..(M,X)..ARL; AXAA54,AXAH52,MXAA5#..LHD..(M,X)..GEN; AXAH52..GCC;AXAH52..M..GEN;AXAH54..X..EUR;AXAA5#,AXAH54,MXAA5#..(M,X)..(GCC,GEN); AXAH52..M..GEN;AXAH54..X..EUR;AXAH52,AXAL5#..X..(EUR,GCC);AXAA5#,AXAH54,MXAA5#..(M,X)..(GCC,GEN)202210-202310
BACK MONITOR-WITH(BACK GUIDE MONITOR),DK. BLUE MC.,8X8; BACK MONITOR-WITH(BACK MONITOR FOR ACCESSORY),DK. BLUE MC.,8X8; BACK MONITOR-WITH(BACK MONITOR),DK. BLUE MC.,8X8; DK. BLUE MC.,8X8
main76801-42241-J3iAXAA54,AXAH5#,MXAA52..(M,X)..ARL; AXAA54,AXAH52,MXAA5#..LHD..(M,V,X)..GEN; AXAA54,AXAH54,MXAA54..V..(ARL,SA); AXAA54,MXAA54..LHD..V..GEN; AXAH52..GCC;AXAH52..M..GEN;AXAA5#,AXAH54,MXAA5#..(M,V,X)..(GCC,GEN); AXAH52..GCC;AXAH52..M..GEN;MXAA54..RHD..(M,X);MXAA54..LHD..(M,V,X)..(GCC,GEN);AXAA5#,AXAH54,MXAA52..(M,V,X)..(GCC,GEN)202210-202310
BACK MONITOR-WITH(BACK GUIDE MONITOR),GRAYISH BLUE,8W2; BACK MONITOR-WITH(BACK MONITOR FOR ACCESSORY),GRAYISH BLUE,8W2; BACK MONITOR-WITH(BACK MONITOR),GRAYISH BLUE,8W2; BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),GRAYISH BLUE,8W2; GRAYISH BLUE,2TU ,8W2; GRAYISH BLUE,8W2
main76801-42261-A2iAXAA5#,AXAH5#,MXAA5#..G..(GCC,GEN); AXAA54,AXAH5#,MXAA5#..LHD..G..GEN; MXAA54..JPP..RUS;AXAH52..LHD..M..EUR;AXAH52..G..(ARL,EUR);AXAH54..LHD..(G,M)..EUR;AXAH54,MXAA52..G..(ARL,SA);AXAA54,AXAL5#..(G,M)..(EUR,SA)202410
BACK MONITOR-WITH(BACK GUIDE MONITOR),SUPER WHITE 2,040; BACK MONITOR-WITH(BACK MONITOR FOR ACCESSORY),SUPER WHITE 2,040; BACK MONITOR-WITH(BACK MONITOR),SUPER WHITE 2,040; BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),SUPER WHITE 2,040; SUPER WHITE 2,040
main76801-42261-A3iAXAA54,AXAH5#,MXAA5#..LHD..G..GEN; AXAH5#,AXAL5#..M..EUR;AXAA5#,AXAH5#,MXAA5#..G..(GCC,GEN); AXAH5#,AXAL5#..M..EUR;AXAA54,AXAH5#,MXAA5#..LHD..G..GEN; AXAH54..LHD..M..EUR;AXAA5#,AXAH5#,MXAA5#..G..(GCC,GEN); MXAA54..JPP..RUS;MXAA52..G..(ARL,SA);AXAA54,AXAH5#,AXAL5#..G..(ARL,EUR,SA)202210-202310
BACK MONITOR-WITH(BACK GUIDE MONITOR),PLATINUM WHITE PEARL MC.,089; BACK MONITOR-WITH(BACK MONITOR FOR ACCESSORY),PLATINUM WHITE PEARL MC.,089; BACK MONITOR-WITH(BACK MONITOR),PLATINUM WHITE PEARL MC.,089; BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),PLATINUM WHITE PEARL MC.,089; PLATINUM WHITE PEARL MC.,089
main76801-42261-B0iAXAA54,AXAH5#,MXAA5#..LHD..G..GEN; AXAH5#,AXAL5#..M..EUR;AXAA5#,AXAH5#,MXAA5#..G..(GCC,GEN); AXAH5#,AXAL5#..M..EUR;AXAA54,AXAH5#,MXAA5#..LHD..G..GEN; AXAH54..LHD..M..EUR;AXAA5#,AXAH5#,MXAA5#..G..(GCC,GEN); MXAA54..JPP..RUS;MXAA52..G..(ARL,SA);AXAA54,AXAH5#,AXAL5#..G..(ARL,EUR,SA)202210-202310
BACK MONITOR-WITH(BACK GUIDE MONITOR),SILVER ME.,1D6; BACK MONITOR-WITH(BACK MONITOR FOR ACCESSORY),SILVER ME.,1D6; BACK MONITOR-WITH(BACK MONITOR),SILVER ME.,1D6; BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),SILVER ME.,1D6; SILVER ME.,1D6
BACK MONITOR-WITH(BACK GUIDE MONITOR),GRAY ME.,1G3; BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),GRAY ME.,1G3; GRAY ME.,1G3
main76801-42261-C0iAXAA5#,AXAH5#,MXAA5#..G..(GCC,GEN); AXAA54,AXAH5#,MXAA5#..LHD..G..GEN; MXAA54..JPP..RUS;AXAH52..LHD..M..EUR;AXAH52..G..(ARL,EUR);AXAH54..LHD..(G,M)..EUR;AXAH54,MXAA52..G..(ARL,SA);AXAA54,AXAL5#..(G,M)..(EUR,SA)202310
ATTITUDE BLACK MC.,218; BACK MONITOR-WITH(BACK GUIDE MONITOR),ATTITUDE BLACK MC.,218; BACK MONITOR-WITH(BACK MONITOR FOR ACCESSORY),ATTITUDE BLACK MC.,218; BACK MONITOR-WITH(BACK MONITOR),ATTITUDE BLACK MC.,218; BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),ATTITUDE BLACK MC.,218
main76801-42261-D0iAXAA54,AXAH5#,MXAA5#..LHD..G..GEN; AXAH5#,AXAL5#..M..EUR;AXAA5#,AXAH5#,MXAA5#..G..(GCC,GEN); AXAH5#,AXAL5#..M..EUR;AXAA54,AXAH5#,MXAA5#..LHD..G..GEN; AXAH54..LHD..M..EUR;AXAA5#,AXAH5#,MXAA5#..G..(GCC,GEN); MXAA54..JPP..RUS;MXAA52..G..(ARL,SA);AXAA54,AXAH5#,AXAL5#..G..(ARL,EUR,SA)202210-202310
BACK MONITOR-WITH(BACK GUIDE MONITOR),RED MC.,3T3; BACK MONITOR-WITH(BACK MONITOR FOR ACCESSORY),RED MC.,3T3; BACK MONITOR-WITH(BACK MONITOR),RED MC.,3T3; BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),RED MC.,3T3; RED MC.,3T3
main76801-42261-G3iAXAA5#,AXAH5#,MXAA5#..G..(GCC,GEN); AXAA54,AXAH5#,MXAA5#..LHD..G..GEN; MXAA54..JPP..RUS;AXAH52..LHD..M..EUR;AXAH52..G..(ARL,EUR);AXAH54..LHD..(G,M)..EUR;AXAH54,MXAA52..G..(ARL,SA);AXAA54,AXAL5#..(G,M)..(EUR,SA)202410
BACK MONITOR-WITH(BACK GUIDE MONITOR),URBAN KHAKI,6X3; BACK MONITOR-WITH(BACK MONITOR FOR ACCESSORY),URBAN KHAKI,6X3; BACK MONITOR-WITH(BACK MONITOR),URBAN KHAKI,6X3; BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),URBAN KHAKI,6X3; URBAN KHAKI,6X3
main76801-42261-J1iAXAA5#,AXAH5#,MXAA5#..G..(GCC,GEN); AXAA54,AXAH5#,MXAA5#..LHD..G..GEN; MXAA54..JPP..RUS;AXAH52..LHD..M..EUR;AXAH52..G..(ARL,EUR);AXAH54..LHD..(G,M)..EUR;AXAH54,MXAA52..G..(ARL,SA);AXAA54,AXAL5#..(G,M)..(EUR,SA)202310
BACK MONITOR-WITH(BACK GUIDE MONITOR),DK. BLUE MC.,8X8; BACK MONITOR-WITH(BACK MONITOR FOR ACCESSORY),DK. BLUE MC.,8X8; BACK MONITOR-WITH(BACK MONITOR),DK. BLUE MC.,8X8; BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),DK. BLUE MC.,8X8; DK. BLUE MC.,8X8
main76801-42261-J7iAXAA5#,AXAH5#,MXAA5#..G..(GCC,GEN); AXAA54,AXAH5#,MXAA5#..LHD..G..GEN; MXAA54..JPP..RUS;AXAA54,AXAH5#,MXAA52..G..(ARL,SA)202410
BACK MONITOR-WITH(BACK GUIDE MONITOR),GRAYISH BLUE/SILVER,8W2; BACK MONITOR-WITH(BACK MONITOR FOR ACCESSORY),GRAYISH BLUE/SILVER,8W2; BACK MONITOR-WITH(BACK MONITOR),GRAYISH BLUE/SILVER,8W2; BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),GRAYISH BLUE/SILVER,8W2; GRAYISH BLUE/SILVER,8W2
main76801-42904iAXAA5#,AXAH5#,MXAA5#..G..(GCC,GEN); AXAH5#,AXAL5#..M..EUR; AXAH54..G..ARL; MXAA52..G..(RUS,SA);AXAA54,MXAA54..RUS,SA;MXAA52..LHD..(G,X)..EUR;MXAA52..(M,X)..(ARL,GEN,RUS,SA);AXAH5#,AXAL5#,MXAA54..(G,X)..EUR;AXAA5#,AXAH5#,AXAL5#,MXAA54..(M,V,X)..(ARL,GCC,GEN); MXAA52..LHD..CVT..M..EUR;AXAA5#,AXAH54,MXAA54..G..GEN;AXAH5#,AXAL5#,MXAA54..CVT..M..EUR;AXAH52,AXAL5#,MXAA52..G..(ARL,GEN); MXAA52..LHD..G..EUR;AXAH5#,AXAL5#,MXAA54..CVT..G..EUR; MXAA52..LHD..G..GEN;AXAH5#,AXAL5#,MXAA5#..M..EUR;MXAA52..RHD..G..(ARL,EUR,GEN);AXAA5#,AXAH5#,AXAL5#,MXAA54..G..(ARL,GCC,GEN); MXAA52..LHD..M..EUR;AXAH5#,AXAL5#,MXAA54..M..EUR;AXAH54,MXAA52..G..(ARL,GCC,GEN);AXAA5#,AXAH52,MXAA54..G..(GCC,GEN); MXAA54..6F..G202008-202102
PAINT REQ.; PAINT REQ.,AUSTRALIA SPEC&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR); PAINT REQ.,BACK MONITOR-WITH(BACK GUIDE MONITOR); PAINT REQ.,BACK MONITOR-WITH(BACK MONITOR FOR ACCESSORY); PAINT REQ.,BACK MONITOR-WITH(PANORAMIC VIEW MONITOR); PAINT REQ.,BACK MONITOR-WITHOUT; PAINT REQ.,CLEARANCE & BACK SONAR-WITHOUT; PAINT REQ.,HV BLACK PACKAGE; PAINT REQ.,HV BLACK PACKAGE&BACK MONITOR-WITH(BACK GUIDE MONITOR); PAINT REQ.,HV BLACK PACKAGE&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR); PAINT REQ.,HV EMOTIONAL PACKAGE; PAINT REQ.,HV EMOTIONAL PACKAGE&BACK MONITOR-WITH(BACK GUIDE MONITOR); PAINT REQ.,HV EMOTIONAL PACKAGE&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR); PAINT REQ.,NEW ZEALAND SPEC&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
main76801-42908iAXAH5#,AXAL5#..M..EUR; AXAH5#,MXAA52..G..ARL; AXAH54,MXAA52..G..ARL; AXAH54..G..ARL; AXAH54..RHD..G..GEN;AXAH52,MXAA52..RHD..G..(ARL,GEN)202102-202112
PAINT REQ.; PAINT REQ.,AUSTRALIA SPEC&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR); PAINT REQ.,BACK MONITOR-WITH(BACK GUIDE MONITOR); PAINT REQ.,BACK MONITOR-WITH(PANORAMIC VIEW MONITOR); PAINT REQ.,HV BLACK PACKAGE; PAINT REQ.,HV BLACK PACKAGE&BACK MONITOR-WITH(BACK GUIDE MONITOR); PAINT REQ.,HV BLACK PACKAGE&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR); PAINT REQ.,HV EMOTIONAL PACKAGE; PAINT REQ.,HV EMOTIONAL PACKAGE&BACK MONITOR-WITH(BACK GUIDE MONITOR); PAINT REQ.,HV EMOTIONAL PACKAGE&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR); PAINT REQ.,NEW ZEALAND SPEC&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
76802EGARNISH SUB-ASSY, BACK DOOR, OUTSIDE LOWER
ATTITUDE BLACK MC.,089 ,1D6 ,1G3 ,2PS ,2QY ,2QZ ,2RA ,8X8; ATTITUDE BLACK MC.,089 ,1D6 ,1G3 ,2PS ,2QY ,2QZ ,2VV ,8W2; MID-EAST HV PACKAGE&BACK MONITOR-WITH(BACK GUIDE MONITOR),ATTITUDE BLACK MC.,089 ,1D6 ,1G3 ,8W2 ,8X8; MID-EAST HV PACKAGE&BACK MONITOR-WITH(BACK MONITOR),ATTITUDE BLACK MC.,089 ,1D6 ,1G3 ,8W2 ,8X8; MID-EAST HV PACKAGE,ATTITUDE BLACK MC.,089 ,1D6 ,1G3 ,8W2 ,8X8
76821PROTECTOR, BACK DOOR GARNISH MOULDING, UPPER
76822APROTECTOR, BACK DOOR GARNISH MOULDING, LWR
76823PROTECTOR, BACK DOOR GARNISH MOULDING, RH
main76823-42030×3iMXAA5#..6F..G..EUR;AXAH52..LHD..G..GEN;MXAA54..JPP..CVT..G;AXAH52..G..(ARL,EUR);AXAA5#..ARL,GCC,GEN,SA;MXAA52..JPP..6F..(M,X);AXAH52,MXAA54..JPP..(M,V,X);AXAH54,AXAL5#,MXAA52..CVT..(ARL,EUR,GCC,GEN,SA)201811-202007
76824PROTECTOR, BACK DOOR GARNISH MOULDING, LH
76825PROTECTOR, BACK DOOR OUTSIDE GARNISH
76826ARETAINER, BACK DOOR GARNISH, NO.1
76827ARETAINER, BACK DOOR GARNISH, NO.2
main76827-42050iMXAA52..X..(ARL,GCC,GEN);AXAA5#,AXAH5#,AXAL5#..JPP;MXAA52..(G,M)..(ARL,GEN,SA);MXAA54..JPP..(GCC,GEN,RUS,SA)202210-202310
76881BPROTECTOR, BACK DOOR LOWER MOULDING, RH
main76881-42010×2iAXAA5#,AXAL5#..JPP;AXAH52..LHD..M..EUR;AXAH52..(G,P,X)..EUR;MXAA52..X..(ARL,GCC,GEN);MXAA52..(G,M)..(ARL,GEN,SA);AXAH54..LHD..(G,M,P,V)..EUR;AXAH5#,MXAA54..JPP..(ARL,GCC,GEN,RUS,SA)202310
76882BPROTECTOR, BACK DOOR LOWER MOULDING, LH
main76882-42010×2iAXAA5#,AXAL5#..JPP;AXAH52..LHD..M..EUR;AXAH52..(G,P,X)..EUR;MXAA52..X..(ARL,GCC,GEN);MXAA52..(G,M)..(ARL,GEN,SA);AXAH54..LHD..(G,M,P,V)..EUR;AXAH5#,MXAA54..JPP..(ARL,GCC,GEN,RUS,SA)202310
9010506333
main90105-06333
9010506344
main90105-06344
90119W0037
main90119-W0037
9015960621
main90159-60621
9017906362
main90179-06362
9018906244
main90189-06244
9046705171
main90467-05171
9046709206
main90467-09206
9167380616
main91673-80616
36 parts on this diagram · 3 diagrams in section
