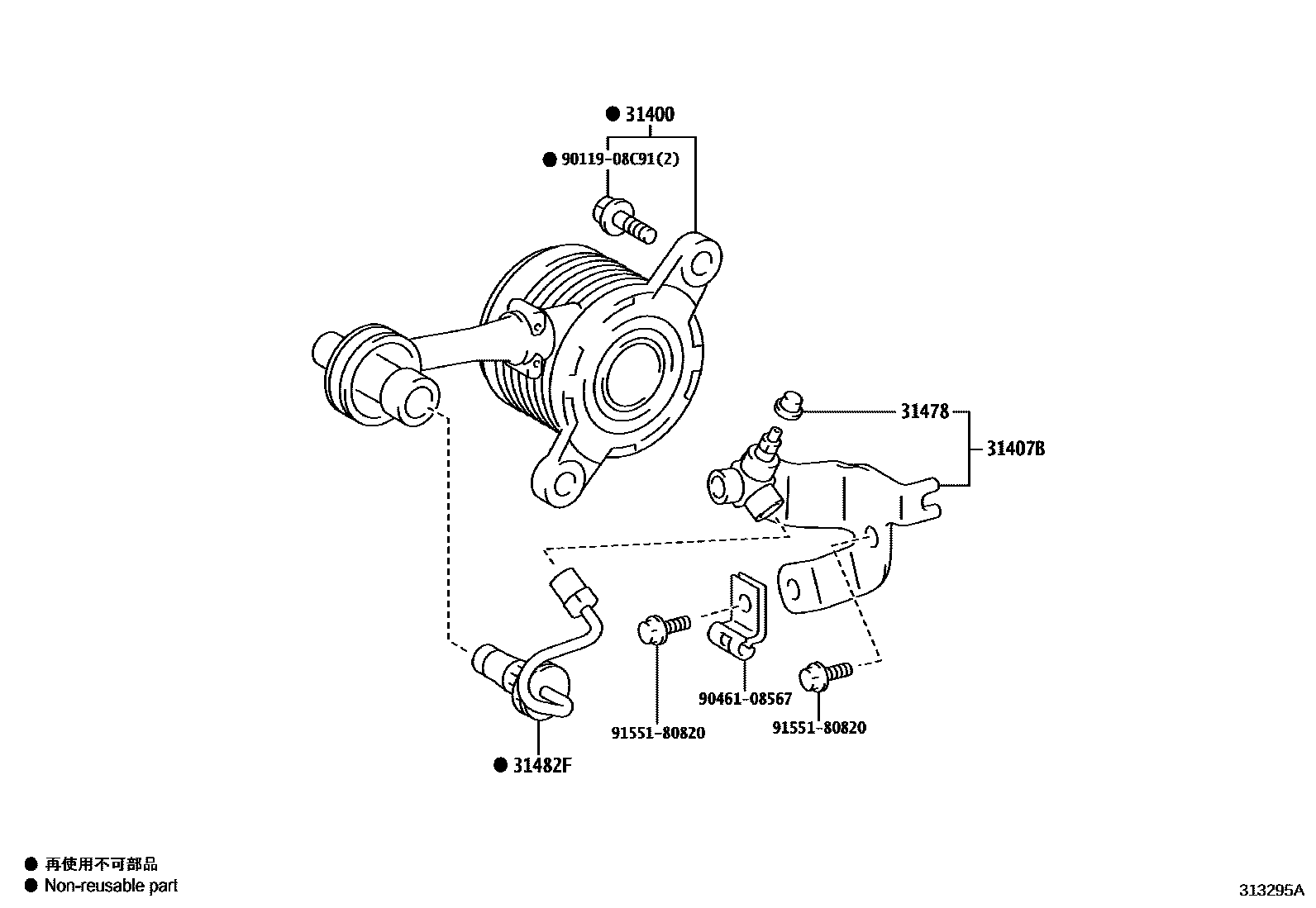

CLUTCH RELEASE CYLINDER

31400CYLINDER ASSY, CLUTCH RELEASE W/BEARING

main31400-19025iMXAA5#..6F..G..(GEN,SA)201811-201909

main31400-19026iMXAA5#..6F..RUS202111-202203

main31400-19027iMXAA5#..6F..GEN202305-202310

31407BBLEEDER SUB-ASSY, CLUTCH RELEASE

main31407-12010iMXAA5#..6F..G..(GEN,SA)201811-201909

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iMXAA5#..6F..G..(GEN,SA)201811-201909

31482FTUBE, CLUTCH RELEASE CYLINDER W/BEARING TO BLEEDER

main31482-12410iMXAA5#..6F..G..(GEN,SA)201811-201909

9011908C91

main90119-08C91

9046108567

main90461-08567

9155180820

main91551-80820

7 parts on this diagram · 1 diagram in section
