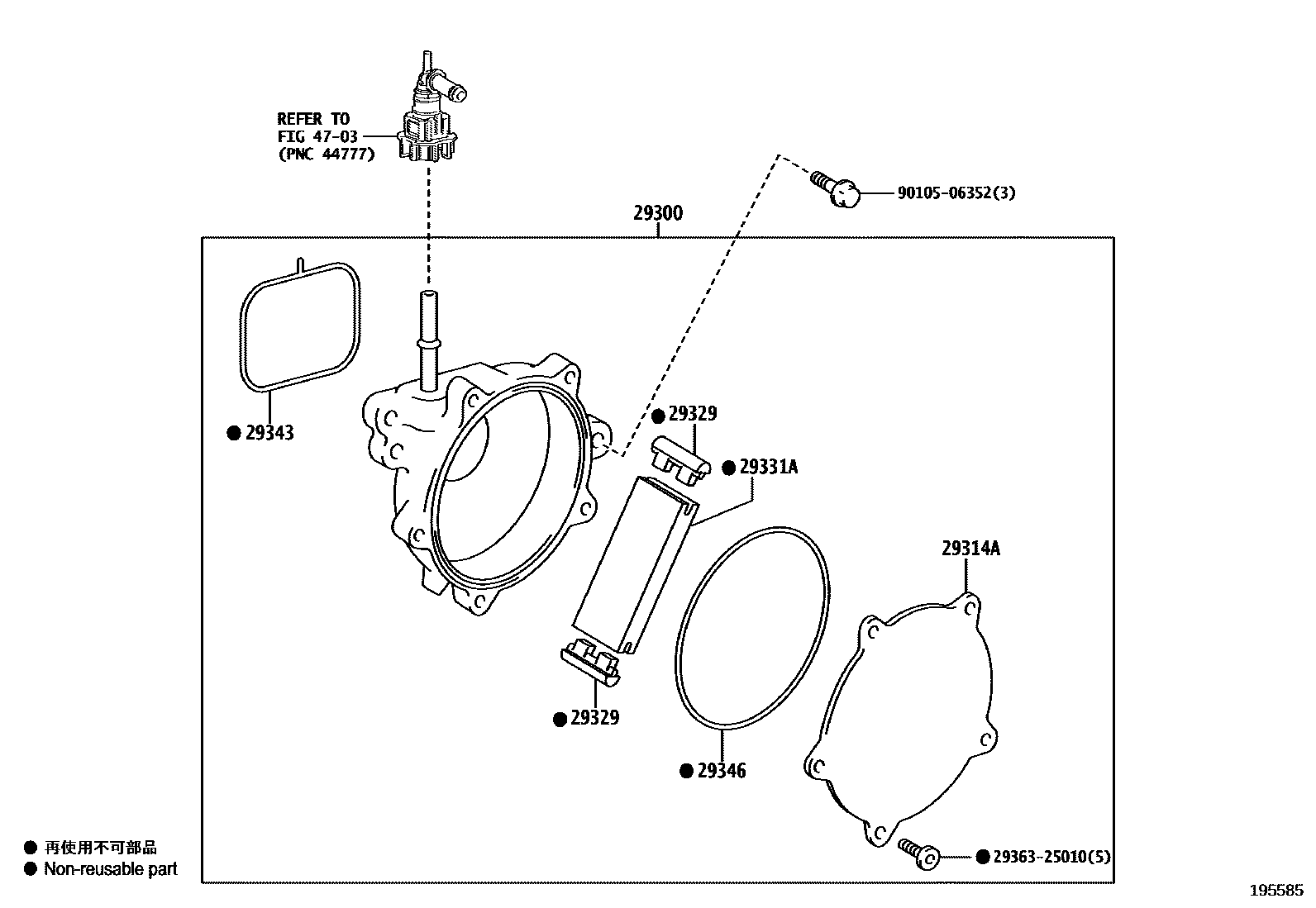

VACUUM PUMP

0001 1 0002 1 0003 1

29300PUMP ASSY, VACUUM

main29300-24011iM20AFKS..MXAA5#..6F..G..(GEN,SA)201811-201909

main29300-25011iM20AFKS..MXAA5#..JPP..CVT;A25AFKS..AXAA5#..ARL,GCC,GEN,SA201811-202007

main29300-25012iM20AFKS..MXAA52..CVT..X..(ARL,GCC,GEN);M20AFKS..MXAA52..CVT..(G,M)..(ARL,GEN,SA);A25AFKS,M20AFKS..AXAA5#,MXAA54..JPP..(ATM,CVT)..(ARL,GCC,GEN,RUS,SA)202210-202310

main29300-F2030iM20AFKS..MXAA5#..RUS201910-202009

main29300-F2031iM20AFKS..MXAA5#..RUS202101-202203

29314ACOVER, END

main29314-25010iA25AFKS..AXAA54..EUR201811-202004

29329CAP, VACUUM PUMP VANE

main29329-24011×2iM20AFKS..MXAA5#..6F..G..EUR;M20AFKS..MXAA5#..JPP..6F..(M,X)201811-202007

main29329-25011×2iA25AFKS..AXAA54..RUS201811-202009

29331AVANE, VACUUM PUMP

main29331-24010iM20AFKS..MXAA5#..6F..GEN202210-202310

main29331-25010iA25AFKS..AXAA54..RUS201811-202009

main29331-37010iA25AFKS..AXAA52..GCC;A25AFKS..AXAA54..LHD..V;M20AFKS..MXAA52..JPP..CVT;A25AFKS..AXAA54..(M,V,X)..ARL;A25AFKS..AXAA52..LHD..(G,M)..GEN;M20AFKS..MXAA54..JPP..CVT..(M,X);A25AFKS..AXAA54..(G,M,X)..(GCC,GEN,SA);M20AFKS..MXAA54..CVT..(G,V)..(EUR,GEN,SA)202111-202210

29343RING, O VACUUM PUMP, NO.1

main29343-25010iM20AFKS..MXAA5#..6F..G..(GEN,SA)201811-201909

main29343-F2030iM20AFKS..MXAA5#..RUS201910-202009

29346RING, O VACUUM PUMP COVER

main29346-25010iM20AFKS..MXAA5#..6F..G..(GEN,SA)201811-201909

4703BRAKE BOOSTER & VACUUM TUBE

→ Go to FIG 47-03

2936325010SCREW, HOLLOW VACUUM PUMP

main29363-25010

9010506352

main90105-06352

9 parts on this diagram · 3 diagrams in section
