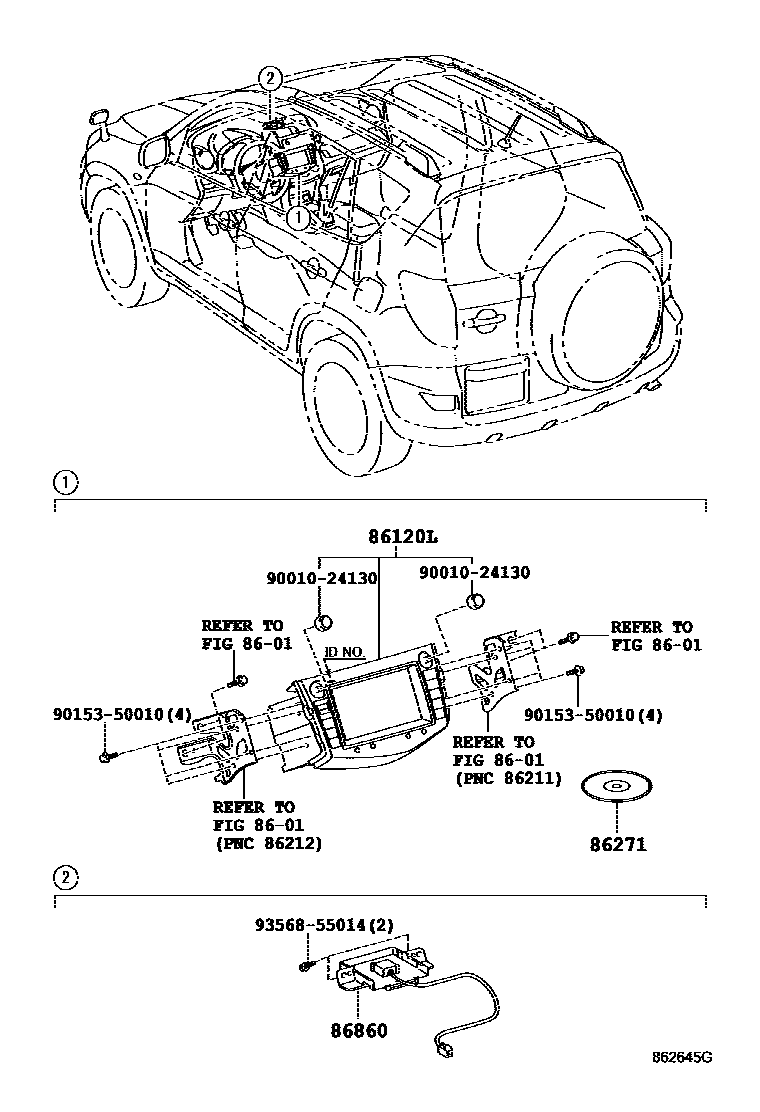

NAVIGATION & FRONT MONITOR DISPLAY

0001 1 0002 1W(NAVIGATION) 0004 1W/O(NAVIGATION)

8601RADIO RECEIVER & AMPLIFIER & CONDENSER

→ Go to FIG 86-01

86120LRECEIVER ASSY, NAVIGATION

main86100-42060iACA30..LHD..G;ACA33,ALA30,ZSA3#..G..EUR200812-200908

AISIN AW,ID=B9017,AUDIO-HDD-NAVIGATION,CD,BLUETOOTH,UNIQUE-PANEL

main86100-42061iACA30..LHD..G200909-201003

AISIN AW,ID=B9017,AUDIO-HDD-NAVIGATION,CD,BLUETOOTH,UNIQUE-PANEL

main86100-42062iACA33,ALA3#,ZSA3#..G..EUR201007-201107

AISIN AW,ID=B9017,AUDIO-HDD-NAVIGATION,CD,BLUETOOTH,UNIQUE-PANEL

main86100-42063iACA33,ALA3#,ZSA3#..G..EUR201108-201112

AISIN AW,ID=B9017,AUDIO-HDD-NAVIGATION,CD,BLUETOOTH,UNIQUE-PANEL

main86100-42064iACA33,ALA3#,ZSA3#..G..EUR201201-201207

AISIN AW,ID=B9017,AUDIO-HDD-NAVIGATION,CD,BLUETOOTH,UNIQUE-PANEL

main86100-42065iACA33,ALA3#,ZSA3#..G..EUR201208-201212

MATSUSHITA,AUDIO-HDD-NAVIGATION,CD,BLUETOOTH,UNIQUE-PANEL

main86100-42210iALA3#,ZSA3#..G..BTYPE;ACA33,ALA30..G..(DCR,HTWC)..EUR..ATYPE200812-201206

MATSUSHITA,ID=B9017,AUDIO-HDD-NAVIGATION,CD,BLUETOOTH,UNIQUE-PANEL

main86100-42211iACA33,ALA3#,ZSA3#..G..EUR201207-201212

MATSUSHITA,ID=B9017,AUDIO-HDD-NAVIGATION,CD,BLUETOOTH,UNIQUE-PANEL

main86120-20A90iALA3#,ZSA3#..G200812-201207

AISHIN AW,AUDIO-DVD-NAVIGATION,CD,BLUETOOTH,MULTI-PANEL

main86120-42240iACA30,ALA30..G200511-200805

AISHIN AW,AUDIO-AM/FM/LW,CD,NAVI

main86120-42241iACA30,ALA30..G200806-200812

AISHIN AW,AUDIO-AM/FM/LW,CD,NAVI

main86120-42360iACA33,38..G..GEN200808-201008

DENSO,ID=E8010,AUDIO-DVD-NAVIGATION,CD,DVD,BLUETOOTH,UNIQUE

86271DISC, DISC PLAYER

main86271-53030iACA30,ALA30..G200511-200607

AUDIO-AM/FM/LW,CD,NAVI

main86271-53031iACA30,ALA30..G200608-200708

AUDIO-AM/FM/LW,CD,NAVI

main86807-0W032iACA33,38..G..GEN200808-200809

AUDIO-DVD-NAVIGATION,CD,DVD,BLUETOOTH,UNIQUE&MAP DISC(DOP)-WITH

main86807-0W033iACA33,38..G..GEN200809-200908

AUDIO-DVD-NAVIGATION,CD,DVD,BLUETOOTH,UNIQUE&MAP DISC(DOP)-WITH

main86807-0W034iACA33,38..G..GEN200909-201007

AUDIO-DVD-NAVIGATION,CD,DVD,BLUETOOTH,UNIQUE&MAP DISC(DOP)-WITH

86860ANTENNA ASSY, NAVIGATION

main86860-42030iACA30,ALA30..G200511-200812

AUDIO-AM/FM/LW,CD,NAVI

9001024130

main90010-24130

9015350010

main90153-50010

9356855014

main93568-55014

7 parts on this diagram · 3 diagrams in section
