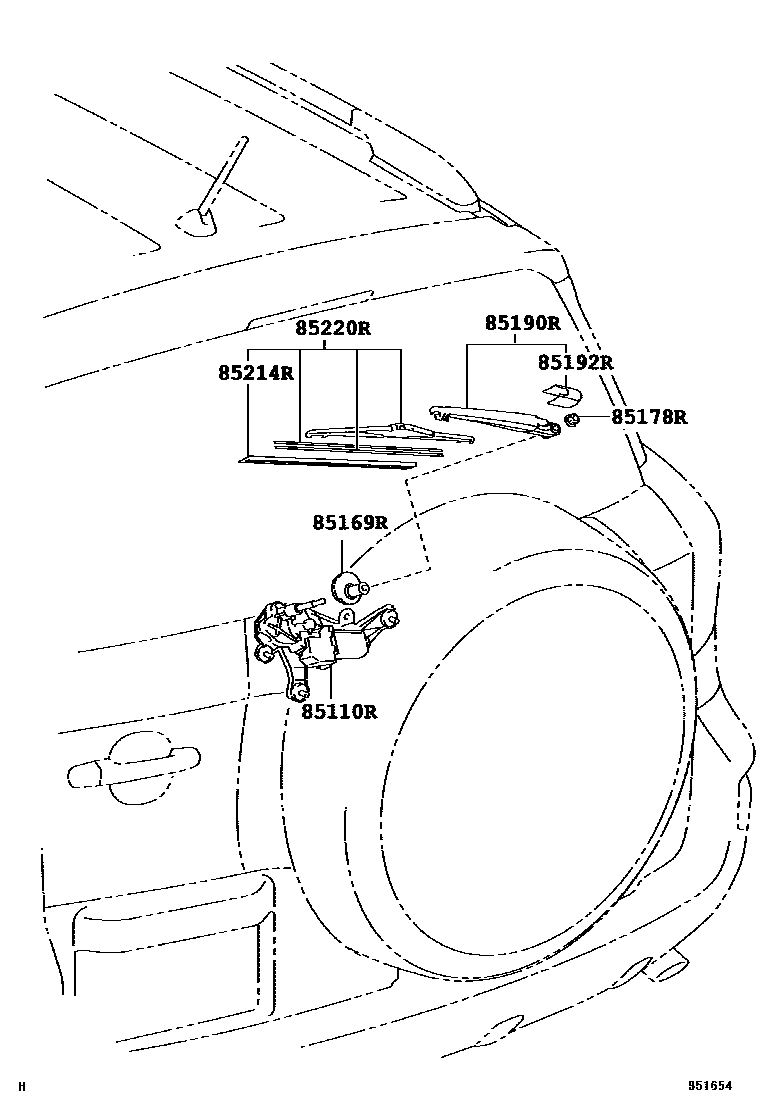

REAR WIPER

85110RMOTOR ASSY, REAR WIPER

main85130-42060iACA3#,ALA30,GSA33200511-200712

main85130-42061iACA33..G..GCC;ACA30,31,ALA30200801-200812

85169RWASHER, REAR WIPER LINK PIVOT, NO.1

main85143-42040iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200511-200808

85178RNUT (FOR REAR WIPER ARM SETTING)

main90179-06158iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200511-200808

85190RARM ASSY, REAR WIPER

main85241-42060iALA30..6FC..ATYPE;ALA3#,ZSA3#..G..BTYPE200903-201212

main85241-42070iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200511-200808

85192RCOVER, REAR WIPER ARM

main85292-42010iALA30..6FC..ATYPE;ALA3#,ZSA3#..G..BTYPE200903-201212

main85292-42020iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200511-200808

85214RRUBBER, REAR WIPER

main85214-31010iACA33,38,GSA33200808-200811

main85214-42040iACA3#,ALA3#,GSA33,ZSA3#200812-201212

85220RBLADE ASSY, REAR WIPER

main85242-42030iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200511-200808

7 parts on this diagram · 1 diagram in section
