AIR BAG
72277APROTECTOR, SEAT SLIDE POSITION SENSOR
BEIJING SPEC&SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER &CURTAIN & SIDE; CHINA SPEC&SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE
89170SENSOR ASSY, AIRBAG
SRS AIR BAG-WITH(DRIVER&PASSENGER&CURTAIN&SIDE&KNEE)
SRS AIR BAG-WITH(DRIVER&PASSENGER&CURTAIN&SIDE&KNEE)
SRS AIR BAG-WITH(DRIVER&PASSENGER&CURTAIN&SIDE&KNEE)
WITH(FRONT WHEEL SPLASH SHIELD); WITHOUT(CURTAIN & SIDE AIR BAG)
SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE
SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE
SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE
SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE
SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE
main89170-42320iALA30..LHD..G..DCR..ATYPE;ALA3#,ZSA3#..LHD..G..BTYPE; ALA30..LHD..X..DCR..ATYPE;ALA3#,ZSA3#..LHD..X..BTYPE200812-201107
WITH(FRONT WHEEL SPLASH SHIELD)&SRS AIR BAG-WITH(DRIVER+PASSENGER); WITHOUT(CURTAIN & SIDE AIR BAG)&SRS AIR BAG-WITH(DRIVER+PASSENGER)
SEAT COVER MATERIAL-NATURAL LEATHER; SRS AIR BAG-WITH(DRIVER&PASSENGER&CURTAIN&SIDE)
SEAT COVER MATERIAL-NATURAL LEATHER; SRS AIR BAG-WITH(DRIVER&PASSENGER&CURTAIN&SIDE)
WITH(FRONT WHEEL SPLASH SHIELD)&SRS AIR BAG-WITH(DRIVER+PASSENGER); WITHOUT(CURTAIN & SIDE AIR BAG)&SRS AIR BAG-WITH(DRIVER+PASSENGER)
SEAT COVER MATERIAL-NATURAL LEATHER; SRS AIR BAG-WITH(DRIVER&PASSENGER&CURTAIN&SIDE)
89173ASENSOR, AIRBAG, FRONT RH
89174ASENSOR, AIRBAG, FRONT LH
89178ASENSOR, SEAT POSITION AIRBAG
BEIJING SPEC&SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER &CURTAIN & SIDE; CHINA SPEC&SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE
89833SENSOR, AIRBAG, REAR RH
SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE; WITH(FRONT WHEEL SPLASH SHIELD); WITHOUT(CURTAIN & SIDE AIR BAG)
main89831-33030iACA30,ALA3#,ZSA3#;ACA33,38,GSA33..G..(ARL,EUR); ACA33,38..G..GCC; ACA33,38..LHD..X;ACA33,38..G..GEN; ACA33,38..X..ARL200808-201212
SEAT COVER MATERIAL-NATURAL LEATHER; SRS AIR BAG-WITH(DRIVER&PASSENGER&CURTAIN&SIDE&KNEE); SRS AIR BAG-WITH(DRIVER&PASSENGER&CURTAIN&SIDE)
89834SENSOR, AIRBAG, REAR LH
SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE; WITH(FRONT WHEEL SPLASH SHIELD); WITHOUT(CURTAIN & SIDE AIR BAG)
main89831-33030iACA30,ALA3#,ZSA3#;ACA33,38,GSA33..G..(ARL,EUR); ACA33,38..G..GCC; ACA33,38..LHD..X;ACA33,38..G..GEN; ACA33,38..X..ARL200808-201212
SEAT COVER MATERIAL-NATURAL LEATHER; SRS AIR BAG-WITH(DRIVER&PASSENGER&CURTAIN&SIDE&KNEE); SRS AIR BAG-WITH(DRIVER&PASSENGER&CURTAIN&SIDE)
89860SENSOR ASSY, SIDE AIRBAG, RH
main89831-28020iACA30,ALA3#,ZSA3#;ACA33,38,GSA33..G..(ARL,EUR); ACA33,38..G..GCC; ACA33,38..LHD..X;ACA33,38..G..GEN; ACA33,38..X..ARL200808-201212
SEAT COVER MATERIAL-NATURAL LEATHER; SRS AIR BAG-WITH(DRIVER&PASSENGER&CURTAIN&SIDE&KNEE); SRS AIR BAG-WITH(DRIVER&PASSENGER&CURTAIN&SIDE)
SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE; WITH(FRONT WHEEL SPLASH SHIELD); WITHOUT(CURTAIN & SIDE AIR BAG)
89860ASENSOR ASSY, SIDE AIRBAG, LH
main89831-28020iACA30,ALA3#,ZSA3#;ACA33,38,GSA33..G..(ARL,EUR); ACA33,38..G..GCC; ACA33,38..LHD..X;ACA33,38..G..GEN; ACA33,38..X..ARL200808-201212
SEAT COVER MATERIAL-NATURAL LEATHER; SRS AIR BAG-WITH(DRIVER&PASSENGER&CURTAIN&SIDE&KNEE); SRS AIR BAG-WITH(DRIVER&PASSENGER&CURTAIN&SIDE)
SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE; WITH(FRONT WHEEL SPLASH SHIELD); WITHOUT(CURTAIN & SIDE AIR BAG)
9011908C89
main90119-08C89
9155380620
main91553-80620
91553A0625
main91553-A0625

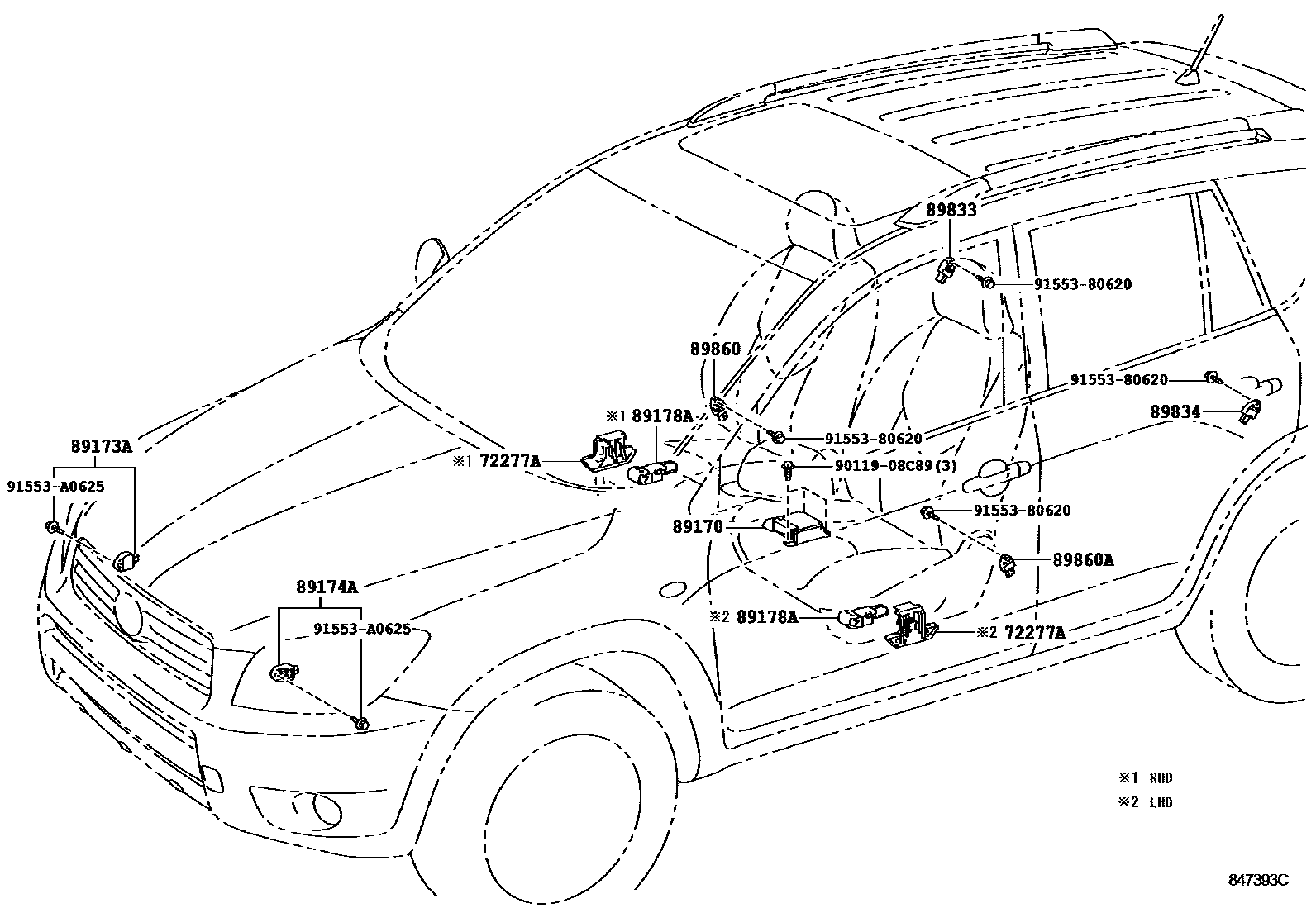

12 parts on this diagram · 1 diagram in section
