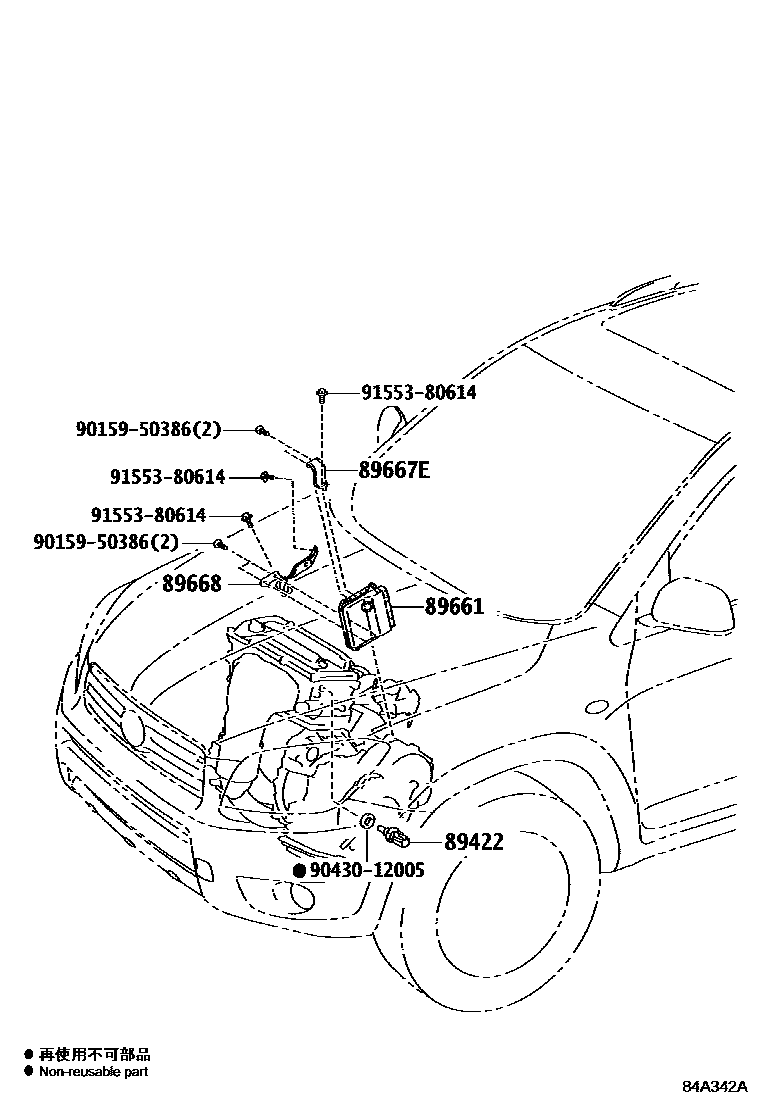

ELECTRONIC FUEL INJECTION SYSTEM

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030i200511-200812

89661COMPUTER, ENGINE CONTROL

main89661-42C60supersedes 89661-42D20i200511-200712

EXHAUST EMISSION CONTROL-EUROPE STEP4 WITH(OBD)

main89661-42D10supersedes 89661-42C50i200511-200808

EXHAUST EMISSION CONTROL-EUROPE STEP4 WITHOUT(OBD)

main89661-42D21supersedes 89661-42F80i200805-200808

EXHAUST EMISSION CONTROL-EUROPE STEP4 WITHOUT(OBD)

main89661-42D40i200511-200812

main89661-42D41i201112-201212

main89661-42D50i200812-201111

main89661-42D51i201112-201212

main89661-42F50i200808-201111

main89661-42F51i201112-201212

main89661-42F80supersedes 89661-42D21i200712-200812

BEIJING SPEC

main89661-42G50i200812-200904

main89661-42G51i200905-200908

main89661-42G52i200909-201008

main89661-42G60i200812-200904

main89661-42G61i200905-200908

main89661-42G62i200909-201008

main89661-42G70i200812-200904

main89661-42G71i200905-200908

main89661-42G72i200909-201008

main89661-42G80i200812-200904

main89661-42G81i200905-200908

main89661-42G82i200909-201008

main89661-42M90supersedes 89661-42N30i200912-201212

EXHAUST EMISSION CONTROL-EUROPE EURO4 W/ON-BOARD DIAGNOSTIC SYS

main89661-42N31i201112-201212

EXHAUST EMISSION CONTROL-EUROPE EURO4 L/ON-BOARD DIAGNOSTIC SYS; TAIWAN SPEC&EXHAUST EMISSION CONTROL-EUROPE EURO4 L/ON-BOARD DIAGNOSTIC SYS

main89661-42N41i201112-201212

EXHAUST EMISSION CONTROL-EUROPE EURO4 L/ON-BOARD DIAGNOSTIC SYS

main89661-42N51i201112-201212

EXHAUST EMISSION CONTROL-EUROPE EURO4 L/ON-BOARD DIAGNOSTIC SYS; TAIWAN SPEC&EXHAUST EMISSION CONTROL-EUROPE EURO4 L/ON-BOARD DIAGNOSTIC SYS

main89661-42Q40i201008-201111

main89661-42Q41i201112-201212

main89661-42Q50i201008-201111

main89661-42Q51i201112-201212

main89661-42Q60i201008-201111

main89661-42Q61i201112-201212

main89661-42Q70i201008-201111

main89661-42Q71i201112-201212

main89661-42C50supersedes 89661-42N20i200808-200912

EXHAUST EMISSION CONTROL-EUROPE EURO4 W/ON-BOARD DIAGNOSTIC SYS

main89661-42C90supersedes 89661-42K20i200511-200808

EXHAUST EMISSION CONTROL-EUROPE STEP4 WITH(OBD)

main89661-42D00supersedes 89661-42K30i200511-200808

EXHAUST EMISSION CONTROL-EUROPE STEP4 WITH(OBD)

main89661-42D20supersedes 89661-42F80i200511-200804

EXHAUST EMISSION CONTROL-EUROPE STEP4 WITHOUT(OBD)

main89661-42D60supersedes 89661-42D30i200511-200812

EXHAUST EMISSION CONTROL-EUROPE STEP4 WITHOUT(OBD)

main89661-42D70i200511-200812

EXHAUST EMISSION CONTROL-EUROPE STEP4 WITHOUT(OBD)

main89661-42M80supersedes 89661-42N20i200912-201111

EXHAUST EMISSION CONTROL-EUROPE EURO4 W/ON-BOARD DIAGNOSTIC SYS

main89661-42M81supersedes 89661-42N21i201112-201212

EXHAUST EMISSION CONTROL-EUROPE EURO4 W/ON-BOARD DIAGNOSTIC SYS

main89661-42N00supersedes 89661-42N40i201003-201212

EXHAUST EMISSION CONTROL-EUROPE EURO4 W/ON-BOARD DIAGNOSTIC SYS

main89661-42N10supersedes 89661-42N50i201003-201212

EXHAUST EMISSION CONTROL-EUROPE EURO4 W/ON-BOARD DIAGNOSTIC SYS

main89661-42N20supersedes 89661-42M80i200912-201111

EXHAUST EMISSION CONTROL-EUROPE EURO4 L/ON-BOARD DIAGNOSTIC SYS

main89661-42N21supersedes 89661-42M81i201112-201212

EXHAUST EMISSION CONTROL-EUROPE EURO4 L/ON-BOARD DIAGNOSTIC SYS

main89661-42N30i200912-201111

EXHAUST EMISSION CONTROL-EUROPE EURO4 L/ON-BOARD DIAGNOSTIC SYS; TAIWAN SPEC&EXHAUST EMISSION CONTROL-EUROPE EURO4 L/ON-BOARD DIAGNOSTIC SYS

main89661-42N40supersedes 89661-42N00i200912-201111

EXHAUST EMISSION CONTROL-EUROPE EURO4 L/ON-BOARD DIAGNOSTIC SYS

main89661-42N50supersedes 89661-42K30i200912-201111

EXHAUST EMISSION CONTROL-EUROPE EURO4 L/ON-BOARD DIAGNOSTIC SYS; TAIWAN SPEC&EXHAUST EMISSION CONTROL-EUROPE EURO4 L/ON-BOARD DIAGNOSTIC SYS

main89661-42N60supersedes 89661-42D30i200912-201111

EXHAUST EMISSION CONTROL-EUROPE EURO4 L/ON-BOARD DIAGNOSTIC SYS

main89661-42N61supersedes 89661-42D31i201112-201212

EXHAUST EMISSION CONTROL-EUROPE EURO4 L/ON-BOARD DIAGNOSTIC SYS

main89661-42N70i200912-201111

EXHAUST EMISSION CONTROL-EUROPE EURO4 L/ON-BOARD DIAGNOSTIC SYS

main89661-42N71i201112-201212

EXHAUST EMISSION CONTROL-EUROPE EURO4 L/ON-BOARD DIAGNOSTIC SYS

main89661-42P20i201008-201111

BRAZIL SPEC&EXHAUST EMISSION CONTROL-BRAZIL BR2 W/ON-BOARD DIAGNOSTID SYSTEM

main89661-42P21i201112-201212

BRAZIL SPEC&EXHAUST EMISSION CONTROL-BRAZIL BR2 W/ON-BOARD DIAGNOSTID SYSTEM

main89661-42P50i201008-201111

EXHAUST EMISSION CONTROL-EUROPE EURO5 W/ON-BOARD DIAGNOSTIC SYS

main89661-42P51i201112-201212

EXHAUST EMISSION CONTROL-EUROPE EURO5 W/ON-BOARD DIAGNOSTIC SYS

main89661-42P80i201008-201111

BRAZIL SPEC&EXHAUST EMISSION CONTROL-BRAZIL BR2 W/ON-BOARD DIAGNOSTID SYSTEM

main89661-42P81i201112-201212

BRAZIL SPEC&EXHAUST EMISSION CONTROL-BRAZIL BR2 W/ON-BOARD DIAGNOSTID SYSTEM

main89661-42T80i201108-201212

RUSSIA SPEC

main89661-42T90i201108-201212

RUSSIA SPEC

main89661-42U00i201108-201212

RUSSIA SPEC

89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-42050i200808-201212

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-42050i200511-200808

EXHAUST EMISSION CONTROL-EUROPE STEP4 WITH(OBD)

9015950386

main90159-50386

9043012005

main90430-12005

9155380614

main91553-80614

7 parts on this diagram · 3 diagrams in section
