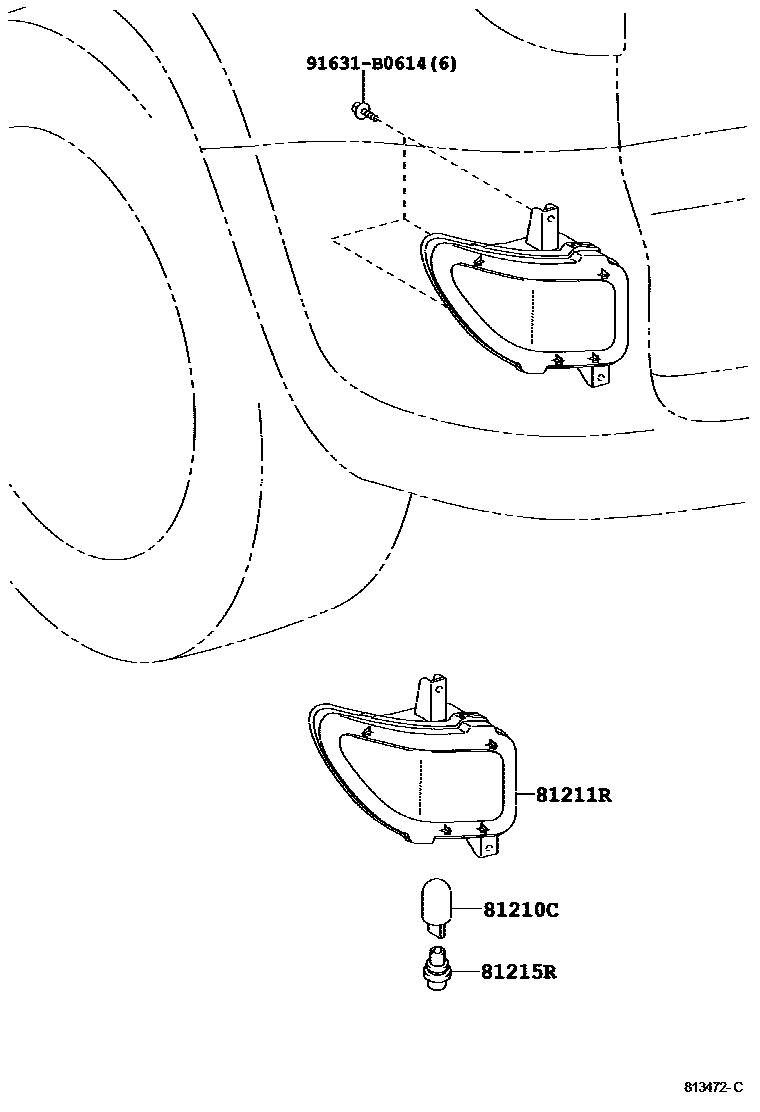

REAR FOG LAMP

0001 1 0005 1CHINA SPEC 0006 1

81210CBULB, REAR FOG LAMP

main90981-13043×2iACA30,ALA3#,ZSA3#200812-201212

12V 21W

main99132-11210iACA33..EUR200812-201212

12V 21W

81211RLENS, REAR FOG LAMP

main81211-20030iACA33..EUR200812-201212

main81456-42010iACA30,31,ALA30200511-200812

LH

main81457-42010iACA30,31,ALA30200511-200812

RH

81215RSOCKET & WIRE, REAR FOG LAMP

main81459-42030iACA33..EUR200812-201212

main81515-52270×2iACA30,31,ALA30200511-200812

91631B0614

main91631-B0614

4 parts on this diagram · 3 diagrams in section
