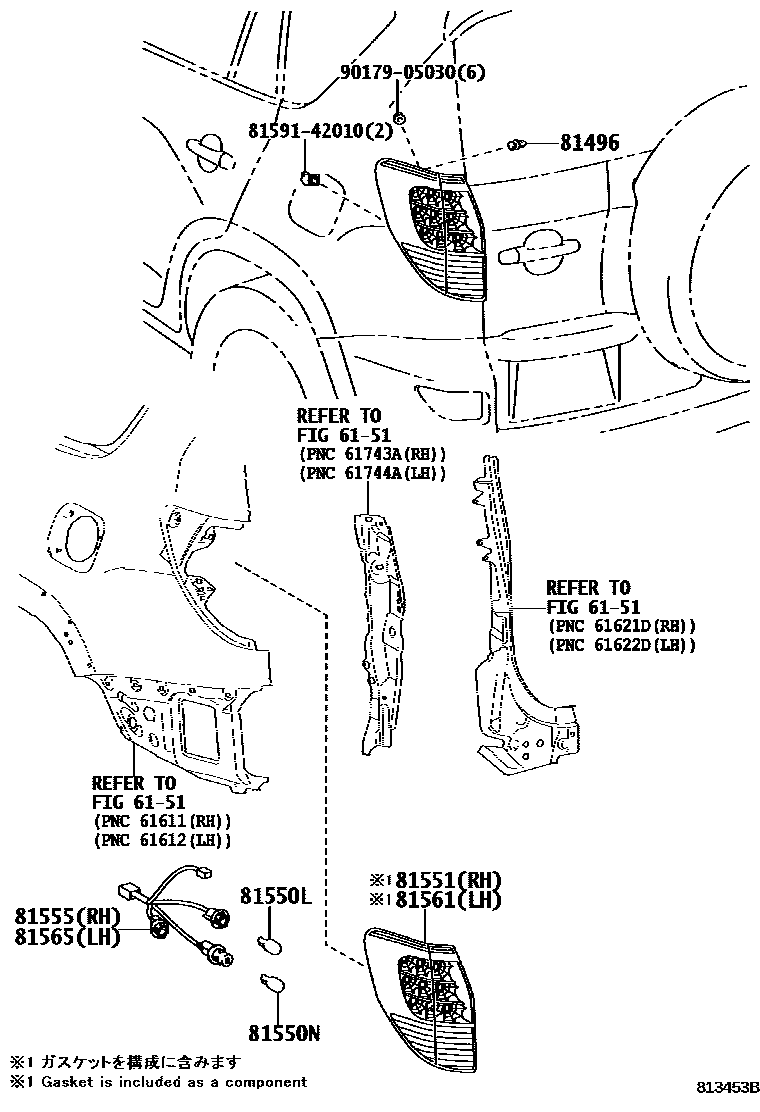

REAR COMBINATION LAMP

0001 1 0003 1CHINA SPEC 0004 1 0008 1

6151SIDE MEMBER

→ Go to FIG 61-51

81496GUIDE, REAR COMBINATION LAMP

main81496-42010×2iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200511-200808

81550LBULB, REAR TURN SIGNAL LAMP

main90981-15011×2iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200511-200808

81550NBULB, BACK UP LAMP

main90981-11059×2iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200511-200808

81551LENS, REAR COMBINATION LAMP, RH

main81551-42090iACA3#,ALA30200511-200612

main81551-42091iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200701-200808

main81551-42110iALA30..DCRL200812-200905

main81551-42120iACA30,33,38,ALA3#,GSA33,ZSA3#..DCR,DCRE,HTWC,HTWVM200808-201212

main81551-42150iALA30..DCRL200905-201212

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-42090iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200511-200808

main81555-42110iACA30,33,38,ALA30,GSA33,ZSA3#200811-200905

main81555-42120iACA33,38,GSA33200808-200811

main81555-42150iACA3#,ALA3#,GSA33,ZSA3#200905-201212

81561LENS, REAR COMBINATION LAMP, LH

main81561-42090iACA3#,ALA30200511-200612

main81561-42091iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200701-200808

main81561-42110iALA30..DCRL200812-200905

main81561-42120iACA30,33,38,ALA3#,GSA33,ZSA3#..DCR,DCRE,HTWC,HTWVM200808-201212

main81561-42150iALA30..DCRL200905-201212

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-42090iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200511-200808

main81555-42110iACA30,33,38,ALA30,GSA33,ZSA3#200811-200905

main81555-42120iACA33,38,GSA33200808-200811

main81555-42150iACA3#,ALA3#,GSA33,ZSA3#200905-201212

8159142010LENS AND BODY, REFLEX SIDE REFLECTOR, LH

main81591-42010

9017905030

main90179-05030

10 parts on this diagram · 4 diagrams in section
