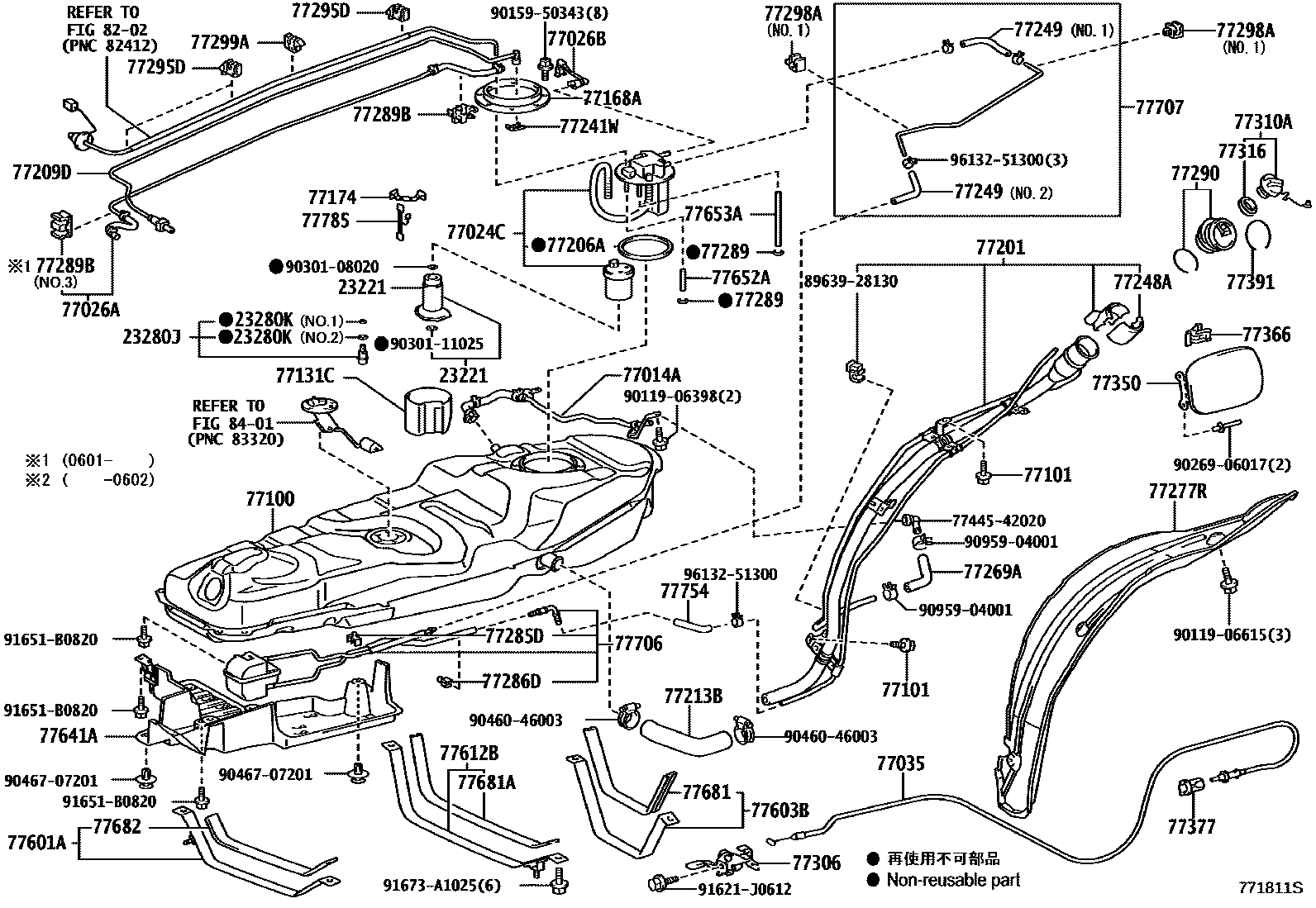

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TANK 0003 1FUEL TANK 0005 1FUEL TANK 0006 1FUEL TANK 0008 1FUEL TUBE 0009 1FUEL TUBE

23221PUMP, FUEL

main23220-28090i1AZFE,2AZFE..ACA3#200511-200812

main23220-31120i2GRFE..GSA33200708-200808

main23220-31410i2GRFE..GSA33200808-201202

main23220-31411i2GRFE..GSA33201202-201212

main23220-36010i1AZFE,2AZFE,3ZRFAE..ACA30,33,38,ZSA3#200808-201201

main23220-36011i1AZFE,2AZFE,3ZRFAE..ACA3#,ZSA3#201201-201212

main23220-28190i2AZFE..ACA33..G..GCC200511-200812

BEIJING SPEC; CHINA SPEC

23280JREGULATOR ASSY, FUEL PRESSURE

main23280-21010i1AZFE,2AZFE,2GRFE,3ZRFAE..ACA30,33,38,GSA33,ZSA3#200808-201212

23280KRING, O(FOR FUEL PRESSURE REGULATOR)

main90301-04013i2AZFE..ACA33..X..GCC;2AZFE,2GRFE..ACA33,38,GSA33..ARL,GEN200511-200808

NO.1

main90301-15024i2AZFE..ACA33..G..GCC;1AZFE,2AZFE..ACA30,31200511-200812

NO.2

77014ATUBE SUB-ASSY, FUEL TANK BREATHER, NO.3

main77014-42010iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200511-200808

77024CPLATE SUB-ASSY, FUEL SUCTION W/FUEL FILTER

main77024-42060iACA3#200511-200611

main77024-42061iACA3#,GSA33200612-200812

main77024-42080iACA30,33,38,GSA33,ZSA3#200808-201212

77026ATUBE SUB-ASSY, FUEL EVAPORATION, NO.1

main77026-42020iACA30,31;ACA33..G..GCC200511-200812

77026BTUBE SUB-ASSY, FUEL EVAPORATION, NO.1

main77026-42030iACA30,31;ACA33..G..GCC200511-200812

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-42130iACA30,ALA3#,ZSA3#..RHD200812-201212

main77035-42140iACA33..ARL200511-200612

main77035-42141iACA33,GSA33..ARL200701-200808

main77035-42150iACA30,ALA3#,ZSA3#..LHD200812-201212

main77035-42160iACA33..G..GCC200511-200812

77100TANK ASSY, FUEL

main77001-42160iALA30200511-200604

main77001-42161iALA30200605-200801

main77001-42162iALA30200802-200805

main77001-42163iALA30200806-200812

main77001-42200iACA3#200511-200612

main77001-42201iACA30,31;ACA33..G..GCC200701-200812

77101PLUG(FOR FUEL SUB-TANK)

main90105-08158×2iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200511-200808

77131CSUB-TANK, FUEL, NO.1

main77131-52081iACA3#200511-200606

main77131-52082iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200607-200808

77168APLATE, FUEL TANK VENT TUBE SET

main77168-52020iACA33..G..GCC;ACA30,31,ALA30200511-200812

77174SUPPORT, FUEL SUCTION, NO.1

main77174-52050iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200511-200808

main77174-52070iACA30,33,38,GSA33,ZSA3#200808-201212

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-42150iALA3#200812-201212

main77201-42180iACA3#200511-200704

main77201-42181iACA3#,GSA33200704-200802

main77201-42182iACA30,33,38,GSA33,ZSA3#200808-201009

main77201-42183iACA3#,GSA33,ZSA3#201010-201212

77206AGASKET (FOR FUEL TANK SUCTION TUBE)

main77169-52010iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200511-200808

77209DTUBE SUB-ASSY, FUEL TANK MAIN

main77209-42090iACA30,33,38,GSA33,ZSA3#200808-201212

main77209-42150iALA30200811-200812

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-42080iACA30,33,38,GSA33,ZSA3#200808-201212

main77213-42100iALA30200511-200812

77241WCLIP, TUBE JOINT

main77241-33011×2iACA3#,GSA33,ZSA3#; ALA3#201003-201212

main77241-60320iZSA30..LHD..CVFC;ACA30,33,38,GSA33200808-201002

77248AHOLDER, FUEL TANK FILLER PIPE COVER

main77248-20080iACA3#200511-200704

77249HOSE, FUEL EMISSION

main77249-42050iACA30,33,38,GSA33,ZSA3#200808-201212

NO.1

main77249-42060iACA3#200511-200704

NO.2

main77249-42070iACA3#,GSA33200704-200812

NO.2

77269AHOSE, FUEL TANK BREATHER

main77269-42030iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200511-200808

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77277-42070iACA33..G..GCC;ACA30,31,ALA30200511-200812

77285DCLAMP, FUEL TUBE, NO.1

main77285-42100iACA30,33,38200511-200704

77286DCLAMP, FUEL TUBE, NO.2

main77286-42060iACA30,33,38,GSA33200511-200812

77289HOLDER, FUEL TANK PIPE SETTING

main77289-52110iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200511-200808

77289BCLAMP, FUEL TUBE, NO.3

main77289-42020iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200511-200808

NO.1

main77298-42020×2iGSA33200708-200808

NO.2

main77298-42030iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200601-200808

NO.3

main77298-68010×2iACA33..G..GCC;ACA30,31,ALA30200511-200812

NO.2

77290SHIELD ASSY, FUEL TANK FILLER PIPE

main77290-42020iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200511-200808

77295DGROMMET, FUEL TUBE

main77295-42110×3iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200511-200808

77298ACLAMP, FUEL TUBE, NO.4

main77298-30170×2iACA30,31;ACA33..G..GCC200511-200812

NO.1

main77298-42010iALA30200511-200812

main77298-48050×2iGSA33200808-201212

NO.2

main77298-52070×2iACA33..X..GCC;ACA33,38..ARL,GEN200511-200808

NO.2

77299ACLAMP, FUEL TUBE, NO.5

main77299-42010iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200511-200808

77306LEVER SUB-ASSY, FUEL LID LOCK OPEN

main77306-32010iACA33,GSA33..ARL200511-200808

main77306-32020iACA38;ACA33..LHD..X;ACA33..G..GEN200511-200808

77310ACAP ASSY, FUEL TANK

main77300-20020iALA3#200906-201212

main77300-52030iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200511-200808

77316GASKET, FUEL TANK CAP

main77316-52020iACA3#,ALA30200511-200602

main77316-52040iALA30..BTYPE;ACA30,33,38,ALA35,GSA33,ZSA3#200808-201212

77350LID ASSY, FUEL FILLER OPENING

main77350-42070iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200511-200808

main77350-42080iZSA30..RHD;ZSA30..LHD..X;ACA30,ALA3#,ZSA35;ZSA30..LHD..6F..G;ZSA30..LHD..CVFC..G..BTYPE200812-201212

77366SPRING, FUEL FILLER OPENING LID HINGE

main77360-30070iZSA30..LHD..CVFC..G200808-201002

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-12050iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200511-200808

77391RING, FUEL INLET BOX

main77391-12030iACA3#,ALA30200511-200607

main77391-42010iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200608-200808

77601ABAND SUB-ASSY, FUEL TANK, NO.1

main77601-42060iACA33..G..GCC200511-200812

main77601-42070iACA30,ALA3#,ZSA3#200812-201211

77603BBAND SUB-ASSY, FUEL TANK, NO.2 RH

main77603-42010iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200511-200808

77612BBAND, FUEL TANK, NO.2

main77602-42010iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200511-200808

77641APROTECTOR, FUEL TANK, NO.1

main77641-42040iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200511-200808

77652ACUSHION, FUEL TANK, NO.2

main77652-42020iACA30,33,38,GSA33,ZSA3#200808-201212

77653ACUSHION, FUEL TANK, NO.3

main77652-42030iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200511-200808

77681SEAT, FUEL TANK BAND, RH

main77681-42010iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200511-200808

77681ASEAT, FUEL TANK BAND

main77681-21010iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200511-200808

77682SEAT, FUEL TANK BAND, LH

main77681-42010iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200511-200808

77706FILTER SUB-ASSY, CHARCOAL CANISTER

main77706-42020iACA33,38200511-200704

main77706-42030iACA30200511-200704

77707TUBE SUB-ASSY, CHARCOAL CANISTER OUTLET

main77707-42020iACA3#200511-200704

main77707-42030iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200704-200808

77754HOSE, CHARCOAL CANISTER OUTLET, NO.1

main77754-42050iACA3#,GSA33200511-200802

main77754-42070iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200802-200808

77785HARNESS, FUEL PUMP

main77785-42020iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200511-200808

main77785-42050iACA3#,GSA33,ZSA3#201201-201212

8202WIRING & CLAMP

→ Go to FIG 82-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

7744542020CONNECTOR, FUEL TANK VENT, NO.2

main77445-42020

8963928130WIRE, BRAKE CONTROL

main89639-28130

9011906398

main90119-06398

9011906615

main90119-06615

9015950343

main90159-50343

9026906017

main90269-06017

9030108020

main90301-08020

9030111025

main90301-11025

9046046003

main90460-46003

9046707201

main90467-07201

9095904001

main90959-04001

91621J0612

main91621-J0612

91651B0820

main91651-B0820

91673A1025

main91673-A1025

9613251300

main96132-51300

67 parts on this diagram · 7 diagrams in section
