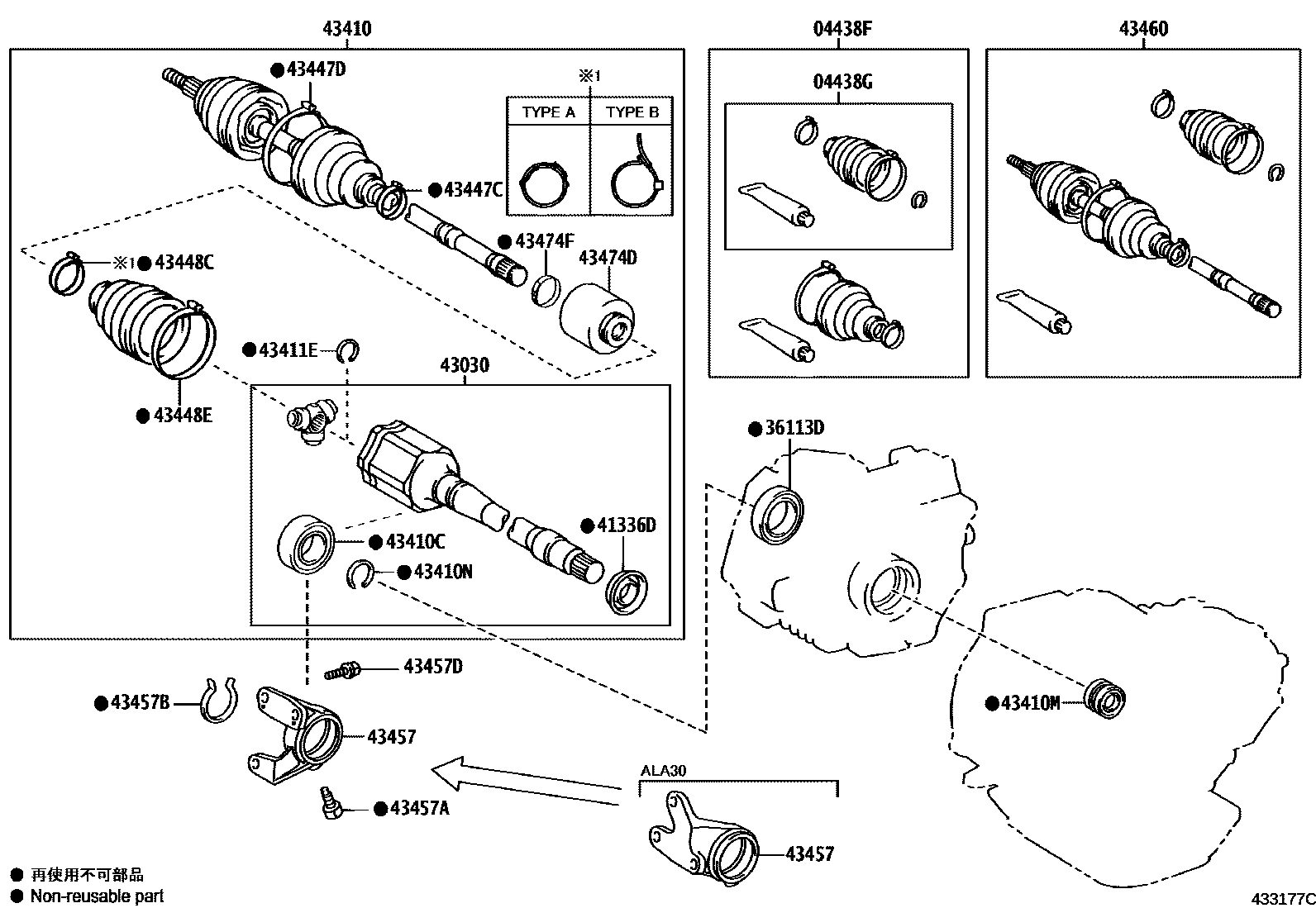

FRONT DRIVE SHAFT

0001 1RH 0002 1RH 0003 1LH

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04427-42010iACA33,GSA33..5F,5FC200511-200808

sub04427-42011

main04427-44040iACA30,31..4FC;ACA33..G..GCC200511-200812

sub04427-44041

main04427-44050iACA38..4FC200511-200808

sub04427-44052

main04427-48170iALA35200908-201212

sub04427-48171

main04428-42120iACA38,ZSA35..MTM200808-201212

sub04428-78030

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-48140iALA35200908-201212

main04438-42180iACA33..G..GCC;ACA30,31,ALA30200511-200812

36113DSEAL, OIL (FOR TRANSFER CASE RH)

main90311-35056iACA30,31,33,ALA30,GSA33200511-200812

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-12020iACA38,ALA35,ZSA35200808-201212

main41336-52020iACA33..X..GCC;ACA33,GSA33..ARL,GEN200511-200808

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43030-42040iALA35200908-201212

main43030-42050iZSA30..CVFC200812-201212

main43030-42060iACA30,33,ZSA30..MTM200808-201212

main43030-42070iACA30,33,GSA33..ATM200808-201212

main43030-42080iALA30..6F200812-201212

main43030-42100iALA30..6FC200903-201212

main43030-44021iACA38200511-200808

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-42140iACA38..4FC200808-201212

sub43410-42141

main43410-42150iACA38..5F200511-200808

sub43410-42151

main43410-42170iACA33..4FC..X;ACA33..4FC..G..(ARL,GEN)200511-200808

main43410-42190iACA30..5F200511-200812

sub43410-42191

main43410-42200iGSA33200808-201212

sub43410-42201

main43410-42210iALA30..6F200812-201212

sub43410-42211

main43410-42220iZSA35200812-201212

sub43410-42221

main43410-42230iZSA30..CVFC200812-201212

sub43410-42231

main43410-42240iZSA30..6F200812-201212

sub43410-42241

main43410-42250iALA30..6FC200903-201212

sub43410-42251

main43410-42260iALA35200908-201212

sub43410-42261

43410CBEARING (FOR FRONT DRIVE SHAFT)

main90363-36006iACA33..X..GCC;ACA33,GSA33..ARL,GEN200511-200808

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-40030iACA38..5F200511-200808

main90311-40031iACA38..4FC200511-200808

main90311-40036iACA38,ALA35,ZSA35..MTM201102-201212

main90316-28003iZSA30..CVFC200812-201212

main90316-34001iACA30,33,ALA30,GSA33,ZSA30..4FC,5F,5FC,6F,6FC200808-201212

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main90520-33008iACA33..G..GCC;ACA30,31,ALA30200511-200812

main90520-38015iACA38200511-200808

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main43425-28010iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200511-200808

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-42100iACA30,31..4FC;ACA33..G..GCC200511-200812

main42345-42120iACA30,ALA30..MTM200511-200812

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-42090iACA38..4FC;ACA33..4FC..X;ACA33..4FC..G..(ARL,GEN)200511-200808

main42345-42110iACA33,38,GSA33..5F,5FC200511-200808

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-42010iACA30,33,38,ALA3#,GSA33,ZSA3#200808-201212

TYPE A:REFER ILLUST.

main90949-01559iACA33..G..GCC;ACA30,31,ALA30200511-200812

TYPE B:REFER ILLUST.

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-12160iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200511-200808

43457BRACKET, DRIVE SHAFT BEARING

main43457-12060iALA35200908-201212

main43457-42010iACA38..5F200808-201212

main43457-42050iACA30..5F200511-200812

main43457-42060iACA30,31..4FC;ACA33..G..GCC200511-200812

main43457-42070iGSA33200808-201212

main43457-42080iALA30200511-200812

main43457-42090iACA38..4FC200808-201212

main43457-42100iZSA35200812-201212

main43457-42110iZSA30..CVFC200812-201212

main43457-42120iZSA30..6F200812-201212

main43457-42130iALA30..6FC200903-201212

43457ABOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)

main90105-10361×2iACA38200511-200808

*10-1.25PX22-19.5

main90119-10461iACA33..X..GCC;ACA33,GSA33..ARL,GEN200511-200808

*10-1.25PX19.8-8.3

43457BRING, HOLE SNAP (FOR DRIVE SHAFT BEARING BRACKET)

main90521-75002iACA30,33,ALA30,GSA33,ZSA30200808-201212

43457DBOLT(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2)

main90105-10381×3iACA33..G..GCC;ACA30,31,ALA30200511-200812

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43470-49655iACA30,33,38,ALA30,GSA33..5F,5FC,6F,6FC200808-201212

sub43470-49656

main43470-49665iACA3#..4FC200511-200812

sub43470-49666

main43470-49815iZSA35200812-201212

main43470-49835iZSA30..CVFC200812-201212

sub43470-49836

main43470-49845iZSA30..6F200812-201212

sub43470-49846

main43470-80286iALA35200908-201212

43474DDAMPER, FRONT DRIVE SHAFT, RH

main43474-48030iACA33..X..GCC;ACA33,GSA33..ARL,GEN200511-200808

43474FCLAMP (FOR FRONT DRIVE SHAFT DAMPER RH)

main42345-14010iACA30,33,ALA30,GSA33,ZSA30200808-201212

21 parts on this diagram · 3 diagrams in section
