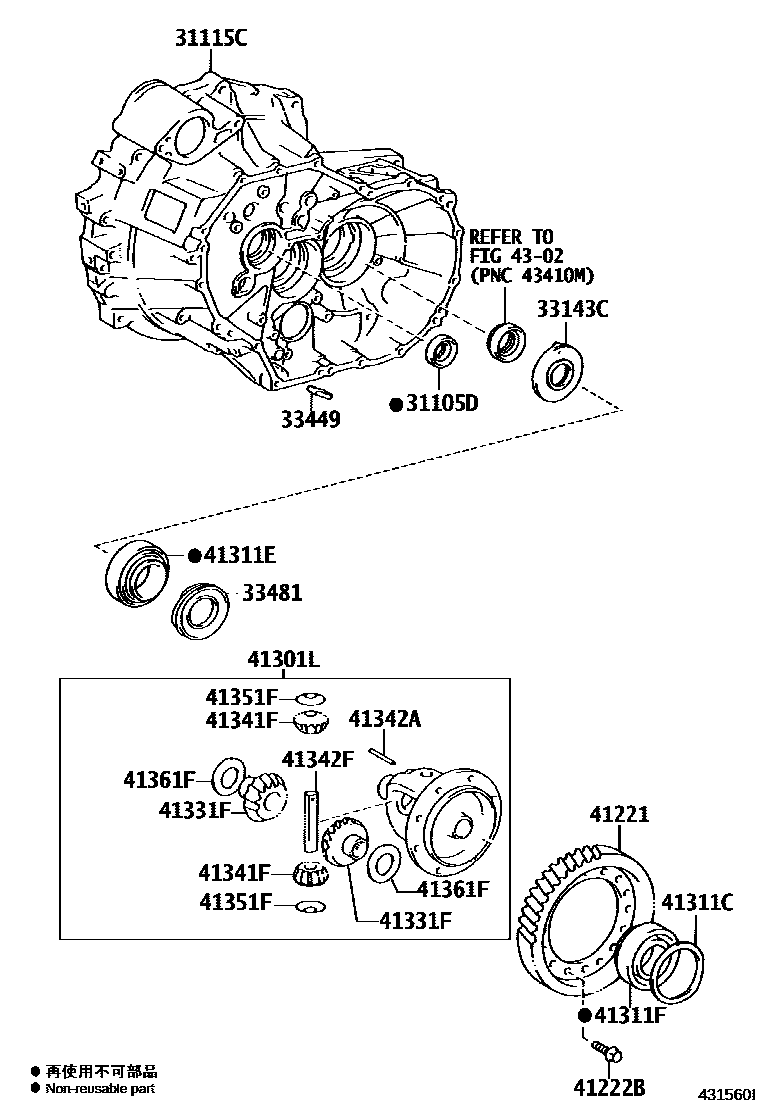

FRONT AXLE HOUSING & DIFFERENTIAL
31105DSEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE)
33143CBAFFLE, FRONT DIFFERENTIAL OIL
33449MAGNET, TRANSMISSION
33481GEAR, SPEEDOMETER DRIVE (MTM)
N=33
41222BBOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)
41311CSHIM (FOR FRONT DIFFERENTIAL CASE REAR)
T=2.00,MARK 0
T=2.05,MARK 1
T=2.10,MARK 2
T=2.15,MARK 3
T=2.20,MARK 4
T=2.25,MARK 5
T=2.30,MARK 6
T=2.35,MARK 7
T=2.40,MARK 8
T=2.45,MARK 9
T=2.50,MARK A
T=2.55,MARK B
T=2.60,MARK C
T=2.65,MARK D
T=2.70,MARK E
T=2.75,MARK F
T=2.80,MARK G
T=2.85,MARK H
T=2.00,MARK 0
T=2.05,MARK 1
T=2.10,MARK 2
T=2.15,MARK 3
T=2.20,MARK 4
T=2.25,MARK 5
T=2.30,MARK 6
T=2.35,MARK 7
T=2.40,MARK 8
T=2.45,MARK 9
T=2.50,MARK A
T=2.55,MARK B
T=2.60,MARK C
T=2.65,MARK D
T=2.70,MARK E
T=2.75,MARK F
T=2.80,MARK G
T=2.85,MARK H
T=2.00,MARK 0
T=2.05,MARK 1
T=2.10,MARK 2
T=2.15,MARK 3
T=2.20,MARK 4
T=2.25,MARK 5
T=2.30,MARK 6
T=2.35,MARK 7
T=2.40,MARK 8
T=2.45,MARK 9
T=2.50,MARK A
T=2.55,MARK B
T=2.60,MARK C
T=2.65,MARK D
T=2.70,MARK E
T=2.75,MARK F
T=2.80,MARK G
T=2.85,MARK H
T=2.05,MARK A
T=2.10,MARK B
T=2.15,MARK C
T=2.20,MARK D
T=2.25,MARK E
T=2.30,MARK F
T=2.35,MARK G
T=2.40,MARK H
T=2.45,MARK J
T=2.50,MARK K
T=2.55,MARK L
T=2.60,MARK M
T=2.65,MARK N
T=2.70,MARK P
T=2.75,MARK Q
T=2.80,MARK R
T=2.85,MARK S
T=2.90,MARK T
T=2.05,MARK A
T=2.10,MARK B
T=2.15,MARK C
T=2.20,MARK D
T=2.25,MARK E
T=2.30,MARK F
T=2.35,MARK G
T=2.40,MARK H
T=2.45,MARK J
T=2.50,MARK K
T=2.55,MARK L
T=2.60,MARK M
T=2.65,MARK N
T=2.70,MARK P
T=2.75,MARK Q
T=2.80,MARK R
T=2.85,MARK S
T=2.90,MARK T
T=1.90,MARK 0
T=1.95,MARK 1
T=2.00,MARK 2
T=2.05,MARK 3
T=2.10,MARK 4
T=2.15,MARK 5
T=2.20,MARK 6
T=2.25,MARK 7
T=2.30,MARK 8
T=2.35,MARK 9
T=2.40,MARK A
T=2.45,MARK B
T=2.50,MARK C
T=2.55,MARK D
T=2.60,MARK E
T=2.65,MARK F
T=2.70,MARK G
T=2.75,MARK H
T=2.80,MARK J
T=2.00,MARK 0
T=2.05,MARK 1
T=2.10,MARK 2
T=2.15,MARK 3
T=2.20,MARK 4
T=2.25,MARK 5
T=2.30,MARK 6
T=2.35,MARK 7
T=2.40,MARK 8
T=2.45,MARK 9
T=2.50,MARK A
T=2.55,MARK B
T=2.60,MARK C
T=2.65,MARK D
T=2.70,MARK E
T=2.75,MARK F
T=2.80,MARK G
T=2.85,MARK H
T=2.025,MARK J
T=2.075,MARK K
T=2.125,MARK L
T=2.175,MARK M
T=2.225,MARK N
T=2.275,MARK P
T=2.325,MARK Q
T=2.375,MARK R
T=2.425,MARK S
T=2.475,MARK T
T=2.525,MARK U
T=2.575,MARK V
T=2.625,MARK W
T=2.675,MARK X
T=2.725,MARK Y
T=2.775,MARK AA
T=2.825,MARK AB
41311EBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FRONT)
41342APIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
41351FWASHER, FRONT DIFFERENTIAL PINION THRUST
41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
T=1.25
T=1.30
T=1.35
T=1.40
T=1.45
T=1.50
T=1.55
T=1.60
T=1.65
T=1.70
T=1.75
T=1.80
T=1.85
T=1.90
T=1.95
T=1.0,MARK 1
T=1.1,MARK 2
T=1.2,MARK 3
T=1.3,MARK 4
T=1.625
T=1.50
T=1.55
T=1.60
T=1.65
T=1.70
T=1.75
T=1.80
T=1.85
T=1.90
T=1.725
T=1.825
4302
19 parts on this diagram · 7 diagrams in section
