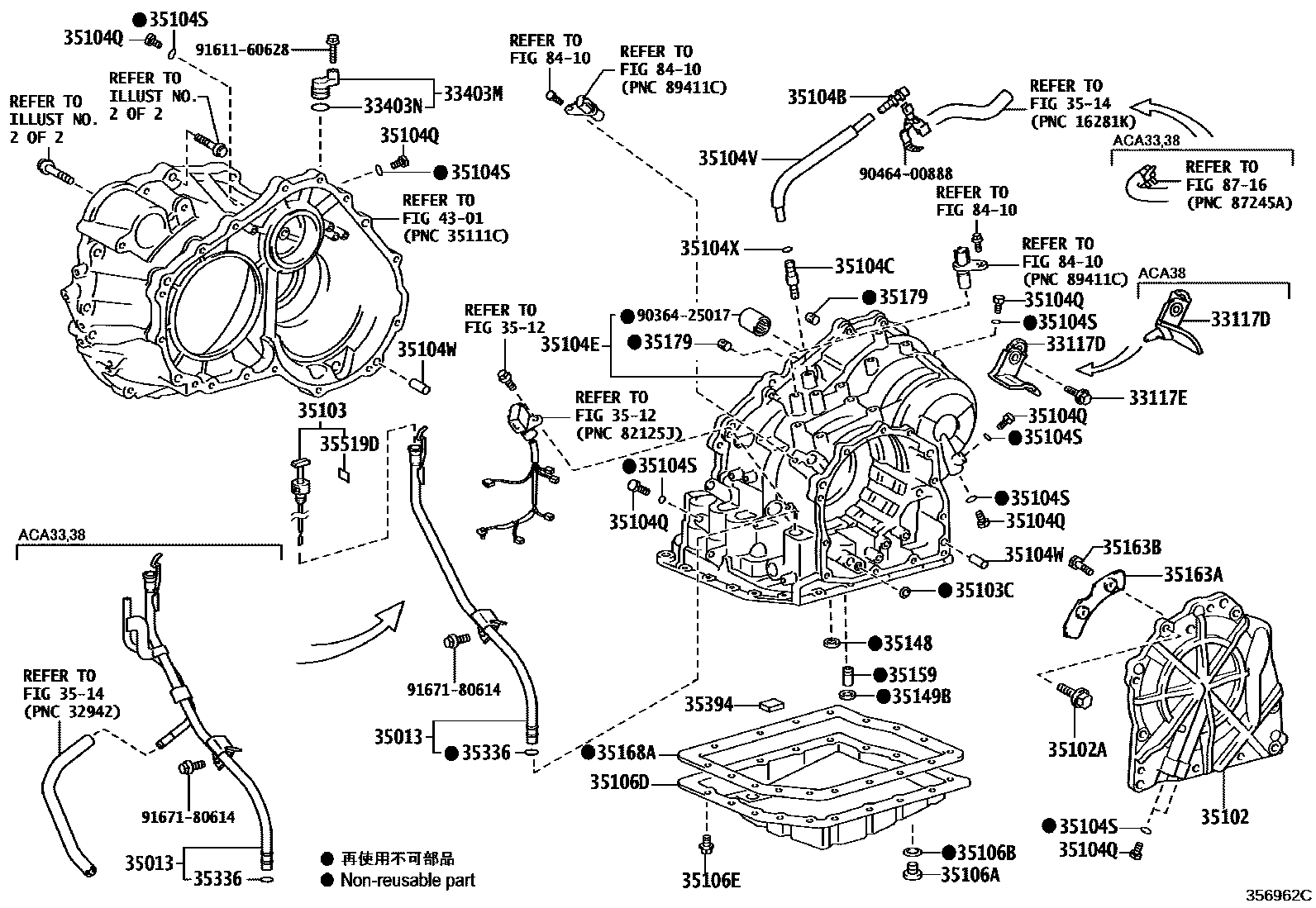

TRANSMISSION CASE & OIL PAN (ATM)

0001 1U140F,U241E 0002 1U151F 0003 1U140F,U241E,U151F 0004 1U660F

33117DPROTECTOR, AUTOMATIC TRANSMISSION CASE

main33117-21010iACA30,33,GSA33..ATM200808-201212

main33117-28020iACA38..4FC200808-201212

33117EBOLT(FOR AUTOMATIC TRANSMISSION CASE PROTECTOR)

main91641-H0820×2iACA30,33,38,GSA33..ATM200808-201212

33403MCOVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE (ATM)

main33403-20230iACA38..4FC200808-201212

main33403-21020iACA30,31..4FC;ACA33..G..GCC200511-200812

main33403-35230iALA30..6FC200903-201212

33403NRING, O (FOR ATM SPEEDOMETER DRIVEN HOLE COVER)

main96711-24018iACA38..4FC200511-200808

main96711-24020iACA30,33,GSA33..ATM200808-201212

main96711-24030iALA30..6FC200903-201212

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-42090iACA30..4FC200812-201212

main35013-42100iACA33,38..4FC200808-201212

main35013-42110iGSA33200808-201212

35102COVER SUB-ASSY, TRANSAXLE REAR

main35102-20060iGSA33200708-200808

main35102-28041iALA30..6FC200903-201212

main35102-42010iACA33..4FC..X;ACA33..4FC..G..(ARL,GEN)200511-200808

main35102-42020iACA38..4FC200808-201212

35102ABOLT (FOR TRANSAXLE REAR COVER SETTING)

main90105-08071×11iACA30,31..4FC;ACA33..G..GCC200511-200812

*8-1.25PX30-25

main90105-08431×2iALA30..6FC200903-201212

*8-1.25PX28-22,NO.1

main91551-00828×12iALA30..6FC200903-201212

*8-1.25PX28-22,NO.2

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-42080iACA30,33..4FC200808-201212

main35103-42090iACA38..4FC200808-201212

main35103-42100iGSA33200808-201205

main35103-42101iGSA33201206-201212

main35103-42110iACA33..G..GCC200612-200812

BEIJING SPEC; CHINA SPEC

35103CRING, O

main90301-10189×2iACA3#..4FC; GSA33201003-201212

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03149iACA33..4FC..X;ACA38,GSA33..ATM;ACA33..4FC..G..(ARL,GEN)200511-200808

35104CPLUG, BREATHER, NO.2 (ATM)

main90930-03157iACA38..4FC;ACA33..4FC..X;ACA33..4FC..G..(ARL,GEN)200511-200808

main90930-03183iGSA33200708-200808

main90930-03187iALA30..6FC200903-201212

35104ECASE SUB-ASSY, AUTOMATIC TRANSAXLE

main35104-28081iACA30,31,33..4FC200511-200704

MARK A011

main35104-28082iACA30,31..4FC;ACA33..G..GCC200704-200812

MARK A012

main35104-28083iACA30,33..4FC201003-201212

main35104-28091iACA38..4FC200511-200603

MARK A011

main35104-28092iACA38..4FC200603-200808

MARK A012

main35104-28093iACA38..4FC201003-201212

main35104-33042iGSA33200808-201003

main35104-33043iGSA33201003-201212

main35141-33071iALA30..6FC200903-201203

35104QPLUG, NO.1 (FOR TRANSAXLE CASE)

main90341-08001×10iGSA33200708-200808

35104SRING, O (FOR TRANSAXLE CASE PLUG NO.1)

main90301-06196×10iACA30,33,38..4FC; GSA33200808-201212

35104VHOSE (FOR BREATHER PLUG)

main35121-20090iALA30..6FC200903-201212

main35121-21020iACA30,33,38,GSA33..ATM200808-201212

35104WPIN, STRAIGHT (FOR TRANSAXLE CASE)

main90250-10017×5iALA30..6FC200903-201212

main90250-10034×4iACA33..4FC..X;ACA38,GSA33..ATM;ACA33..4FC..G..(ARL,GEN)200511-200808

35104XRING, O (FOR BREATHER PLUG)

main90301-06005iACA33..4FC..X;ACA38,GSA33..ATM;ACA33..4FC..G..(ARL,GEN)200511-200808

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-12034iALA30..6FC200903-201212

main90341-18016iACA30,31..4FC;ACA33..G..GCC200511-200812

35106BGASKET, DRAIN PLUG (ATM)

main90430-12008iALA30..6FC200903-201212

main90430-18008iACA33..4FC..X;ACA38,GSA33..ATM;ACA33..4FC..G..(ARL,GEN)200511-200808

35106DPAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL

main35106-28090iACA30,31..4FC;ACA33..G..GCC200511-200812

main35106-33040iGSA33200708-200808

main35106-33061iALA30..6FC200903-201212

35106EBOLT (FOR TRANSAXLE OIL PAN)

main90119-06173×18iACA33..4FC..X;ACA38,GSA33..ATM;ACA33..4FC..G..(ARL,GEN)200511-200808

3512VALVE BODY & OIL STRAINER (ATM)

→ Go to FIG 35-12

3514OIL COOLER & TUBE (ATM)

→ Go to FIG 35-14

35148GASKET, GOVERNOR APPLY, NO.1

main35145-21010×3iACA30,33,38..4FC; GSA33200808-201003

main35145-33010×2iALA30..6FC200903-201212

35149BGASKET, TRANSAXLE CASE 2ND BRAKE

main35149-21010iACA33..4FC..X;ACA38,GSA33..ATM;ACA33..4FC..G..(ARL,GEN)200511-200808

35159GASKET, BRAKE DRUM

main35159-21010iACA33..4FC..X;ACA38,GSA33..ATM;ACA33..4FC..G..(ARL,GEN)200511-200808

35163APLATE, TRANSAXLE REAR COVER

main35163-28010iACA33,38..4FC200511-200808

main35163-33010iALA30..6FC200903-201212

35163BSCREW, HEX LOBULAR(FOR TRANSAXLE REAR COVER PLATE)

main90148-60055×2iACA33,38..4FC200511-200808

35168AGASKET, AUTOMATIC TRANSAXLE OIL PAN

main35168-21010iACA3#,GSA33..ATM200511-200709

main35168-21011iACA30,31..4FC;ACA33..G..GCC200709-200812

main35168-33080iALA30..6FC200903-201212

35179GASKET, OVERDRIVE BRAKE

main35179-32010×2iACA30,33,38,GSA33..ATM200808-201003

main90301-06008×2iACA3#,GSA33..ATM201003-201212

35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90301-09173iACA30,31..4FC;ACA33..G..GCC200511-200812

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011×2iALA30..6FC200903-201212

main35394-48010×3iACA30,33,38..4FC; GSA33200808-201212

35519DLABEL, AUTOMATIC TRANSMISSION INFORMATION

main35519-41010iACA30,33,38,GSA33..ATM200808-201212

main35519-28041iACA33..G..GCC200612-200812

BEIJING SPEC; CHINA SPEC

4301FRONT AXLE HOUSING & DIFFERENTIAL

→ Go to FIG 43-01

8410OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

→ Go to FIG 84-10

8716HEATING & AIR CONDITIONING - WATER PIPING

→ Go to FIG 87-16

9036425017

main90364-25017

9046400888

main90464-00888

9161160628

main91611-60628

9167180614

main91671-80614

40 parts on this diagram · 4 diagrams in section
