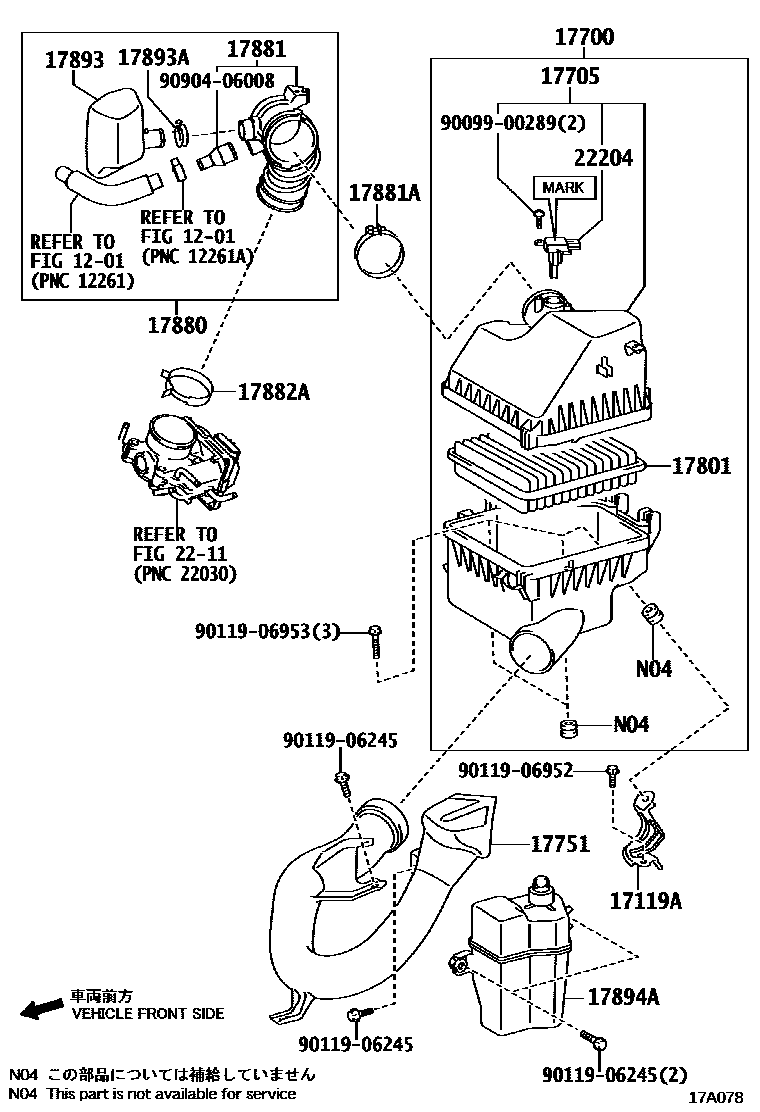

AIR CLEANER

0001 1 0002 1 0003 1 0004 1 0005 1

1201VENTILATION HOSE

→ Go to FIG 12-01

17119ABRACKET, AIR CLEANER

main17119-26030i2AD#..ALA30200511-200812

main17119-28070i1AZFE,2AZFE..ACA30,33,38; 2GRFE..GSA33200808-201212

17700CLEANER ASSY, AIR

main17700-26330i2AD#..ALA30200511-200812

main17700-26360i2AD#..ALA3#200812-201212

main17700-28300i1AZFE,2AZFE..ACA3#200511-200611

main17700-28301i2AZFE..ACA33..X..GCC;2AZFE..ACA33,38..ARL,GEN200612-200808

main17700-28302i1AZFE,2AZFE..ACA3#201108-201212

main17700-31622i2GRFE..GSA33200808-201107

main17700-31623i2GRFE..GSA33201108-201212

main17700-37240i3ZRFAE..ZSA3#200812-201103

main17700-37241i3ZRFAE..ZSA3#201104-201212

17705CAP SUB-ASSY, AIR CLEANER

main17705-26110i2AD#..ALA30200511-200812

main17705-26140i2AD#..ALA3#200812-201212

main17705-28250i1AZFE,2AZFE..ACA3#200511-200611

main17705-28251i1AZFE,2AZFE..ACA30,33,38200808-201107

main17705-28252i1AZFE,2AZFE..ACA3#201108-201212

main17705-31171i2GRFE..GSA33200708-200808

main17705-31172i2GRFE..GSA33201108-201212

main17705-37140i3ZRFAE..ZSA3#200812-201103

main17705-37141i3ZRFAE..ZSA3#201104-201212

17751INLET, AIR CLEANER, NO.1

main17751-26060i2ADFHV..ALA30..6FC200903-201212

main17751-28060i1AZFE,2AZFE,2AD#..ACA30,33,38,ALA3#..4FC,5F,6F200808-201212

main17751-31210i2GRFE..GSA33200708-200808

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-21050i3ZRFAE..ZSA3#200812-201212

main17801-26010i2AD#..ALA3#200812-201212

main17801-31120i1AZFE,2AZFE..ACA30,33,38; 2GRFE..GSA33200808-201212

17880HOSE ASSY, AIR CLEANER

main17880-28240i2AZFE..ACA33..G..GCC;1AZFE,2AZFE..ACA30,31200511-200812

main17880-37110i3ZRFAE..ZSA3#200812-201212

17881HOSE, AIR CLEANER, NO.1

main17880-26020i2AD#..ALA30200511-200812

main17880-26040i2AD#..ALA3#200812-201212

main17880-31090i2GRFE..GSA33200708-200808

main17881-28260i2AZFE..ACA33..X..GCC;2AZFE..ACA33,38..ARL,GEN200511-200808

main17881-37130i3ZRFAE..ZSA3#200812-201212

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10780i3ZRFAE..ZSA3#200812-201212

main96111-10850i1AZFE,2AZFE,2AD#..ACA30,33,38,ALA3#200808-201212

main96111-10900×2i2GRFE..GSA33200808-201212

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main90466-62002i3ZRFAE..ZSA3#200812-201212

17893RESONATOR, INTAKE AIR

main17893-28060i2AZFE..ACA33..G..GCC;1AZFE,2AZFE..ACA30,31200511-200812

17893ACLAMP, HOSE

main96111-10380i2AZFE..ACA33..X..GCC;2AZFE..ACA33,38..ARL,GEN200511-200808

17894ARESONATOR, INTAKE AIR, NO.2

main17894-28110i2AZFE..ACA33..X..GCC;2AZFE..ACA33,38..ARL,GEN200511-200808

2211FUEL INJECTION SYSTEM

→ Go to FIG 22-11

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-0H010i1AZFE,2AZFE..ACA3#; 2GRFE..GSA33201108-201212

MARK 22204-0H010

main22204-0P010i1AZFE,2AZFE..ACA3#; 2GRFE..GSA33201108-201212

MARK 22204-0P010

main22204-0T010i1AZFE,2AZFE..ACA3#; 2GRFE..GSA33201108-201212

MARK 22204-0T010

main22204-0T040i3ZRFAE..ZSA3#201104-201212

MARK 22204-0T040

main22204-0V010i3ZRFAE..ZSA3#201104-201212

MARK 22204-0V010

main22204-0V020i3ZRFAE..ZSA3#201104-201212

MARK 22204-0V020

main22204-26010i2AD#..ALA3#200812-201212

main22204-28010i3ZRFAE..ZSA3#201104-201212

MARK 22204-28010

main22204-30010i2AD#..ALA30200511-200812

main22204-31010i1AZFE,2AZFE..ACA3#200511-200611

main22204-31020i1AZFE,2AZFE..ACA3#; 2GRFE..GSA33201108-201212

MARK 22204-31020

main22204-37010i3ZRFAE..ZSA3#200812-201103

9009900289

main90099-00289

9011906245

main90119-06245

9011906952

main90119-06952

9011906953

main90119-06953

9090406008

main90904-06008

20 parts on this diagram · 5 diagrams in section
