CENTER STOP LAMP

81570LAMP ASSY, CENTER STOP

main81570-49015iACA2#,CLA2#,ZCA2#200005-200307

main81570-49015-B0iACA2#,CLA2#,ZCA2#200307

GRAY,TRIM1#

sub81570-49015

81570BBULB (FOR CENTER STOP LAMP)

main90981-13043iACA2#,CLA2#,ZCA2#200005-200307

12V 21W

81977COVER, CENTER STOP LAMP

main81977-42030-B0iACA21..ARL200005-200307

BLUE GRAY,TRIM1#

sub81977-42030

main81977-42030-B0iACA21..ARL200005-200307

BLUE GRAY,TRIM14,15

sub81977-42030

main81977-42030-B1iACA2#,CLA2#,ZCA2#200307-200511

NEW GRAY,TRIM1#

sub81977-42030

81977ACLIP (FOR CENTER STOP LAMP)

main90468-05060iACA2#,CLA2#,ZCA2#200005-200307

8157742050

main81577-42050

9015950105

main90159-50105

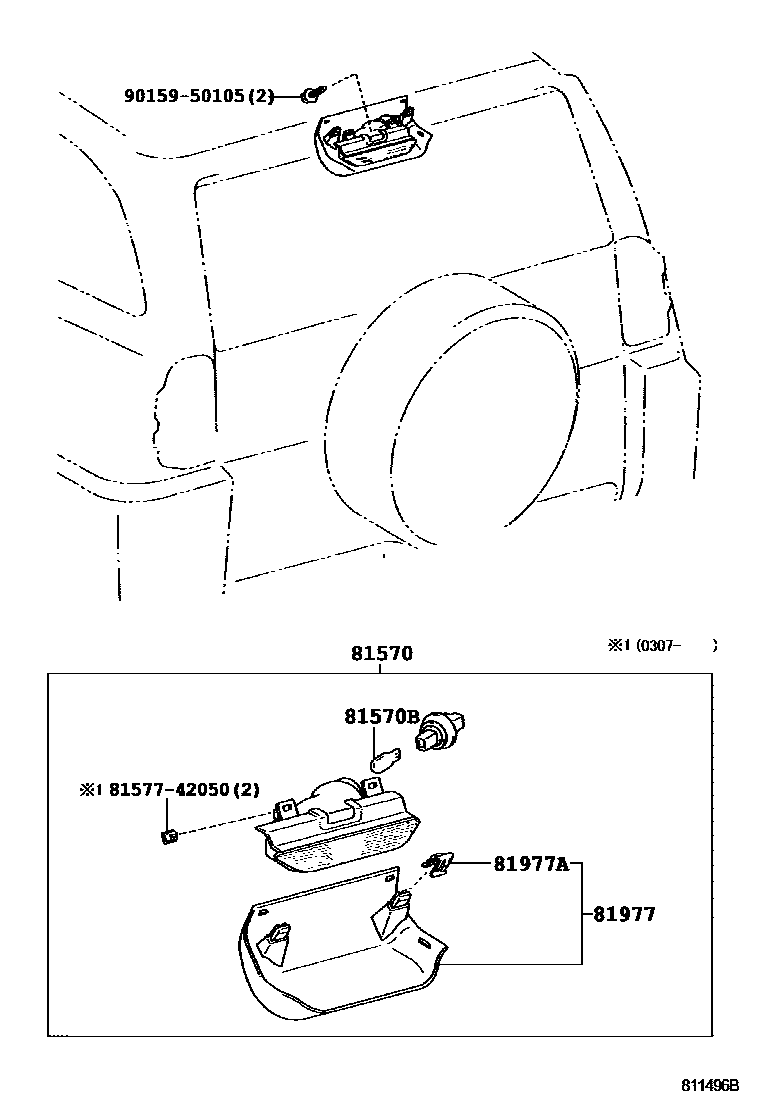

6 parts on this diagram · 1 diagram in section
