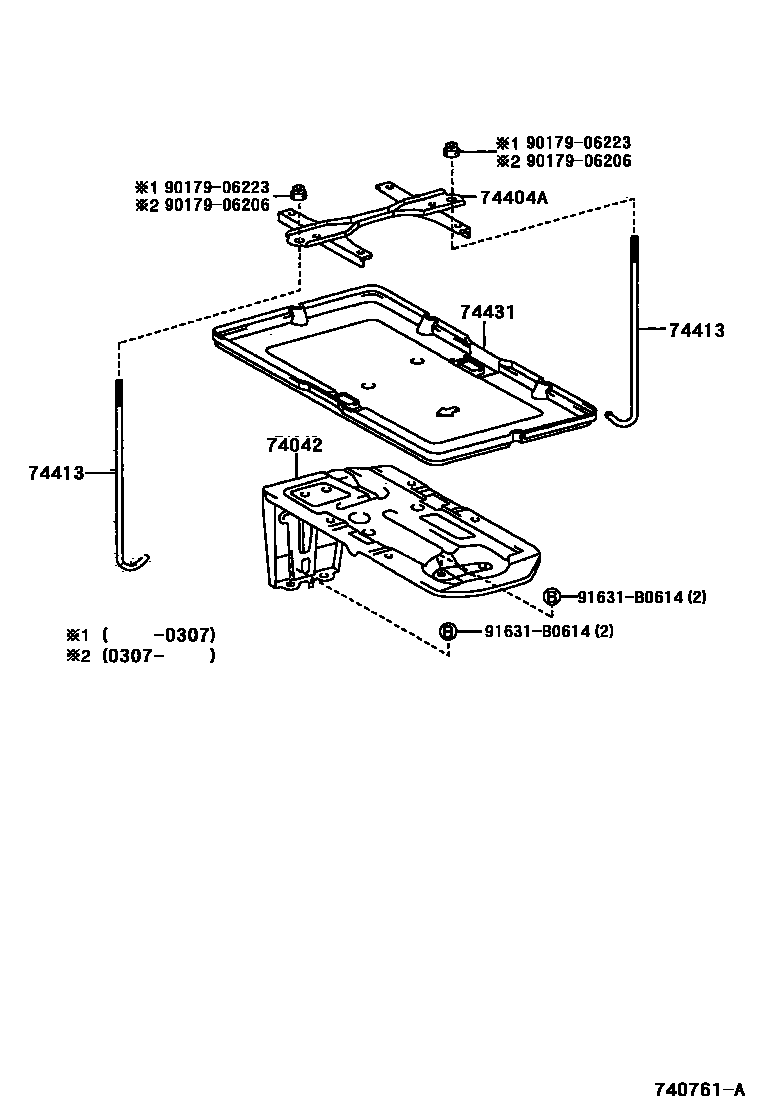

BATTERY CARRIER

0001 1 0002 1 0003 1

74042BRACKET SUB-ASSY, BATTERY

main74401-42010iACA2#,ZCA2#..LHD200005-200307

main74401-42020iACA20,21..LHD..EUR200501

BATTERY=55D23L

main74401-42020iCLA2#..LHD200105-200307

main74402-42010iACA2#,ZCA2#..RHD200005-200307

main74402-42020iACA22,23,CLA2#..RHD200105-200307

74404ACLAMP SUB-ASSY, BATTERY

main74404-42020iACA20,21,ZCA2#200005-200307

main74404-42030iCLA2#200105-200307

main74404-42030iACA20,21..LHD..EUR200501

BATTERY=55D23L

74413BOLT, BATTERY CLAMP

main74451-10060iACA2#,ZCA2#200005-200307

main74451-10060iACA20,21..LHD..EUR200501

BATTERY=55D23L

74431TRAY, BATTERY

main74431-42060iACA2#,CLA2#,ZCA2#200005-200307

9017906206

main90179-06206

9017906223

main90179-06223

91631B0614

main91631-B0614

7 parts on this diagram · 3 diagrams in section
