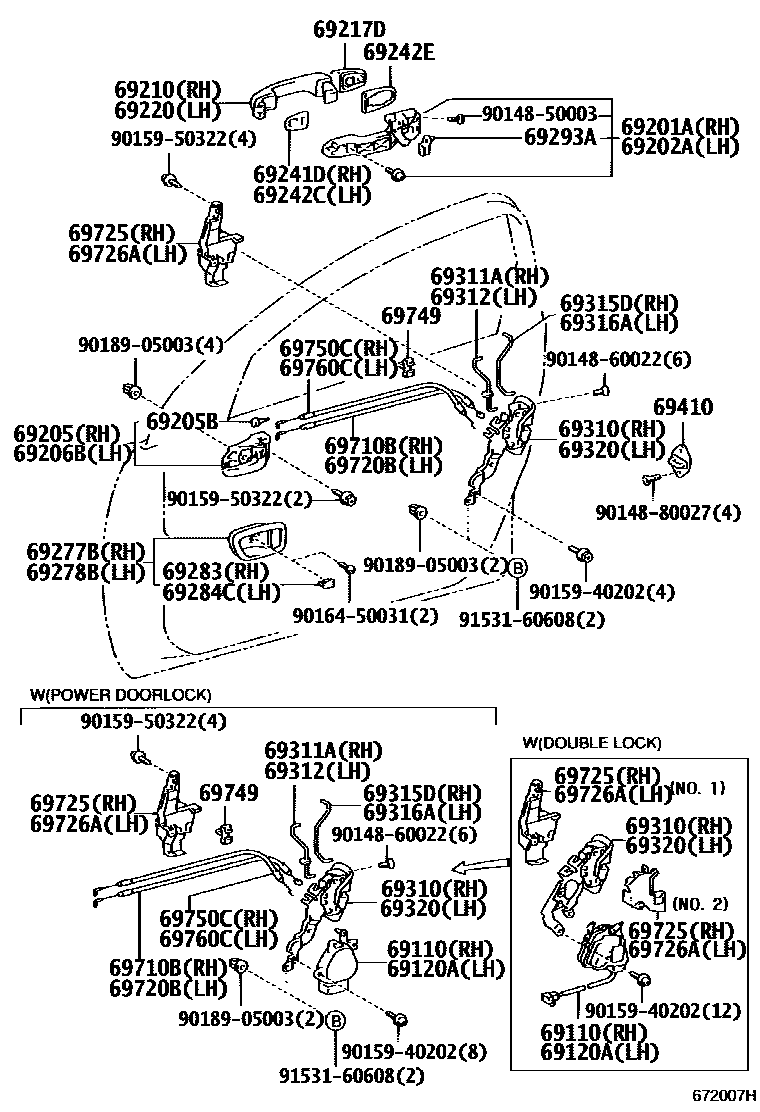

FRONT DOOR LOCK & HANDLE
69110ACTUATOR ASSY, FRONT DOOR LOCK, RH
W(DOUBLE-LOCK)
W(DOUBLE-LOCK)
69120AACTUATOR ASSY, FRONT DOOR LOCK, LH
W(DOUBLE-LOCK)
W(DOUBLE-LOCK)
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
NO PAINT REQ.
69217DCOVER, FRONT DOOR OUTSIDE HANDLE
BLACK MATERIAL
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
NO PAINT REQ.
69241DPAD, FRONT DOOR OUTSIDE HANDLE, RH
69242CPAD, FRONT DOOR OUTSIDE HANDLE, LH
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH
69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH
69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH
69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH
69293ASNAP, FRONT DOOR OUTSIDE HANDLE
RH
LH
69310LOCK ASSY, FRONT DOOR, RH
W(MANUAL DOOR LOCK)
W(MANUAL DOOR LOCK)
W(POWER DOOR LOCK)
W(POWER DOOR LOCK)
W(DOUBLE-LOCK)
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69315DLINK, FRONT DOOR OUTSIDE LOCKING, RH
69316ALINK, FRONT DOOR OUTSIDE LOCKING, LH
69320LOCK ASSY, FRONT DOOR, LH
W(MANUAL DOOR LOCK)
W(MANUAL DOOR LOCK)
W(DOUBLE-LOCK)
W(POWER DOOR LOCK)
W(POWER DOOR LOCK)
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
69725PROTECTOR, FRONT DOOR INSIDE LOCKING LINK, RH
NO.1:REFER ILLUST.
W(DOUBLE-LOCK)
W(DOUBLE-LOCK),NO.2
NO.2:REFER ILLUST.
NO.1:REFER ILLUST.
W(DOUBLE-LOCK)
69726APROTECTER, FRONT DOOR INSIDE LOCKING LINK, LH
NO.1:REFER ILLUST.
W(DOUBLE-LOCK)
NO.2:REFER ILLUST.
W(DOUBLE-LOCK),NO.2
W(DOUBLE-LOCK)
NO.1:REFER ILLUST.
69749CLAMP, FRONT DOOR LOCK LINK
69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
W(DOUBLE-LOCK)
W(DOUBLE-LOCK)
69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH
W(DOUBLE-LOCK)
W(DOUBLE-LOCK)
9014850003
main90148-50003
9014860022
main90148-60022
9014880027
main90148-80027
9015940202
main90159-40202
9015950322
main90159-50322
9016450031
main90164-50031
9018905003
main90189-05003
9153160608
main91531-60608
40 parts on this diagram · 1 diagram in section
