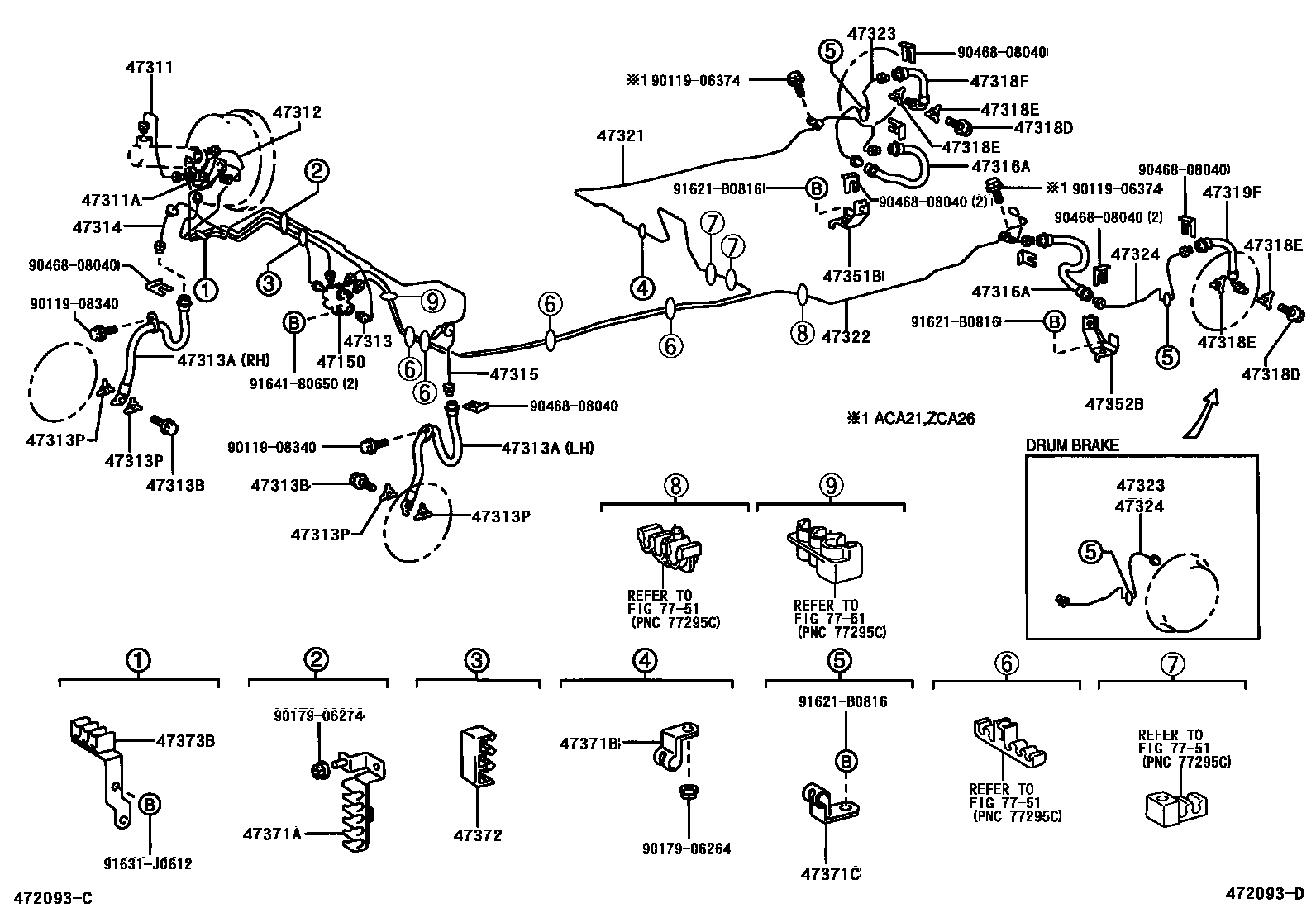

BRAKE TUBE & CLAMP
47150VALVE ASSY, PROPORTIONING
47311TUBE, FRONT BRAKE, NO.1
47311AWAY(FOR FRONT BRAKE TUBE)
47312TUBE, FRONT BRAKE, NO.2
W(ABS)
W(ABS)
W(ABS)
W(ABS)
W(ABS)
W(ABS)
W(ABS)
W(VSC)
W(VSC)
W(VSC)
W(VSC)
W(VSC)
47313TUBE, FRONT BRAKE, NO.3
W(ABS)
W(ABS)
W(ABS)
W(ABS)
W(ABS)
W(ABS)
W(ABS)
W(VSC)
W(VSC)
W(ABS)
W(ABS)
W(ABS)
W(VSC)
W(VSC)
W(VSC)
47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)
RH
LH
47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)
47313PGASKET(FOR FRONT FLEXIBLE HOSE)
47314TUBE, FRONT BRAKE, NO.4
W(ABS)
W(VSC)
W(ABS)
47315TUBE, FRONT BRAKE, NO.5
W(ABS)
W(ABS)
W(VSC)
W(ABS)
W(ABS)
W(ABS)
W(ABS)
W(VSC)
W(VSC)
W(VSC)
47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
47318TUBE, FRONT BRAKE, NO.8
W(ABS)
W(ABS)
W(VSC)
W(VSC)
W(VSC)
W(VSC)
47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)
47318EGASKET(FOR REAR FLEXIBLE HOSE)
47318FHOSE, FLEXIBLE(FOR REAR RH)
47319FHOSE, FLEXIBLE(FOR REAR LH)
47321TUBE, REAR BRAKE, NO.1
47322TUBE, REAR BRAKE, NO.2
47323TUBE, REAR BRAKE, NO.3
W(REAR DRUM BRAKE)
W(REAR DRUM BRAKE)
47324TUBE, REAR BRAKE, NO.4
W(REAR DRUM BRAKE)
W(REAR DRUM BRAKE)
47351BBRACKET, FLEXIBLE HOSE, NO.1
47352BBRACKET, FLEXIBLE HOSE, NO.2
47371ACLAMP, BRAKE TUBE, NO.1
47371BCLAMP, BRAKE TUBE, NO.6
47371CCLAMP, BRAKE TUBE, NO.7
47372CLAMP, BRAKE TUBE, NO.2
W(ABS)
47373BCLAMP, BRAKE TUBE, NO.3
W(ABS) OR W(VSC)
W(ABS)
7751FUEL TANK & TUBE
9011906374
main90119-06374
9011908340
main90119-08340
9017906264
main90179-06264
9017906274
main90179-06274
9046808040
main90468-08040
91621B0816
main91621-B0816
91631J0612
main91631-J0612
9164180650
main91641-80650
36 parts on this diagram · 15 diagrams in section
