ENGINE OVERHAUL GASKET KIT

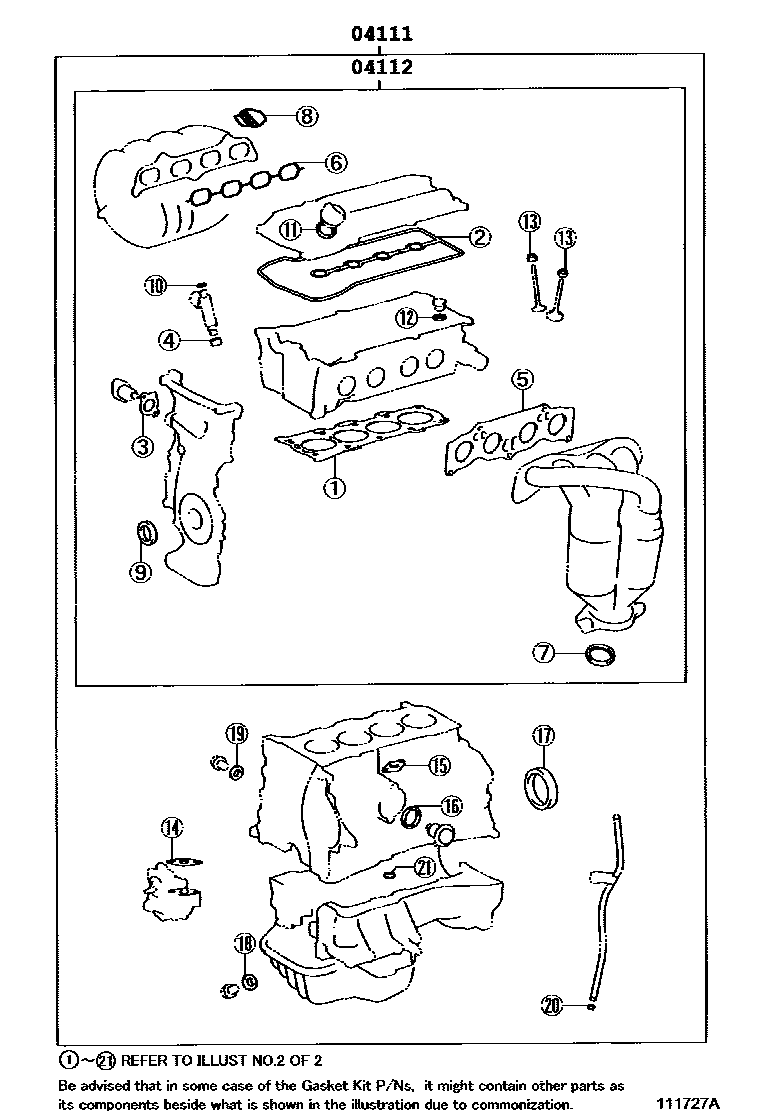

Parts diagram

04111GASKET KIT, ENGINE OVERHAUL

main04111-22110i200005-200206

main04111-22111i200206-200302

main04111-22112i200307-200404

main04111-22650i200404

main04111-27080i200105-200301

main04111-27081i200307-200404

main04111-27160i200404

main04111-28070i200005-200104

main04111-28071i200104-200211

main04111-28072i200211-200212

main04111-28073i200212-200304

main04111-28074i200304-200307

main04111-28180i200307-200404

main04111-28590i200404-200508

main04111-28591i200508-200511

main04111-28600i200404-200508

main04111-28601i200508-200511

04112GASKET KIT, ENGINE VALVE GRIND

main04112-22110i200005-200206

main04112-22111i200206-200302

main04112-22112i200302-200307

main04112-22590i200404

main04112-27070i200105-200301

main04112-27071i200301-200307

main04112-27150i200404

main04112-28070i200005-200104

main04112-28071i200104-200211

main04112-28072i200211-200212

main04112-28073i200212-200304

main04112-28074i200304-200307

main04112-28180i200307-200404

main04112-28250i200404-200508

main04112-28251i200508-200511

main04112-28520i200404-200508

main04112-28521i200508-200511

2 parts on this diagram · 12 diagrams in section
