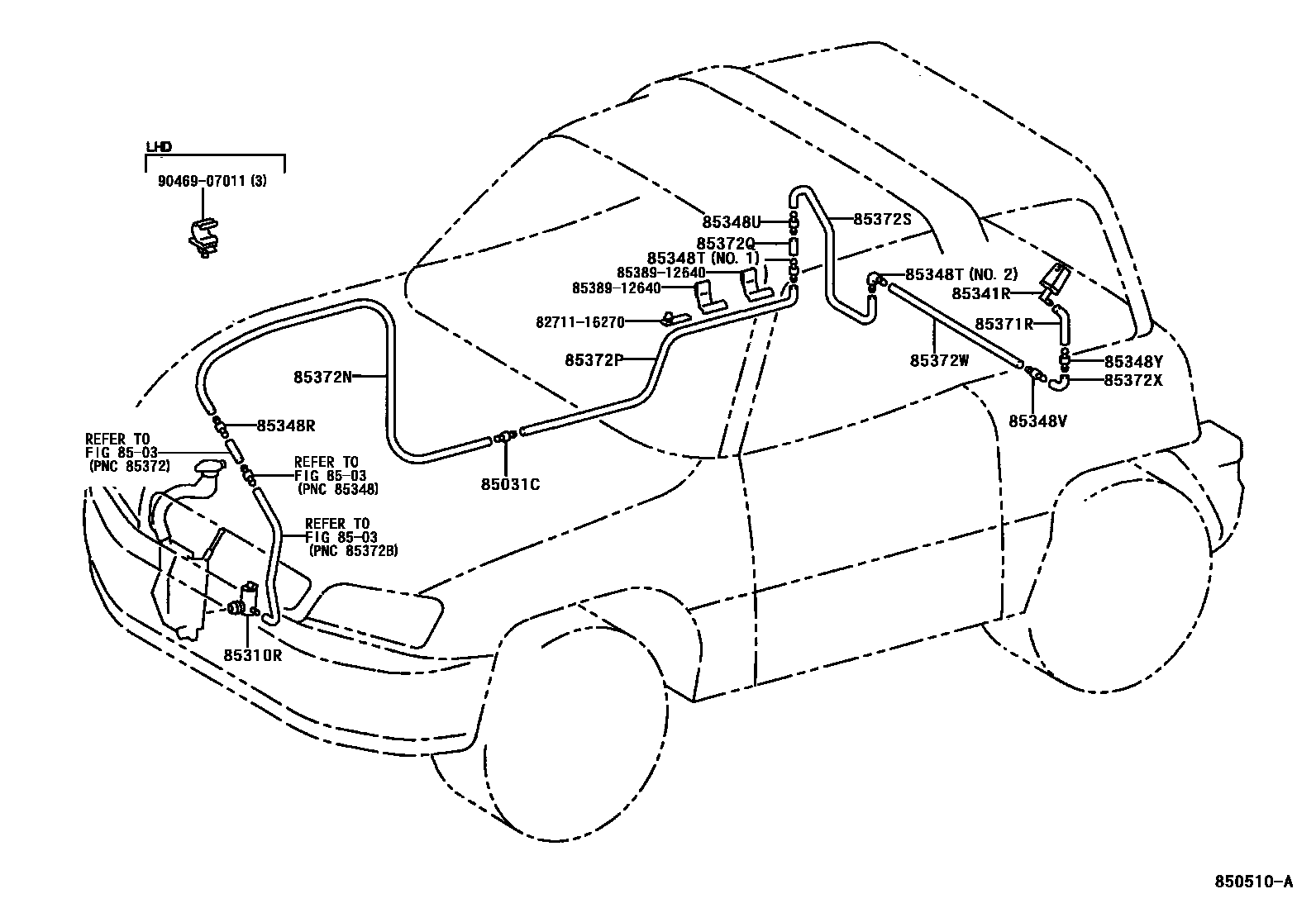

8503WINDSHIELD WASHER

→ Go to FIG 85-03

85031CVALVE SUB-ASSY, WASHER

main85031-90A00i199404

85310RMOTOR ASSY, REAR WASHER

main85310-20190i199404-199608

main85310-20210i199404-199608

main85330-10280i199608-200008

main85330-33020i199608-200005

85341RNOZZLE ASSY, WASHER

main85395-42010i199404

85348RJOINT, REAR WASHER HOSE, NO.1

main85349-89122i199404

85348TJOINT, REAR WASHER HOSE, NO.2

main85349-89122i199404-199608

NO.1

main85355-20200i199404-199608

NO.2

85348UJOINT, REAR WASHER HOSE, NO.3

main85349-89122i199404

85348VJOINT, REAR WASHER HOSE, NO.4

main85349-89122i199404

85348YJOINT, REAR WASHER HOSE, NO.5

main85349-89122i199404

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main90446-07001i199404-199409

L=1800(*H,L=350)

85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1

main90446-07001i199404

L=1800(*H,L=1770)

85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2

main90099-33299i199709

L=1000(*H,L=40)

main90446-07001i199608

L=1800(*H,L=1730),NO.1

85372QHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3

main90099-33080i199404

L=1450(*H,L=40)

85372SHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4

main90446-07001i199404

L=1800(*H,L=790)

85372WHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.5

main90446-07001i199404

L=1800(*H,L=630)

85372XHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.6

main90099-33080i199404

8271116270WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16270

8538912640PACKING, WINDSHIELD WASHER HOSE, NO.1

main85389-12640

9046907011

main90469-07011
