FRONT SPRING & SHOCK ABSORBER

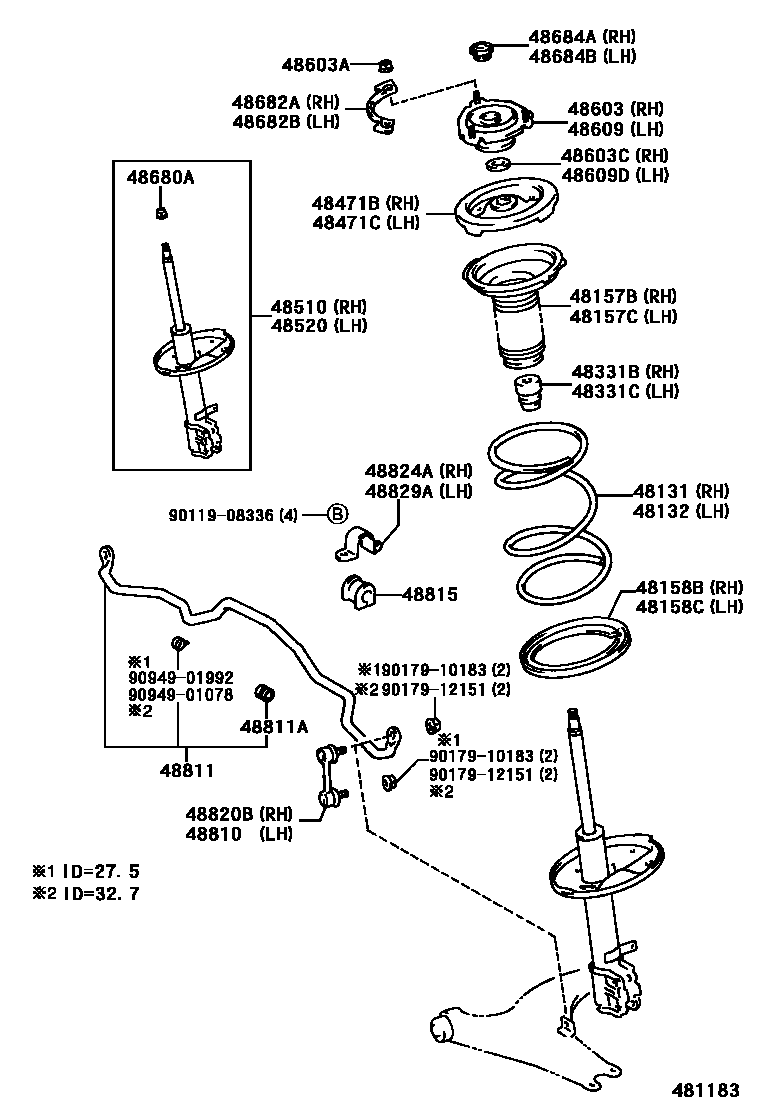

Parts diagram
48131SPRING, FRONT COIL, RH
main48131-42010i199404-199608
sub48131-42011
main48131-42020i199404-199608
W(AIR CONDITIONER)
sub48131-42021
main48131-42020i199608-199906
sub48131-42021
main48131-42020i199608-199709
W(MANUAL AIR CONDITIONER)
sub48131-42021
main48131-42021i199906
main48131-42030i199404-199709
W(AIR CONDITIONER)
sub48131-42031
main48131-42030i199608-199709
W(MANUAL AIR CONDITIONER)
sub48131-42031
main48131-42031i199709
W(MANUAL AIR CONDITIONER)
main48131-42040i199608-199709
W(MANUAL AIR CONDITIONER)
sub48131-42041
main48131-42040i199504-199709
sub48131-42041
main48131-42050i199709-199906
sub48131-42051
main48131-42050i199608-199709
W(MANUAL AIR CONDITIONER)
sub48131-42051
main48131-42050i199504-199709
W(AIR CONDITIONER)
sub48131-42051
main48131-42051i199906
W(AIR CONDITIONER)
main48131-42060i199709-199906
W(MANUAL AIR CONDITIONER)
sub48131-42061
main48131-42061i199906
W(MANUAL AIR CONDITIONER)
main48131-42090i199608-199709
W(AIR CONDITIONER)
sub48131-42091
main48131-42091i199712
W(AIR CONDITIONER)
main48131-42091i199709
W(MANUAL AIR CONDITIONER)
main48131-42101i199608-199610
W(235/60R16 TIRE)
sub48131-42102
main48131-42102i199610-199709
W(235/60R16 TIRE)
main48131-42111i199608-199610
W(235/60R16 TIRE)
sub48131-42112
main48131-42112i199610-199709
W(235/60R16 TIRE)
sub48131-42113
main48131-42113i199709-199808
W(235/60R16 TIRE)
main48131-42123i199709
W(235/60R16 TIRE & MANUAL AIR CONDITIONER)
main48131-42130i199709-199906
W(MANUAL AIR CONDITIONER)
sub48131-42131
main48131-42131i199906
W(MANUAL AIR CONDITIONER)
main48131-42160i199608-199610
W(235/60R16 TIRE)
sub48131-42161
main48131-42161i199610-199709
W(235/60R16 TIRE)
sub48131-42172
main48131-42170i199608-199610
W(235/60R16 TIRE)
sub48131-42171
main48131-42171i199610-199709
W(235/60R16 TIRE)
sub48131-42172
main48131-42172i199709-199808
W(235/60R16 TIRE) OR W(235/60R16 TIRE & MANUAL AIR CONDITIONER)
main48131-42182i199709-199808
W(235/60R16 TIRE & MANUAL AIR CONDITIONER)
48132SPRING, FRONT COIL, LH
main48131-42010i199404-199608
sub48131-42011
main48131-42020i199608-199906
sub48131-42021
main48131-42020i199608-199709
W(MANUAL AIR CONDITIONER)
sub48131-42021
main48131-42020i199404-199608
W(AIR CONDITIONER)
sub48131-42021
main48131-42021i199906
main48131-42030i199404-199709
W(AIR CONDITIONER)
sub48131-42031
main48131-42030i199608-199709
W(MANUAL AIR CONDITIONER)
sub48131-42031
main48131-42031i199709
W(MANUAL AIR CONDITIONER)
main48131-42040i199504-199709
sub48131-42041
main48131-42040i199608-199709
W(MANUAL AIR CONDITIONER)
sub48131-42041
main48131-42050i199504-199709
W(AIR CONDITIONER)
sub48131-42051
main48131-42050i199709-199906
sub48131-42051
main48131-42050i199608-199709
W(MANUAL AIR CONDITIONER)
sub48131-42051
main48131-42051i199906
W(AIR CONDITIONER)
main48131-42060i199709-199906
W(MANUAL AIR CONDITIONER)
sub48131-42061
main48131-42061i199906
W(MANUAL AIR CONDITIONER)
main48131-42090i199608-199709
W(AIR CONDITIONER)
sub48131-42091
main48131-42091i199709
W(MANUAL AIR CONDITIONER)
main48131-42101i199608-199610
W(235/60R16 TIRE)
sub48131-42102
main48131-42102i199610-199709
W(235/60R16 TIRE)
main48131-42111i199608-199610
W(235/60R16 TIRE)
sub48131-42112
main48131-42112i199610-199709
W(235/60R16 TIRE)
sub48131-42113
main48131-42113i199709-199808
W(235/60R16 TIRE)
main48131-42123i199709
W(235/60R16 TIRE & MANUAL AIR CONDITIONER)
main48131-42130i199709-199906
W(MANUAL AIR CONDITIONER)
sub48131-42131
main48131-42131i199906
W(MANUAL AIR CONDITIONER)
main48131-42160i199608-199610
W(235/60R16 TIRE)
sub48131-42161
main48131-42161i199610-199709
W(235/60R16 TIRE)
sub48131-42172
main48131-42170i199608-199610
W(235/60R16 TIRE)
sub48131-42171
main48131-42171i199610-199709
W(235/60R16 TIRE)
sub48131-42172
main48131-42172i199709-199808
W(235/60R16 TIRE) OR W(235/60R16 TIRE & MANUAL AIR CONDITIONER)
main48131-42182i199709-199808
W(235/60R16 TIRE & MANUAL AIR CONDITIONER)
48157BINSULATOR, FRONT COIL SPRING, UPPER RH
main48157-42010i199404
48157CINSULATOR, FRONT COIL SPRING, UPPER LH
main48157-42010i199404
48158BINSULATOR, FRONT COIL SPRING, LOWER RH
main48158-32030i199404
48158CINSULATOR, FRONT COIL SPRING, LOWER LH
main48158-32030i199404
48331BBUMPER, FRONT SPRING, RH
main48331-42010i199404
48331CBUMPER, FRONT SPRING, LH
main48331-42010i199404
48471BSEAT, FRONT COIL SPRING, UPPER RH
main48044-32030i199404
48471CSEAT, FRONT COIL SPRING, UPPER LH
main48044-32030i199404
48510ABSORBER ASSY, SHOCK, FRONT RH
main48510-49015i199404-199801
sub48510-49016
main48510-49016i199801
sub48510-49017
main48510-49025i199504-199801
sub48510-49026
main48510-49025i199608-199801
W(235/60R16 TIRE)
sub48510-49026
main48510-49026i199801
sub48510-49017
main48510-49026i199801-199808
W(235/60R16 TIRE)
sub48510-49017
main48510-49065i199608-199801
W(235/60R16 TIRE)
sub48510-49066
main48510-49066i199801-199808
W(235/60R16 TIRE)
sub48510-49067
48520ABSORBER ASSY, SHOCK, FRONT LH
main48520-49015i199404-199801
sub48520-49016
main48520-49016i199801
sub48520-49027
main48520-49025i199504-199801
sub48520-49026
main48520-49025i199608-199801
W(235/60R16 TIRE)
sub48520-49026
main48520-49026i199801
sub48520-49027
main48520-49026i199801-199808
W(235/60R16 TIRE)
sub48520-49027
main48520-49065i199608-199801
W(235/60R16 TIRE)
sub48520-49066
main48520-49066i199801-199808
W(235/60R16 TIRE)
sub48520-49067
48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH
main48609-42010i199404
48603ANUT(FOR FRONT SUSPENSION SUPPORT)
main90179-10095i199404
48603CSEAL, DUST(FOR FRONT SUSPENSION SUPPORT RH)
main90303-22049i199404
48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH
main48609-42010i199404
48609DSEAL, DUST(FOR FRONT SUSPENSION SUPPORT LH)
main90303-22049i199404
48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)
main94184-61401i199404
48682ASUPPORT, FRONT SUSPENSION, NO.2 RH
main48682-42010i199404
48682BSUPPORT, FRONT SUSPENSION, NO.2 LH
main48682-42010i199404
48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH
main48684-32010i199404
48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH
main48684-32010i199404
48810LINK ASSY, FRONT STABILIZER, LH
main48820-33010i199404-200008
main48820-42010i199608-200008
W(235/60R16 TIRE);W(215/70R16 TIRE)
main48820-42010i199504-199608
48811BAR, STABILIZER, FRONT
main48811-42010i199404-199709
sub48811-42011
main48811-42011i199709-200008
main48811-42020i199608-199709
W(235/60R16 TIRE)
sub48811-42021
main48811-42020i199504-199709
sub48811-42021
main48811-42021i199712-200008
W(235/60R16 TIRE)
main48811-42021i199709-200008
48811ABUSH(FOR FRONT STABILIZER BAR)
main90385-22003i199404
main90386-24001i199504
main90386-24001i199608-199808
W(235/60R16 TIRE)
48815BUSH, FRONT STABILIZER BAR, NO.1
main48815-42010i199404-200008
main48815-42020i199504-200008
main48815-42020i199608-200008
W(235/60R16 TIRE)
48820BLINK ASSY, FRONT STABILIZER, RH
main48820-33010i199404-200008
main48820-42010i199504-200008
W(235/60R16 TIRE);W(215/70R16 TIRE)
48824ABRACKET, FRONT STABILIZER, NO.1 RH
main48824-30050i199608-199808
W(235/60R16 TIRE)
main48824-30050i199504
main48824-42010i199404
48829ABRACKET, FRONT STABILIZER, NO.1 LH
main48824-30050i199504-199808
W(235/60R16 TIRE)
main48824-42010i199404
9011908336
main90119-08336
9017910183
main90179-10183
9017912151
main90179-12151
9094901078
main90949-01078
9094901992
main90949-01992

34 parts on this diagram · 1 diagram in section
