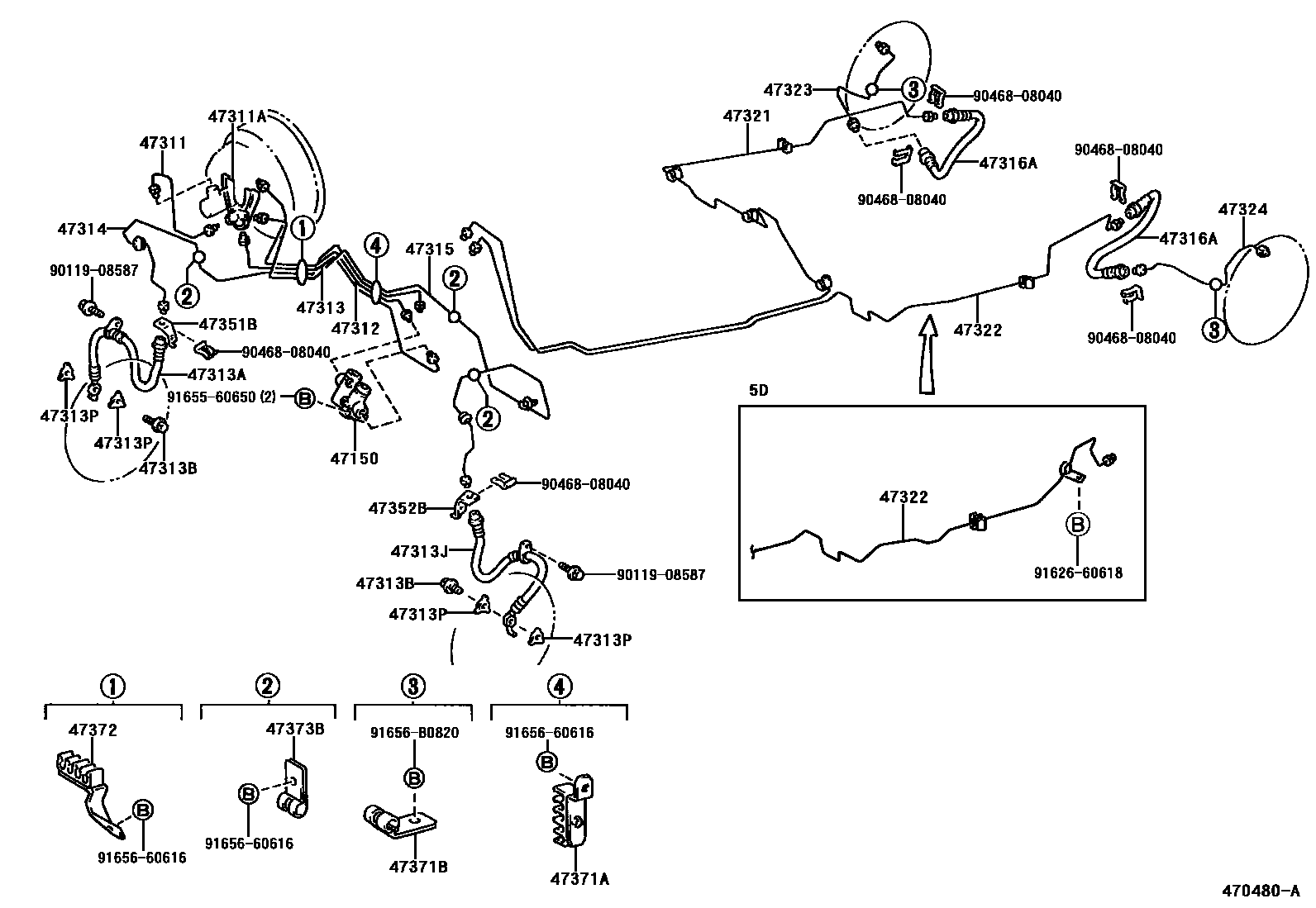

BRAKE TUBE & CLAMP
47150VALVE ASSY, PROPORTIONING
W(ABS)
W(ABS)
W(ABS)
W(ABS)
W(ABS)
GERMANY SPEC
47311TUBE, FRONT BRAKE, NO.1
W(ABS)
47311AWAY(FOR FRONT BRAKE TUBE)
47312TUBE, FRONT BRAKE, NO.2
W(ABS)
W(ABS)
W(ABS)
W(ABS)
W(ABS)
47313TUBE, FRONT BRAKE, NO.3
W(ABS)
W(ABS)
W(ABS)
W(ABS)
47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)
47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)
47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)
47313PGASKET(FOR FRONT FLEXIBLE HOSE)
47314TUBE, FRONT BRAKE, NO.4
W(ABS)
W(ABS)
47315TUBE, FRONT BRAKE, NO.5
W(ABS)
W(ABS)
W(ABS)
W(ABS)
W(ABS)
47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
47321TUBE, REAR BRAKE, NO.1
47322TUBE, REAR BRAKE, NO.2
47351BBRACKET, FLEXIBLE HOSE, NO.1
47352BBRACKET, FLEXIBLE HOSE, NO.2
47371ACLAMP, BRAKE TUBE, NO.1
W(ABS)
W(ABS)
47371BCLAMP, BRAKE TUBE, NO.6
47372CLAMP, BRAKE TUBE, NO.2
W(ABS)
W(ABS)
W(ABS)
W(ABS)
47373BCLAMP, BRAKE TUBE, NO.3
W(ABS)
W(ABS)
W(ABS)
9011908587
main90119-08587
9046808040
main90468-08040
9162660618
main91626-60618
9165560650
main91655-60650
9165660616
main91656-60616
91656B0820
main91656-B0820
28 parts on this diagram · 10 diagrams in section
