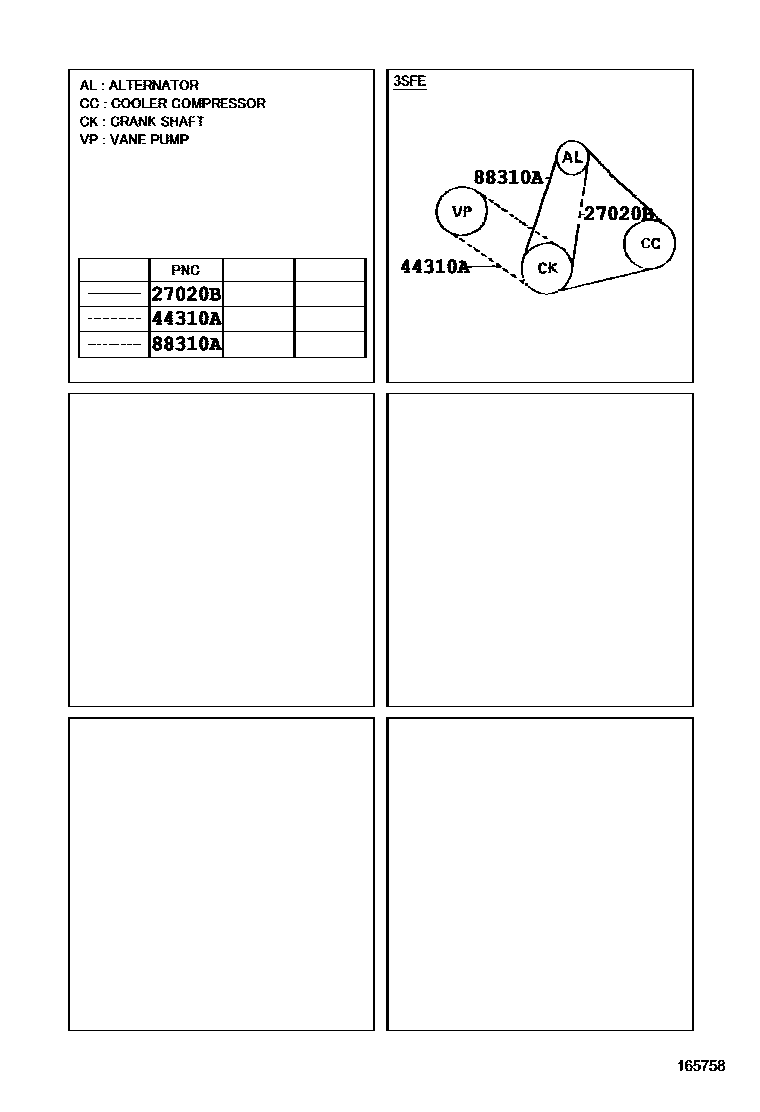

V-BELT

27020BBELT, V(FOR ALTERNATOR)

main90916-02355i3SFE..SXA1#199404

44310ABELT, V(FOR VANE PUMP)

main99363-30760iSXA1#199803

L=760

main99363-70760iSXA10199404-199504

main99363-80760iSXA1#199504-199803

L=760

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main90080-91099iSXA1#..EUR,GCC,GEN199701-199709

L=1110,GOOD YEAR

main99365-31090iSXA1#199709

L=1090,MITSUBOSHI

main99365-81110iSXA1#..GCC,GEN;SXA1#..LHD..EUR; SXA1#..RHD..(ARL,EUR)199612-199701

L=1110; L=1110,BANDO

main99365-91090iSXA1#199709

L=1090,BANDO

3 parts on this diagram · 1 diagram in section
