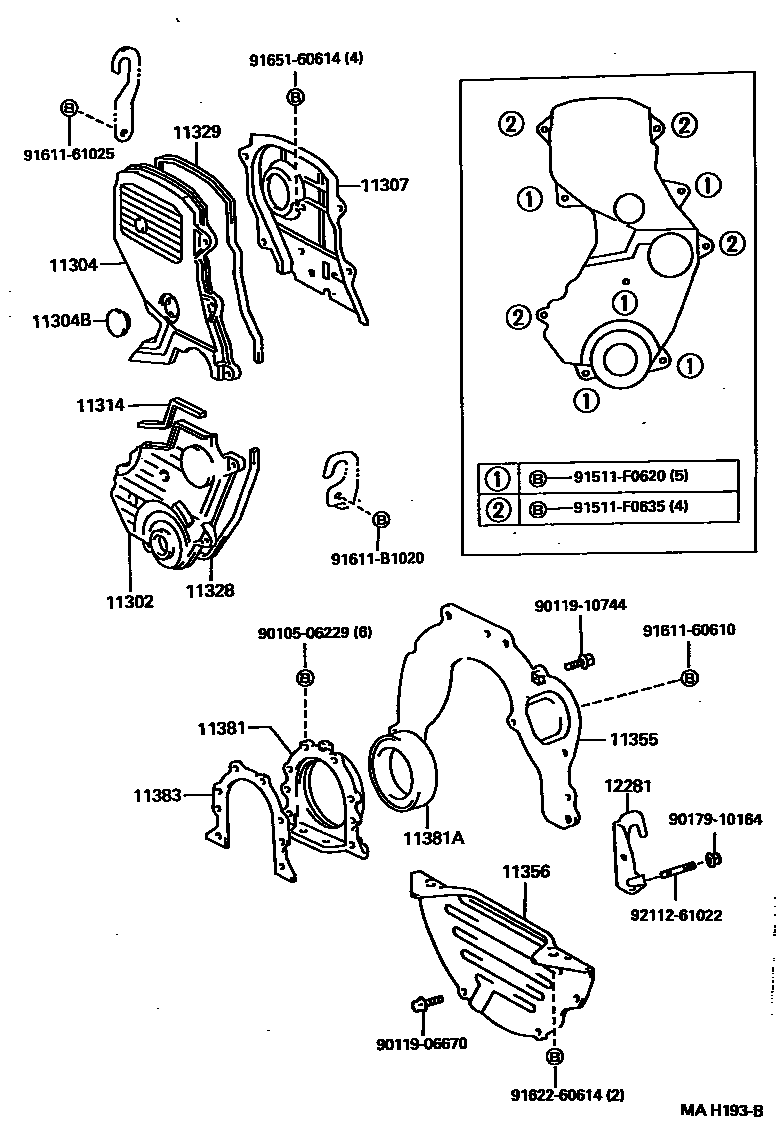

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11302-74030i3SFE..SXA1#199404-199608

main11302-74040i3SFE..SXA1#199608

11304COVER, TIMING CHAIN OR BELT, NO.2

main11303-74040i3SFE..SXA1#199404-199608

main11303-74050i3SFE..SXA1#199608

11304BPLUG, SEMI CIRCULAR(FOR CHAIN COVER NO.2)

main90950-01489i3SFE..SXA1#199404

OD=33

11307COVER, SUB-ASSY, TIMING BELT, NO.3

main11304-74030i3SFE..SXA1#199404-199608

main11304-74040i3SFE..SXA1#..ARL199608

main11304-74060i3SFE..SXA1#..EUR,GCC,GEN199608

11314GASKET, TIMING CHAIN NO.2 COVER

main11319-74020i3SFE..SXA1#199404-199608

main11319-74030i3SFE..SXA1#199608

11328GASKET, TIMING GEAR OR CHAIN COVER

main11328-74040i3SFE..SXA1#199404-199608

main11328-74060i3SFE..SXA1#199608

11329GASKET, TIMING GEAR REAR COVER

main11329-74070i3SFE..SXA1#199404-199608

main11329-74080i3SFE..SXA1#199608

11355PLATE, REAR END

main11355-74040i3SFE..SXA1#199404

11356PLATE, REAR END, NO.2

main11356-74030i3SFE..SXA1#199404

11381RETAINER, ENGINE REAR OIL SEAL

main11381-63012i3SFE..SXA1#199404

11381ASEAL, ENGINE REAR OIL

main90311-85006i3SFE..SXA1#199404-199801

main90311-85009i3SFE..SXA1#199801

11383GASKET, ENGINE REAR OIL SEAL RETAINER

main11383-74021i3SFE..SXA1#199404

12281HANGER, ENGINE, NO.1

main12281-74060i3SFE..SXA1#199408-199709

9010506229

main90105-06229

9011906670

main90119-06670

9011910744

main90119-10744

9017910164

main90179-10164

91511F0620

main91511-F0620

91511F0635

main91511-F0635

9161160610

main91611-60610

9161161025

main91611-61025

91611B1020

main91611-B1020

9162260614

main91622-60614

9165160614

main91651-60614

9211261022

main92112-61022

25 parts on this diagram · 2 diagrams in section
