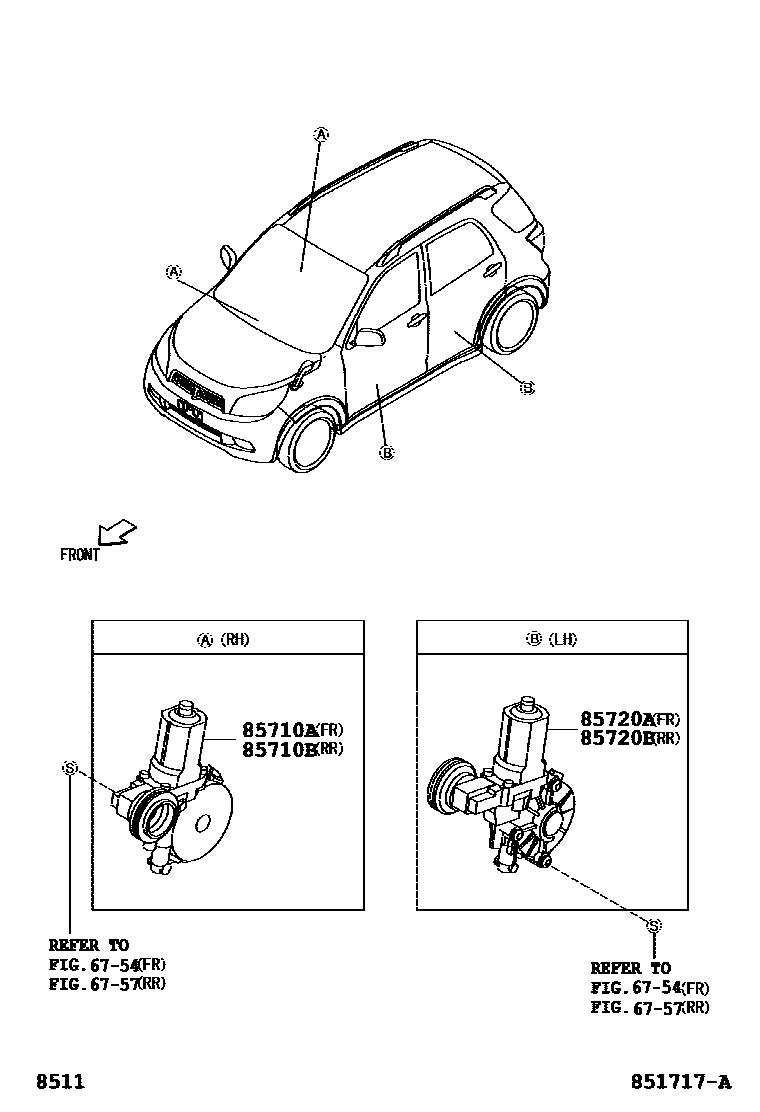

DOOR MOTOR & DOOR SOLENOID

6754FRONT DOOR WINDOW REGULATOR & HINGE

→ Go to FIG 67-54

6757REAR DOOR WINDOW REGULATOR & HINGE

→ Go to FIG 67-57

85710AMOTOR ASSY, POWER WINDOW REGULATOR, FRONT RH

main85710-B2040iJ200200811-200911

main85710-B2041iJ200,210201605

85710BMOTOR ASSY, POWER WINDOW REGULATOR, REAR RH

main85710-B2040iJ200200811-200911

main85710-B2041iJ200,210201605

85720AMOTOR ASSY, POWER WINDOW REGULATOR, FRONT LH

main85720-B2030iJ200200811-200911

main85720-B2031iJ200,210201605

85720BMOTOR ASSY, POWER WINDOW REGULATOR, REAR LH

main85720-B2030iJ200200811-200911

main85720-B2031iJ200,210201605

6 parts on this diagram · 1 diagram in section
