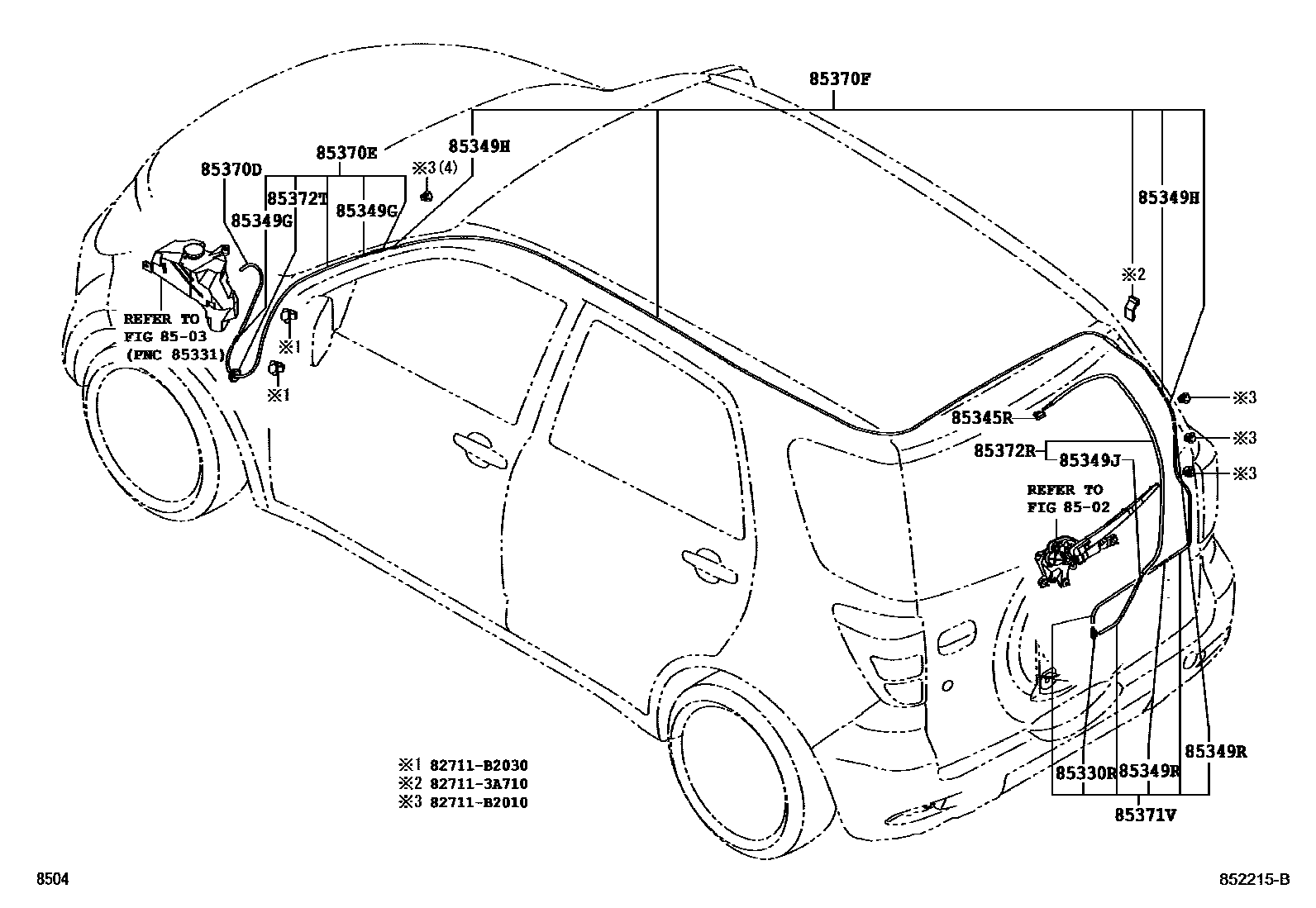

REAR WASHER

8502REAR WIPER

→ Go to FIG 85-02

8503WINDSHIELD WASHER

→ Go to FIG 85-03

85330RJAR ASSY, REAR WASHER

main85355-97203iJ200200811-200911

85345RNOZZLE, REAR WASHER

main85391-B4010iJ200200811-200911

85349GJOINT, REAR WASHER HOSE, NO.2

main85349-87201×2iJ200200811-200911

85349HJOINT, REAR WASHER HOSE, NO.3

main85349-87201×2iJ200200811-200911

85349JJOINT, REAR WASHER HOSE, NO.4

main85349-87201iJ200200811-200911

85349RJOINT, REAR WASHER HOSE, NO.5

main85349-87201×2iJ200200811-200911

85370DHOSE ASSY, REAR WASHER, NO.1

main85370-B4050iJ200200811-200911

85370EHOSE ASSY, REAR WASHER, NO.2

main85370-B4060iJ200200811-200911

85370FHOSE ASSY, REAR WASHER, NO.3

main85370-B4070iJ200200811-200911

85371VHOSE, REAR WASHER (FROM JOINT TO JOINT)

main85370-B4080iJ200200811-200911

85372RHOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)

main85370-B4090iJ200200811-200911

85372TGROMMET, WASHER

main90044-80126iJ200200811-200911

827113A710WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-3A710

82711B2010WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-B2010

82711B2030WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-B2030

17 parts on this diagram · 1 diagram in section
