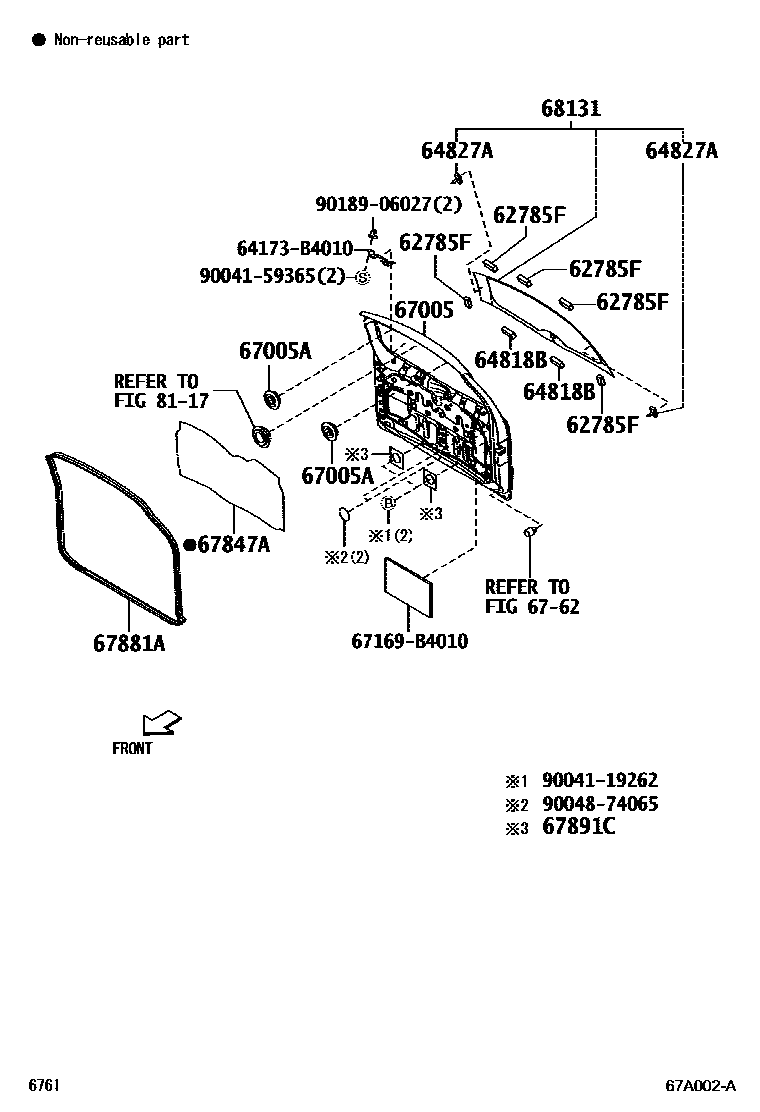

BACK DOOR PANEL & GLASS
62785FSPACER, BACK DOOR GLASS
64818BSPACER, BACK DOOR GLASS, NO.1
64827ACLIP, BACK WINDOW GLASS, RH
67005PANEL SUB-ASSY, BACK DOOR
DESTINATION PACKAGE(ALL)-CHILE&REAR SPOILER-WITH
67005APLUG, HOLE(FOR BACK DOOR PANEL)
GRAY,S28 ,T23 ,W23,FOR SPOILER 22(HOLE)
DESTINATION PACKAGE(ALL)-CHILE&HI-G PACKAGE,ZAICHAKU BLACK DUMMYCOLOR,S33,FOR SPOILER 22(HOLE); ZAICHAKU BLACK DUMMYCOLOR,S33,FOR SPOILER 22(HOLE)
6762BACK DOOR LOCK & HINGE
67847ACOVER, BACK DOOR SERVICE HOLE
67891CSEAL, BACK DOOR
68131GLASS, BACK DOOR
T=3.1,GREEN
T=3.1,GREEN,REAR SIDE GLASS-PRIVATE
8117CENTER STOP LAMP
64173B4010PANEL,REAR FLOOR END PLATE
main64173-B4010
67169B4010LINING, DOOR OUTSIDE PANEL REINFORCEMENT
main67169-B4010
9004119262
main90041-19262
9004159365
main90041-59365
9004874065
main90048-74065
9018906027
main90189-06027
17 parts on this diagram · 4 diagrams in section
